Dini Argeo DGT4X Technical Manual

61
Optimized layout for A4 print.
inputs
output
an.out
13
12
14
Cts.st.
11
ser
10
s.1 on0.000
s.1 off
s.2 on
s.2 off
TECH_MAN_ENG_DGT4X
LEGEND:
Indicates repeated pressing of
the key.
Parameter visible only
under certain conditions.
Parameter or menu subject
to approval.
Default value of the parameter.

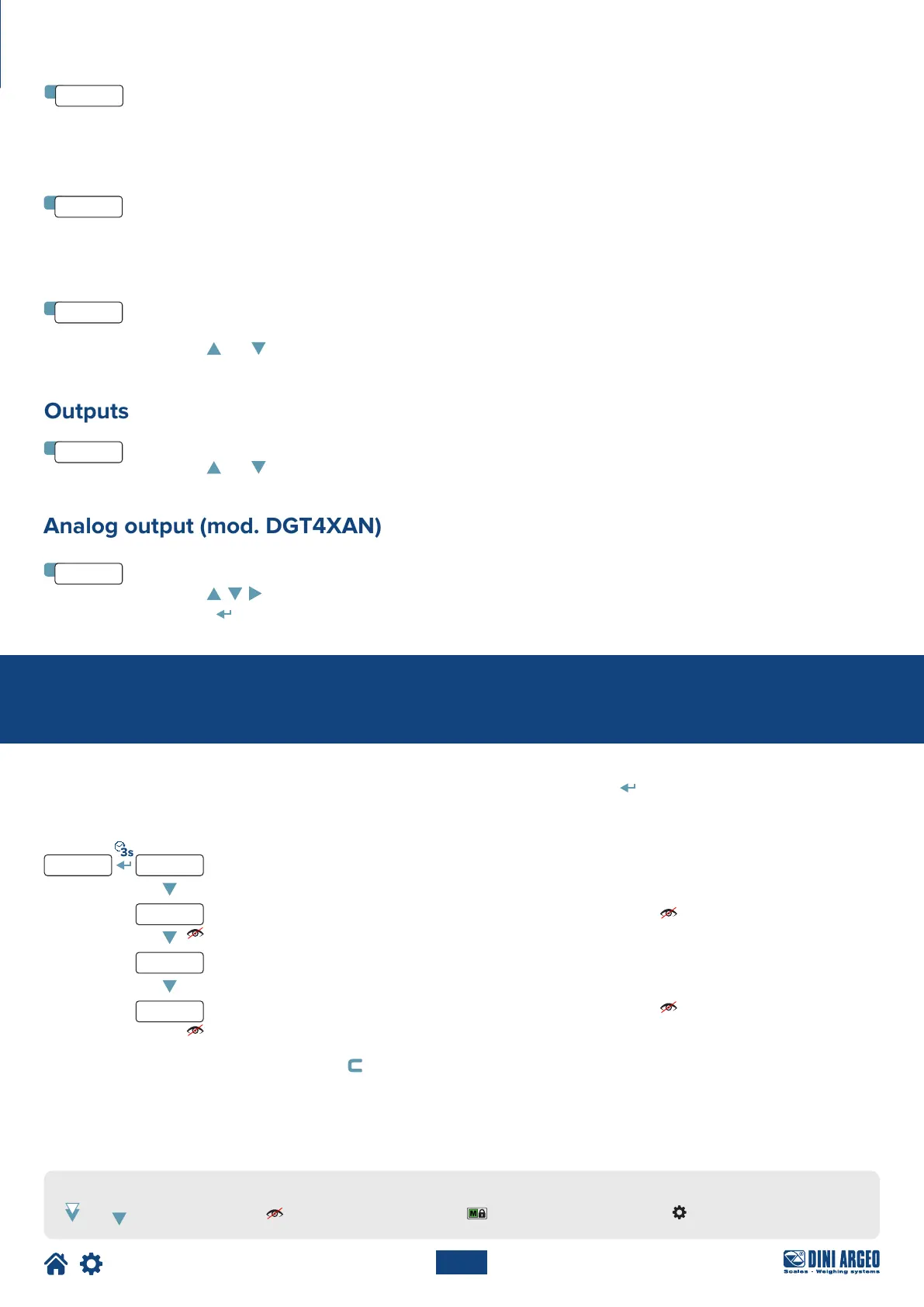

Inputs
Outputs
Analog output (mod. DGT4XAN)
Checking the status of the inputs:
value 0 indicates that the input is disabled, value 1 indicates that the input is enabled.
Use the and keys to display the two inputs.
Activation of the output shown on the display (rel.1 / rel.2).
Use the and keys to activate the two outputs.
Analog output test.
Use the , , keys to enter the D/A point value of the analog output.
Press the key to confirm and update the V / mA value of the analog output.
Checking the CTS signal of the printer (on) connected to the PRN port.
CTS signal
Bridge between serial ports (for manufacturer’s use).
Serial ports
Programming the Setpoints
In weighing mode, if the output functions (1 Gross / 2 net) have been set correctly, pressing for 3 seconds will enter the setpoint
programming menu:
Once you have entered the desired values, press . The display shows “store” and returns to weighing mode.
visible only if rl.ist = ist.on
Output 1 deactivation value.
Output 2 deactivation value.
Output 1 activation value.
Output 2 activation value.
visible only if rl.ist = ist.on
