i
TYPE
A
888888
Setup
C
ConfiG
1
ini.al
4
i
TECH_MAN_ENG_DGT4X
LEGEND:
Indicates repeated pressing of
the key.
Parameter visible only
under certain conditions.
Parameter or menu subject
to approval.
Default value of the parameter.

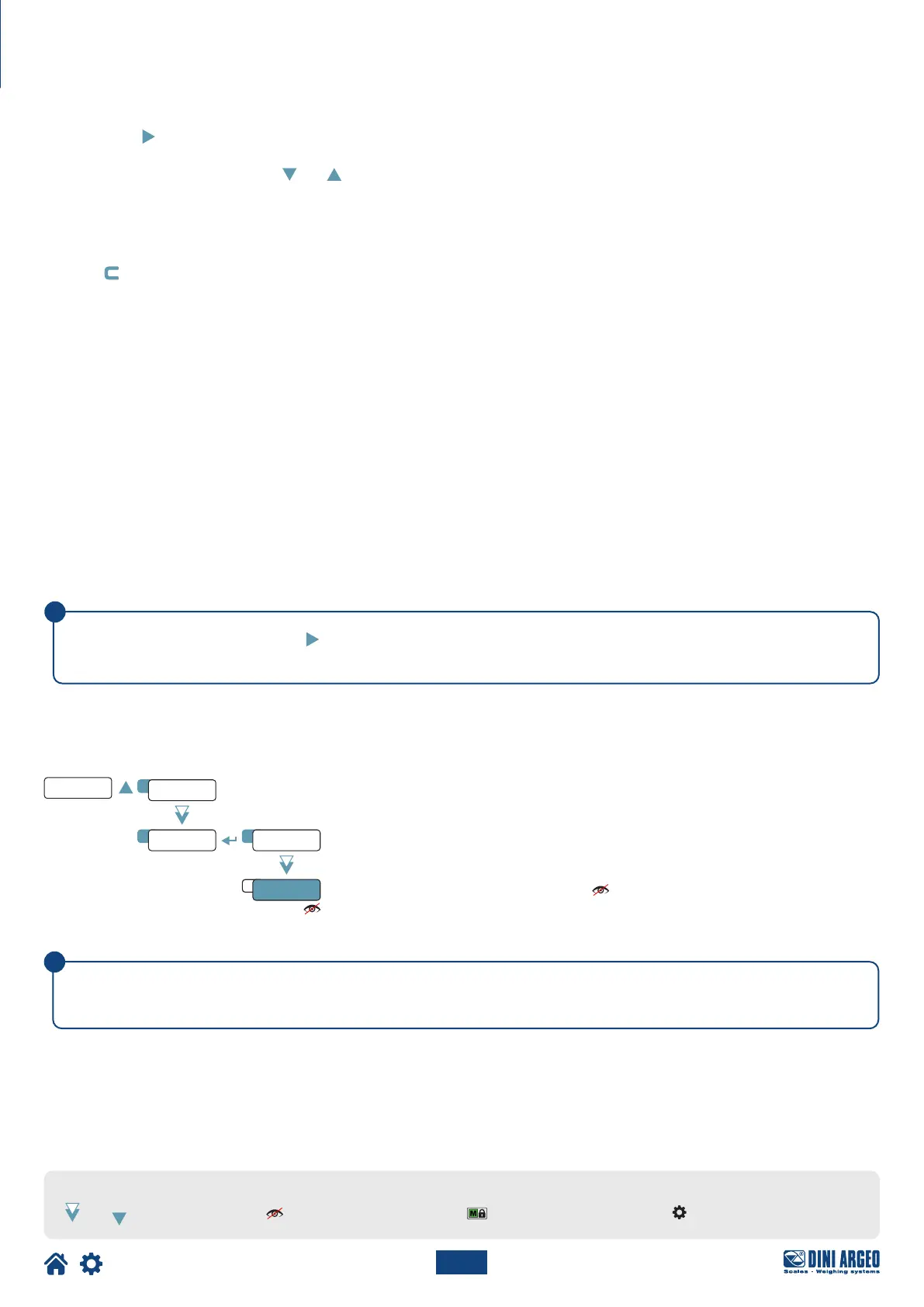

Reading the alibi memory
Initialising the alibi memory
FROM THE TRANSMITTER (MANUAL)
By pressing the key you can read a saved weight:
you will be asked to enter the rewrite number “rew.id” (from 0 to 255) and the ID number “id” (from 0 to 131072).
The weighing data are shown. Use the and keys to scroll through the following information:
• “Ch. X”, where X indicates the scale number.
• “Um YY”, where YY indicates the unit of measurement (kG, G, t or lb).
• “Gross”, followed by the gross weight.
• “Tare / tarept”, followed by the tare value.
Press the key to return to weighing.
The weighing of an ID can only be verified if:
• it has a rewrite number equal to the current alibi memory number and a weighing number ≤ the last value received with the PID command;
• it has a rewrite number ≥ 0, but 1 less than the current alibi memory value, and a weighing number greater than the last value received
with the PID command.
FROM PC
To read a weighing operation from a PC, see the serial command “READING A WEIGHING OPERATION IN THE ALIBI MEMORY” on
page 56.
FROM PLC
To read a weighing operation from a PLC, refer to the Modbus and Fieldbus protocol manuals.
If the alibi memory is empty, when the key is pressed the display shows “empty” for one second and returns to weighing mode.
If an invalid ID is entered, the display shows “No id” and returns to weighing mode.
Not visible if the transmitter is approved.
This operation deletes all saved weighing operations; it is not possible to delete a weighing operation individually.
