DINO 210XT
15
OPERATING CONTROLS

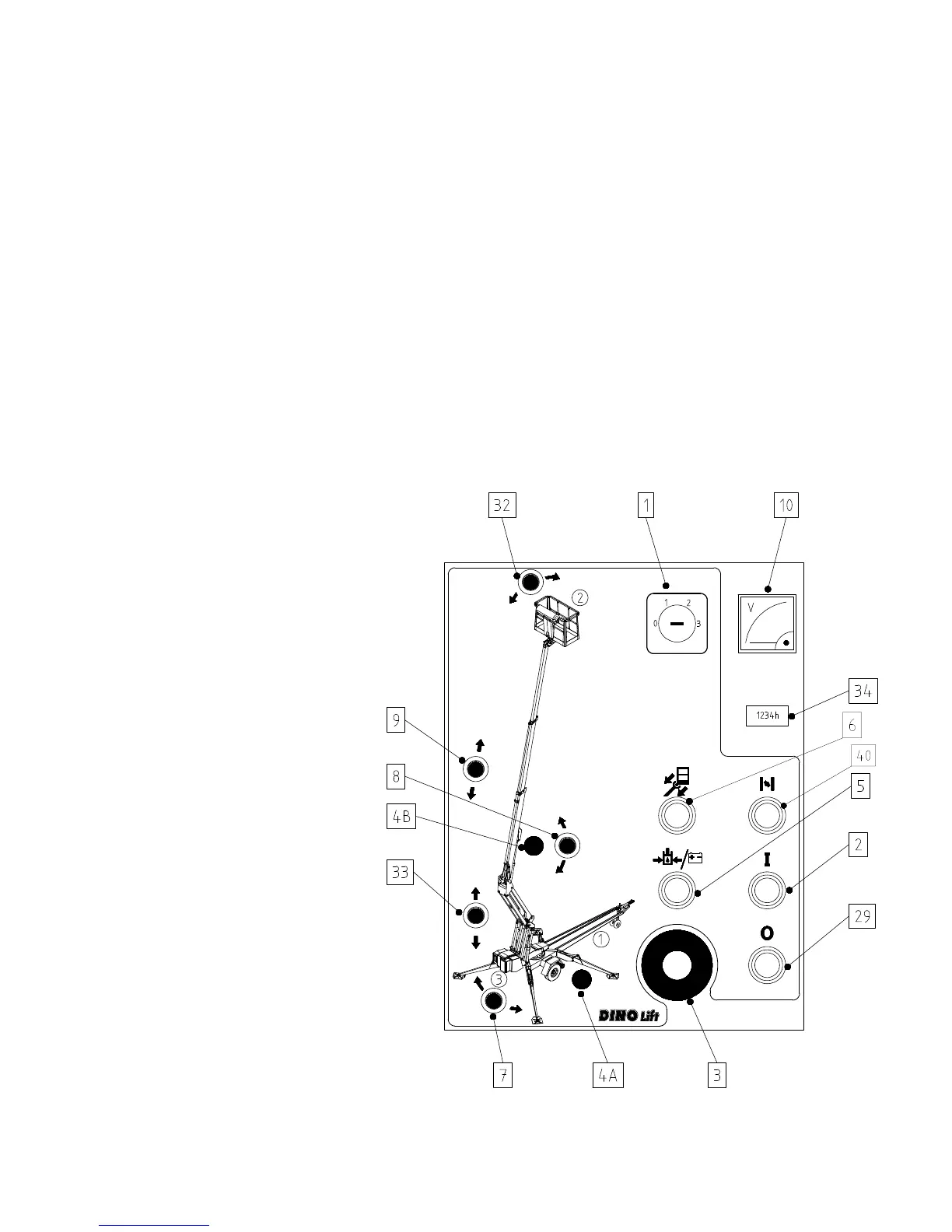

OPERATING CONTROLS ON THE CHASSIS CONTROL PANEL
1. Selector switch
0 - ignition off
1 - outrigger circuit, hydraulic drive
2 -controlling the boom from the platform panel
3 -controlling the boom from the chassis panel
2. Start button
3. Emergency stop button
4A. Green signal light for limit switches of the outriggers
4B. Red signal light for the safety device (RK5)
5. Start button of emergency descent system
6. Telescope in, pushbutton
7. Lever switch for turning
8. Lever switch for boom system
9. Lever switch for telescope movement
10. Voltage meter
12. Rear outrigger, right
13. Rear outrigger, left
14. Front outrigger, left
15. Front outrigger, right
16. Position indicator of chassis
29. Stop button
32. Lever switch for platform
inclination
33. Lever switch for articulated arms
34. Hour meter
40. Choke
