DINO 210XT
40
PREPARING THE LIFT FOR TRANSPORT
1. Retract the telescope boom completely.
2. Check that the platform is perpendicular to the boom.
3. Lower the boom/platform onto the support on the tow-bar.
- the limit switch on the transport support prevents operation of the support outriggers if
the platform is not down
4. Close the cover on the platform control panel.

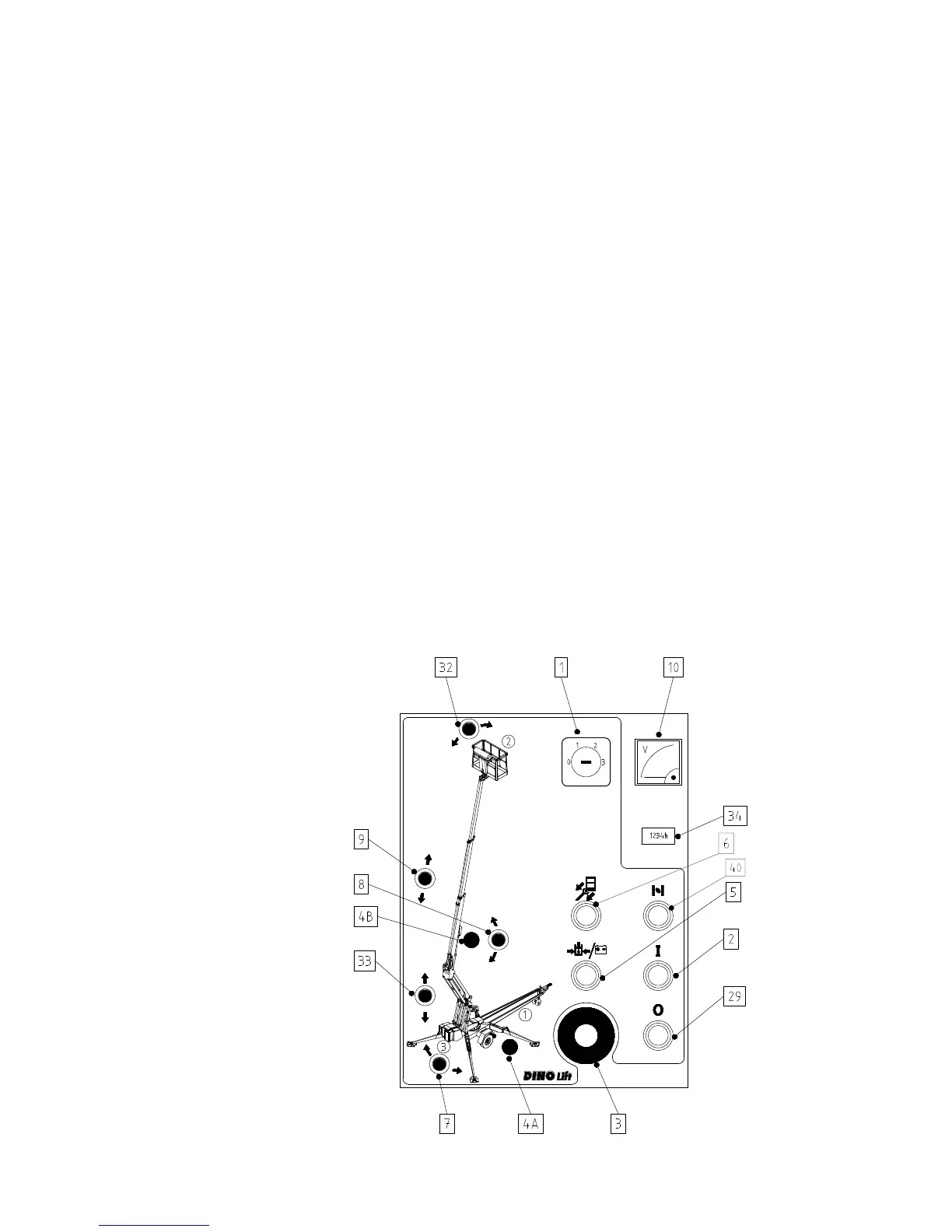

5. Turn the selector switch 1 outriggers to position (1).
6. Lift the support outriggers.
- at first the rear support outriggers (do not damage the rear lights)
- then the front support outriggers (do not damage the jockey wheel)
7. Apply the parking brake.
8. Make sure that the driving device is disconnected.
9. Turn the selector switch to position 0 and disconnect the lift from the power supply.
10. Turn the mains switch to position 0.
11. Make sure that the covers are locked.
