OPERATING CONTROLS ON THE PLATFORM
Close the cover of the chassis control panel before operating the platform controls.
The cover must not be locked while the lift is in operation.

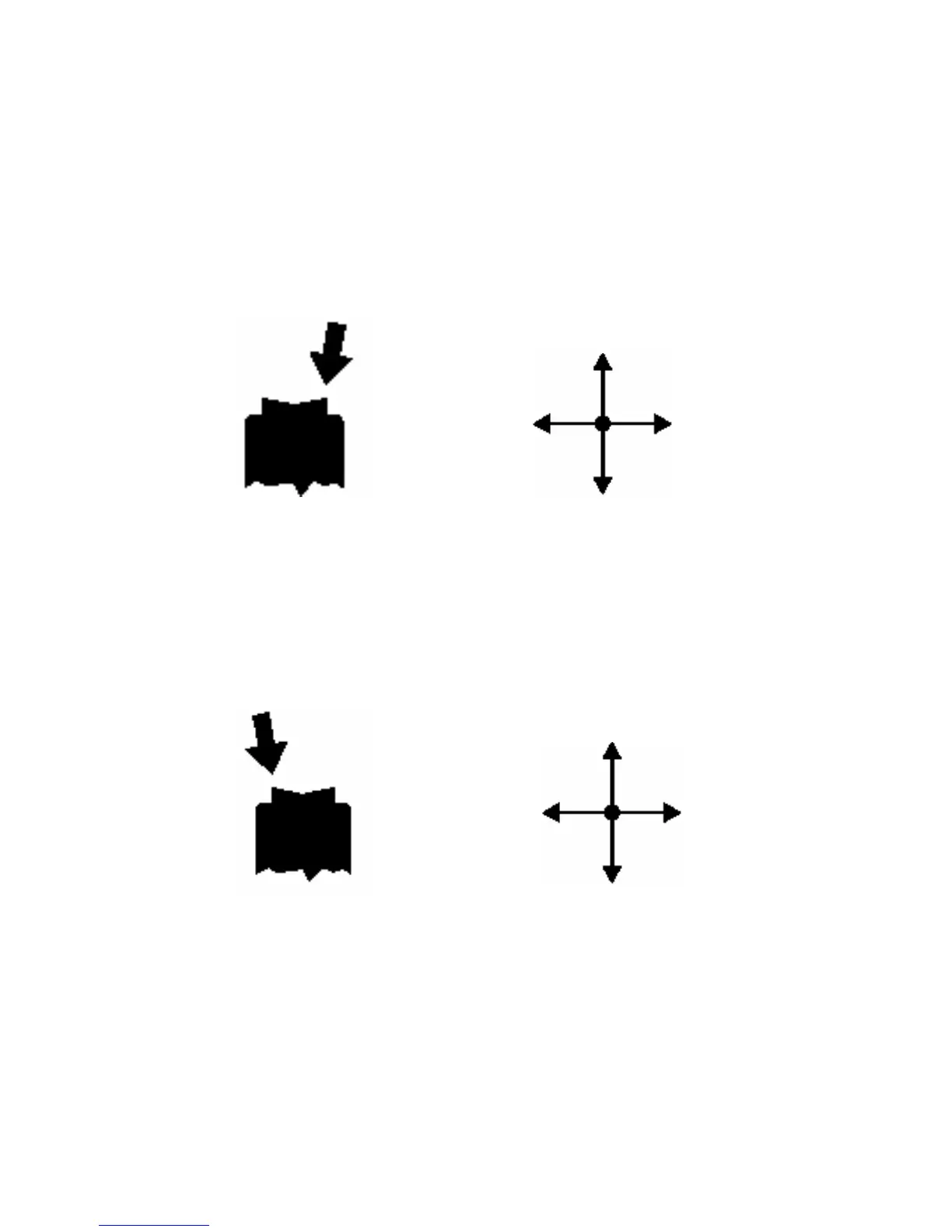

17. Control lever
TELESCOPE
IN
ARTICULATED
ARMS
DOWN
ARTICULATED
ARMS
UP
TELESCOPE
OUT
BOOM
UP
BOOM
TO THE LEFT
BOOM
TO THE RIGHT
BOOM
DOWN
