DINO 210XT
26

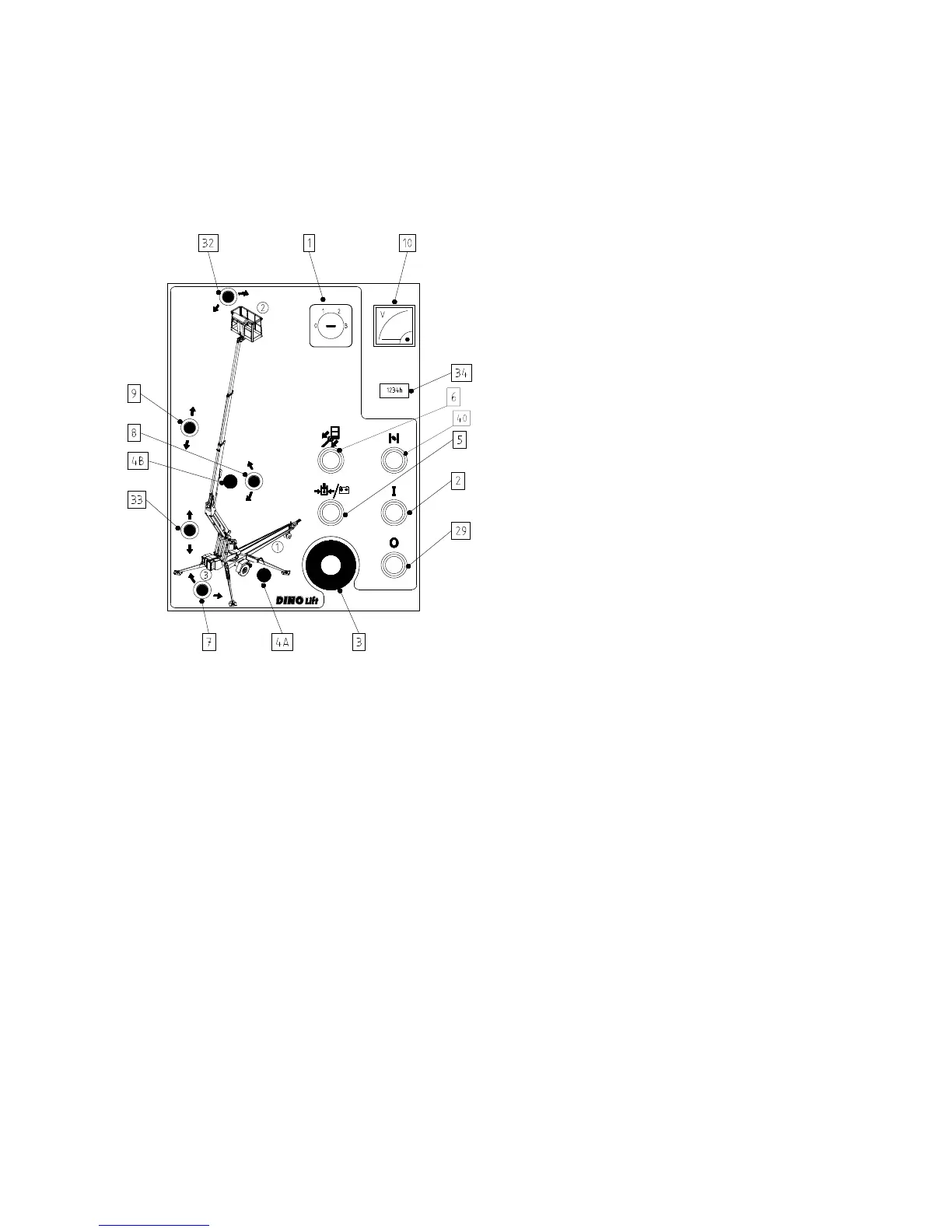

OPERATING THE LIFT FROM THE CHASSIS PANEL
10. Turn the selector switch (1) to position 3
- now you are able to operate the boom with levers 7, 8, 9, 33 and the platform with lever 32 from
the chassis panel
- test the operation of the emergency descent system as follows:
1. start by lifting the boom about 1 - 2 metres (with lever 8) and continue by extending the
telescope 1 - 2 metres (with lever 9) keeping the emergency stop button depressed - thus the
movement shall stop
2. start the power unit of the emergency descent system (pushbutton 5), retract the telescope
(lever 9) and lower the boom (lever 8)
3. pull up the emergency stop button
4. lift the boom from the towbar
