OPERATING THE LIFT FROM THE PLATFORM PANEL
11. Turn the selector switch (1) to position 2 and take away the key
Do not lock the chassis control panel cover with the key.

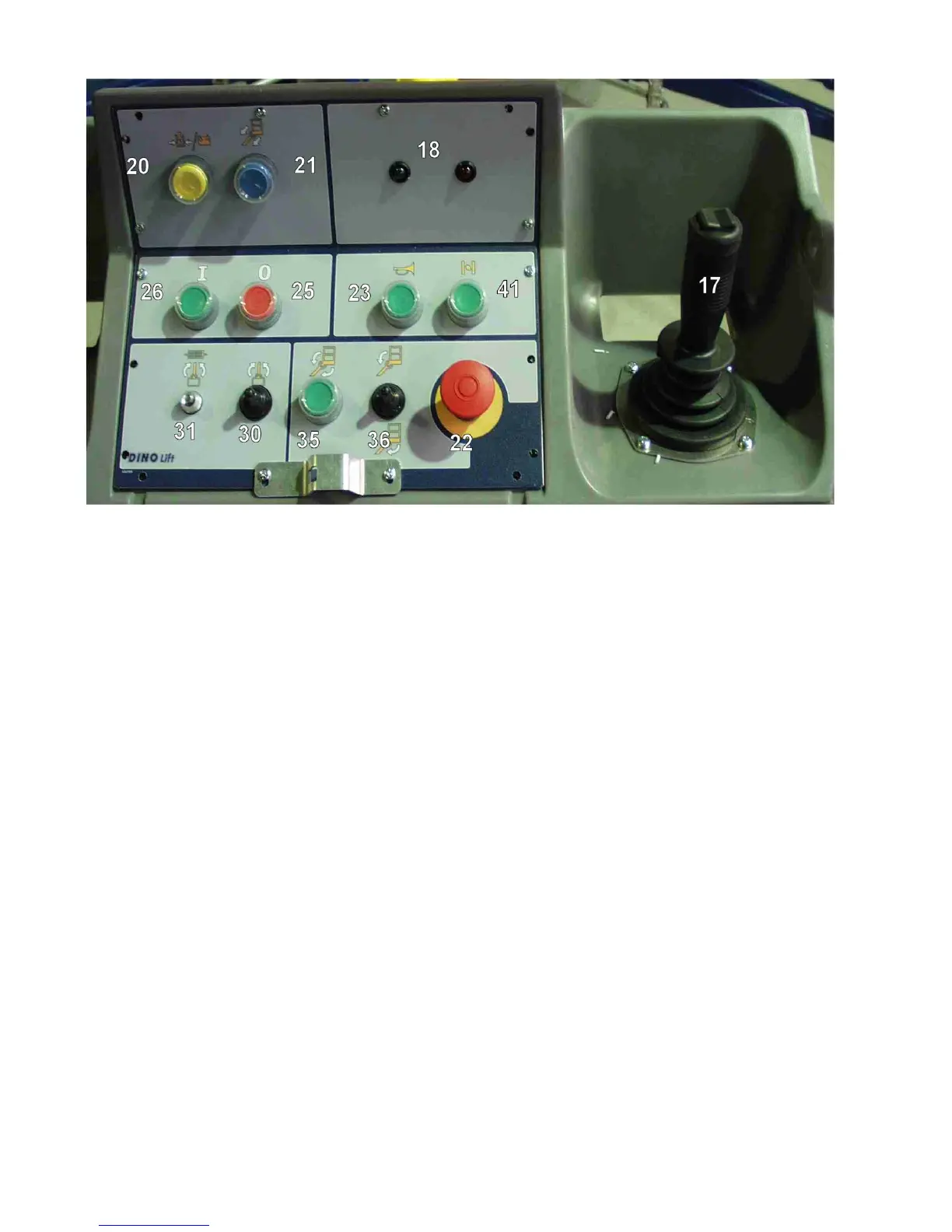

- now you can operate the boom with lever 17 on the platform control panel
Start by pushing the rocker switch at the end of the control lever and then move the lever carefully
in the desired direction of motion. If you move the lever before pushing the rocker switch, the
action is deterred.
- test the operation of the emergency descent system as follows:
- start by lifting the boom about 1 - 2 metres (with lever 17) and continue by extending the
telescope 1 - 2 metres (with lever 9) keeping the emergency stop button depressed - thus the
movement shall stop
- start the emergency descent power unit (pushbutton 20), retract the telescope and lower the
boom (lever 17)
- pull up the emergency stop button
DO NOT DAMAGE THE TOW-BAR JOCKEY WHEEL!
The movement speed of the platform can be continually adjusted with the lever (17).
