TESTING THE LOAD LIMIT SWITCHES RK4 AND RK 5

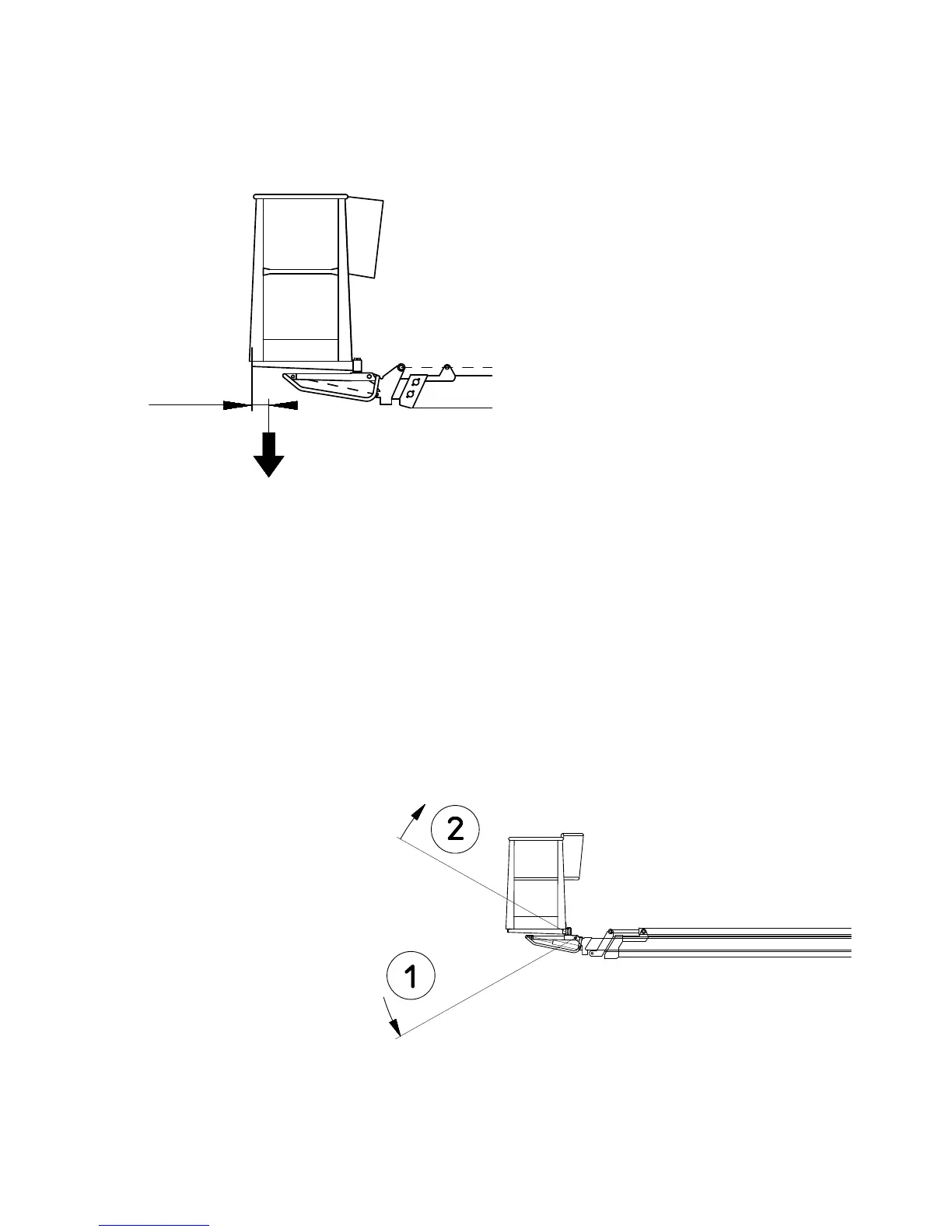

Put a carefully weighed load (80 kg) on the platform. Place it at a distance of 100 mm from the rear
edge of the platform.
Drive the boom to a horizontal position from the chassis control panel.
Lift and lower the rear edge of the platform using the position control.
1. Lowering the rear edge of the platform
2. Lifting the rear edge of the platform
Drive the platform with the position control to a horizontal psoition so that that the last stage of the
adjustment procedure is lifting of the rear edge.
80 kg
100 mm
