DINO 210XT
58

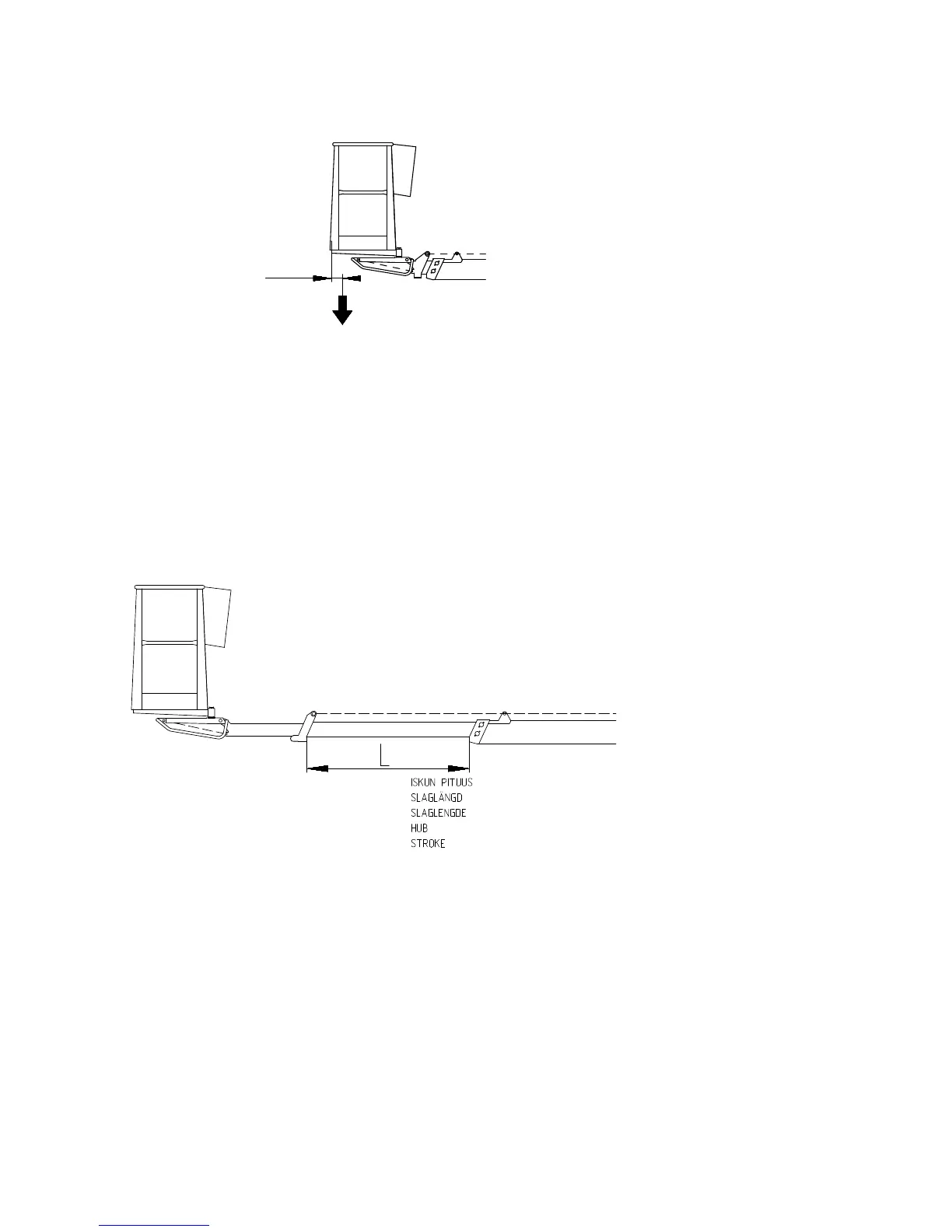

- put a load of about 80 kg onto the platform
- lift the boom and extend the telescope
The movement stops as soon as the red outreach limit signal light lights up (at max.
outreach).
Now:
- the lifting of the boom should be operational - the lowering of the boom must NOT be
operational
- the retraction of the telescope should be operational - the extension of the telescope must
NOT be operational
80 kg
100mm
