DINO 210XT
57

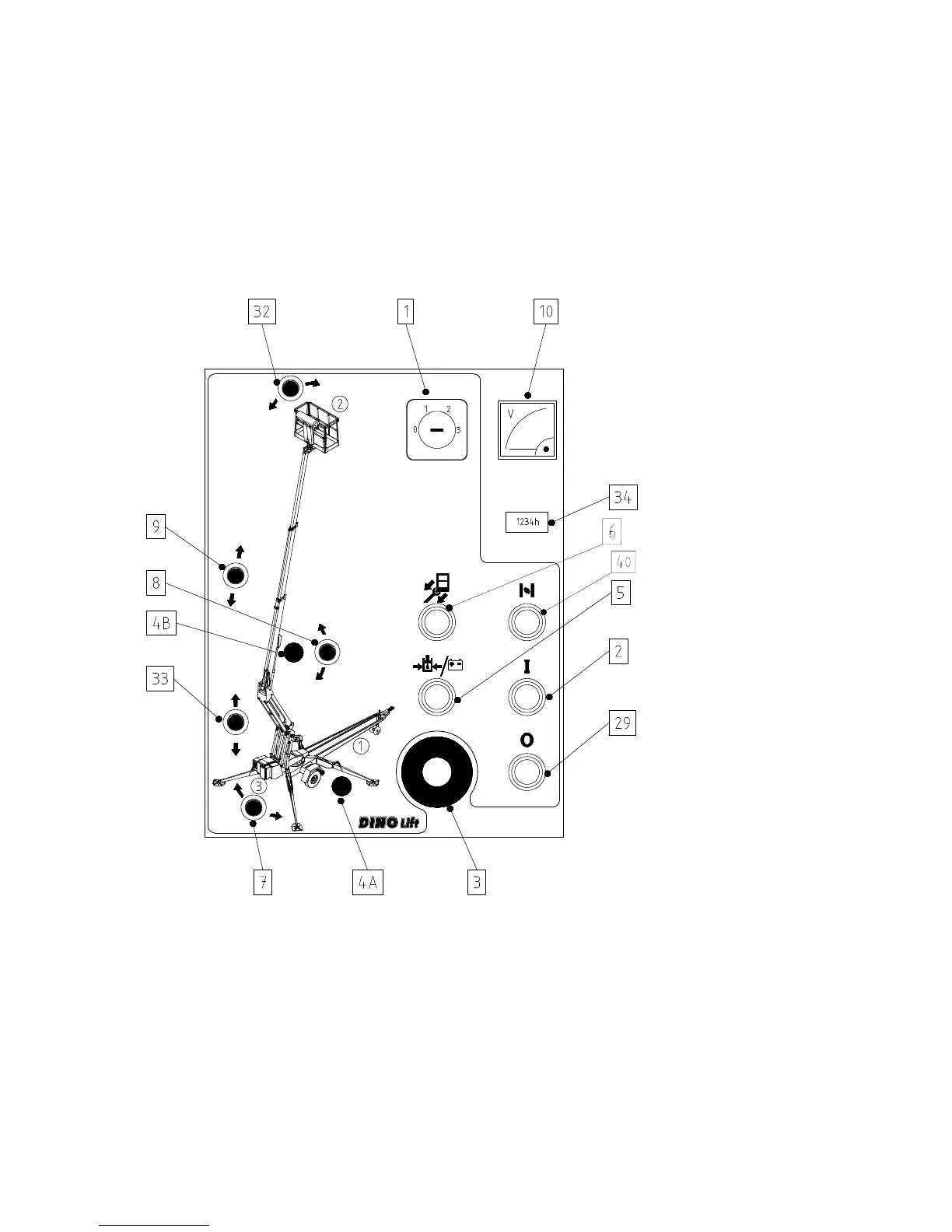

10. Operation of the safety devices while they are controlled from the chassis control panel
- lift the platform slightly up from the transport position
- the outriggers must not operate in any position of the selector switch
- lift the boom and test the following:
1. emergency stop (3)
2. emergency descent, retraction of telescope (6)
3. emergency descent, lowering of the boom (5 and 8)
- bring the boom to the transport position and lift the outriggers with the driving device
connected.
- the boom must not operate in any position of the selector switch
- disconnect the driving device and lower the outriggers (bring the lift to a level position)
