DINO 210XT
48
WHEEL BRAKES AND BEARINGS

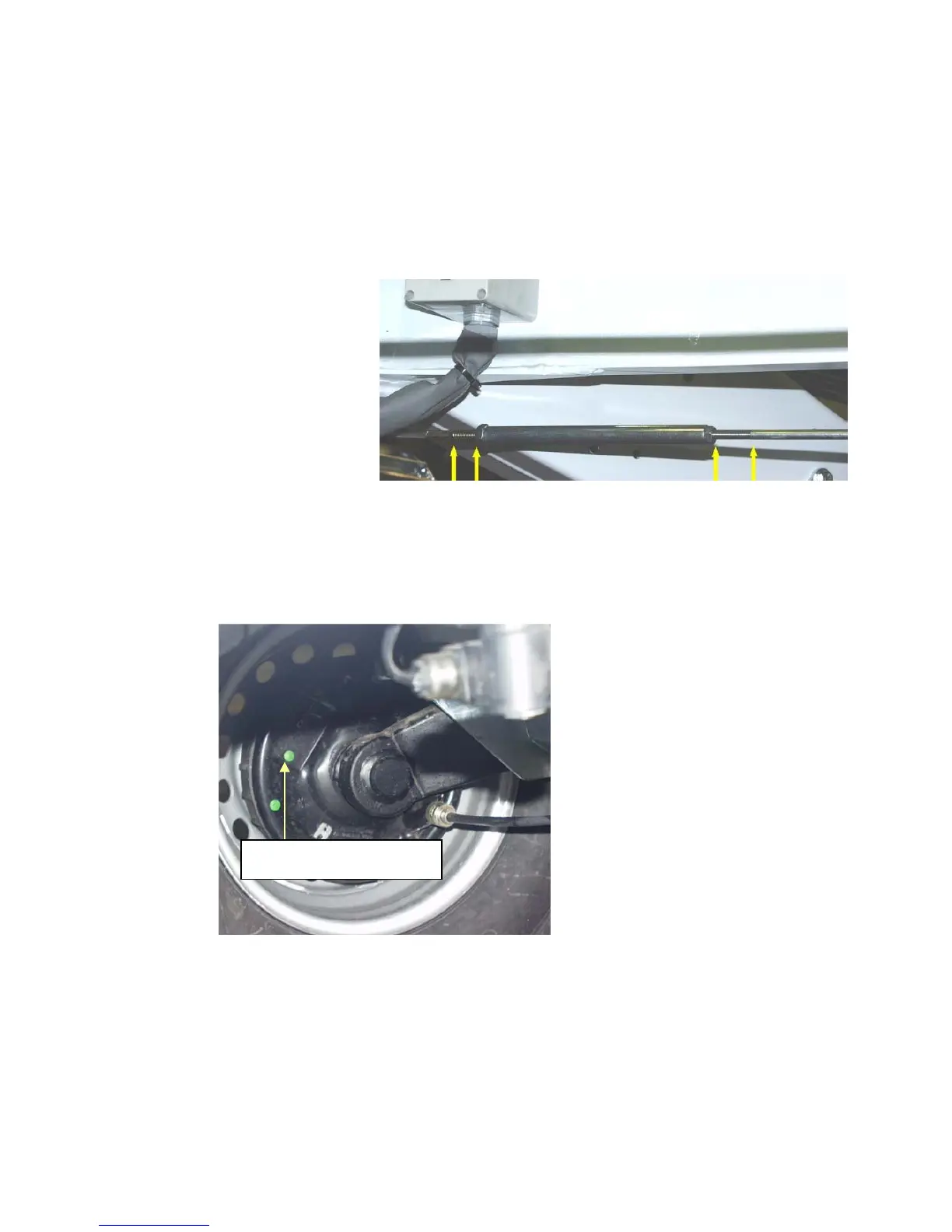

Adjustment of the brakes
Jack up the lift until the wheels rise off the ground and support it in this position.
Make sure that the wheels can rotate freely.
The brake rods must be slack (with
the handbrake released).
Check the attachment of the brake
rods.
Turn the adjustment wheel behind the hole shown by the arrow until the wheel can no longer be
turned by hand.
Turn the adjustment wheel counter-clockwise until the wheel can be turned freely.
Adjust the braking force with the nuts keeping the brake balancer perpendicular to the tow-bar so
that both wheels will brake.
SÄÄTÖ
ADJUSTMENT
