GENERAL INFORMATION OF HYDRAULICS
The movements require simultaneous operation of two electric valves, i.e:
- change-over valve for outriggers/boom system and boom
- change-over valve for outriggers/boom system and telescope
- change-over valve for outriggers/boom system and platform
- change-over valve for outriggers/boom system and rotation
- change-over valve for outriggers/boom system and articulated arms

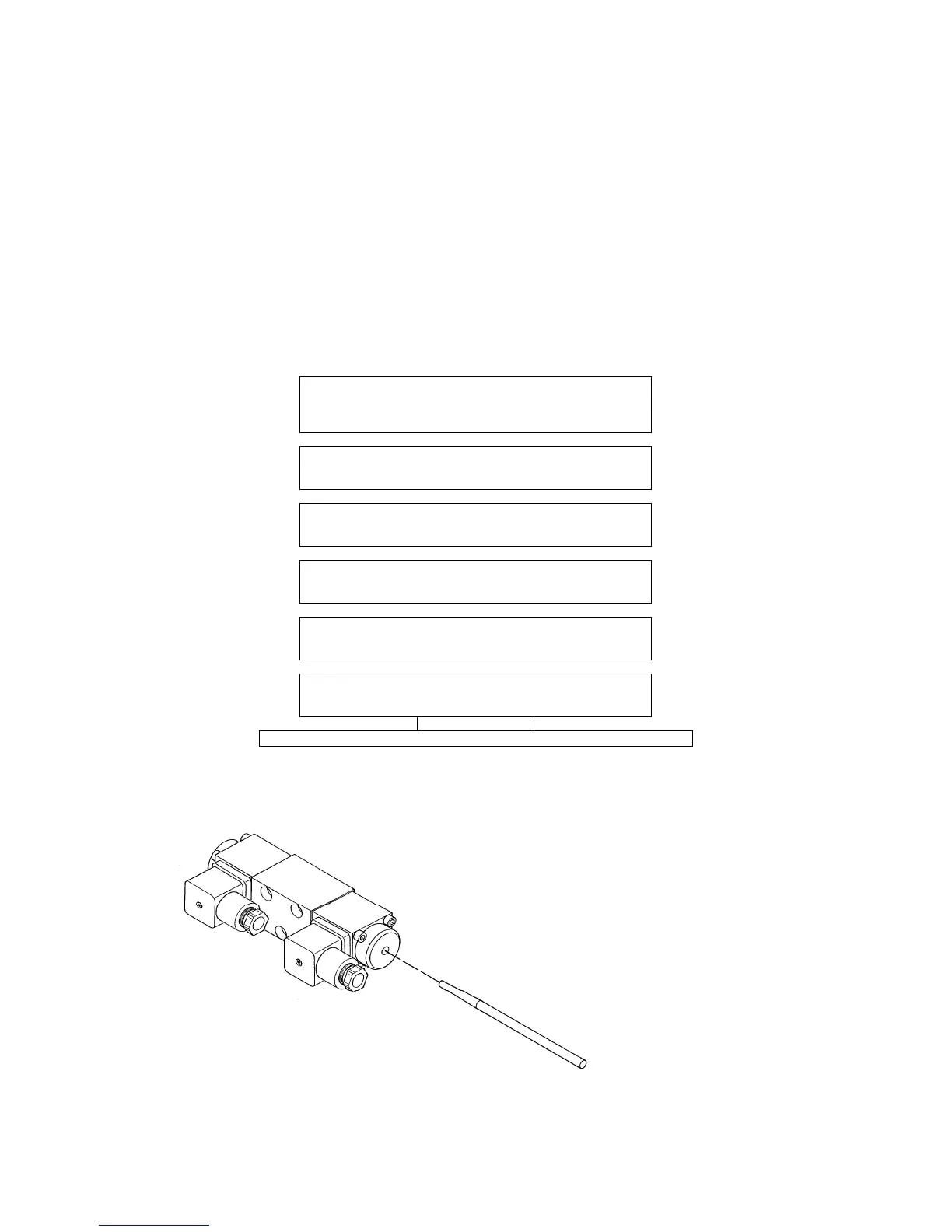

OUTRIGGERS / BOOM
(PROPO)
ARTICULATED ARMS
BOOM
TELESCOPE
LEVELLING OF PLATFORM
TURNING
Press the pin at the end of the electric valves while one of the power units is running.
If the movements operate, the fault is in operating controls of the electric system or the valve spools
are dirty, which causes jamming (refer to fault finding scheme, item 6).
If none of the movements operate, the fault is in the hydraulic system.
