Dino 210XT - Overload Limit Switch Adjustment Method I

DINO 210XT
60
Adjustment method I:
Extend the telescope until it stops. (Do not correct the position of the platform).

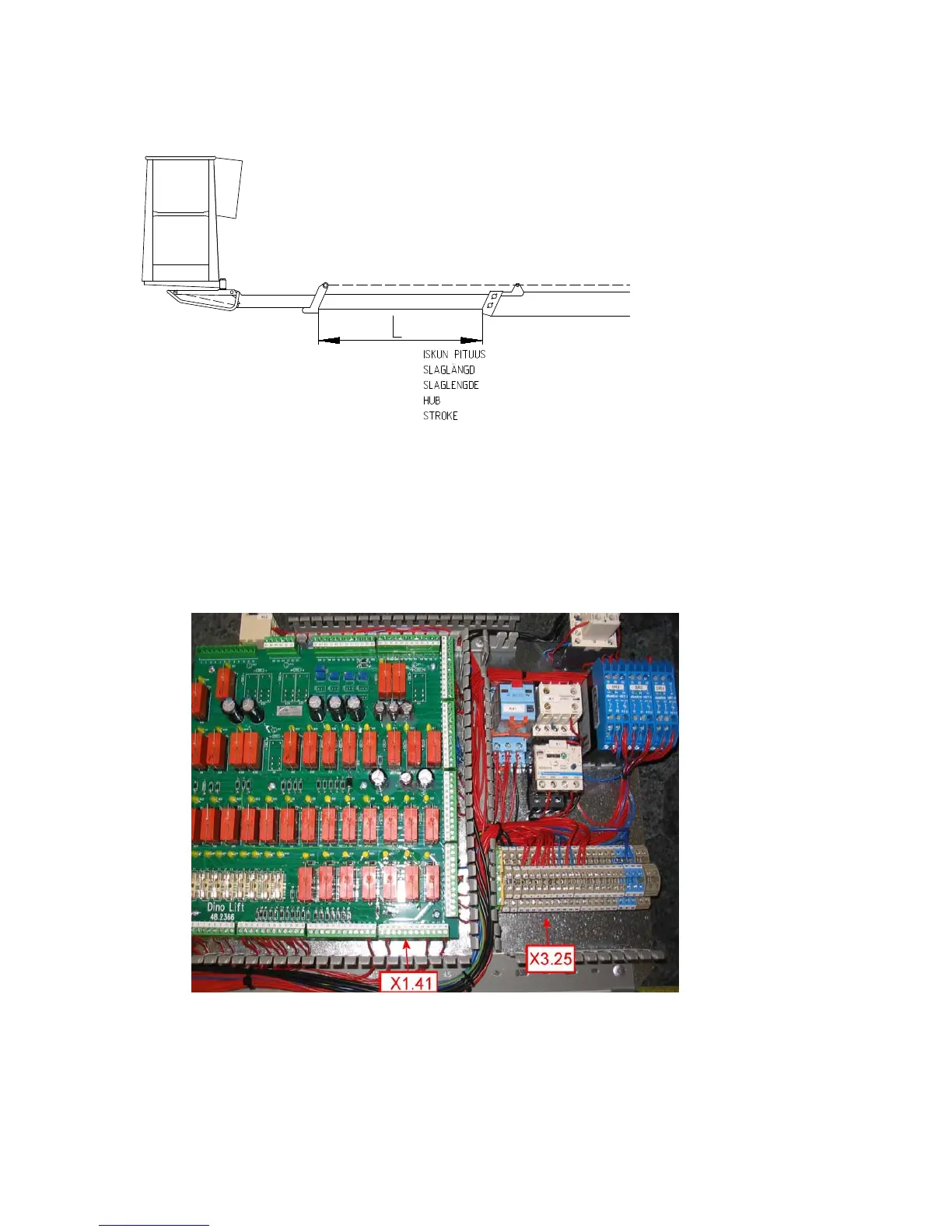

Measure the length of the protruding part of the telescope extension(L). The length shall be 3 100
mm ±50 mm.
Make sure that a red signal light on the platform is lit.
- the second safety limit switch (RK5) backs up if the first switch outreach limit switch (RK4)
fails
- disable the RK4 for testing by disconnecting the conductor from the terminal X1:43 and
connecting the terminals X3:25 ja X1:41 in the chassis control panel with a jumper lead
Also connect a conductor between the terminals X1 and X2 of the relay SR3.
- retract and extend the boom and measure the length of the telescope extension´s protruding
part
The length shall be 3 600 mm ±50 mm.
- if the protruding part is too long, adjust the limit switches and secure their position with a
seal
ATTENTION! Remember to resume the operation of the RK4 by connecting the conductor to
terminal X1:43 and removing the jumper leads.
