DINO 210XT
18

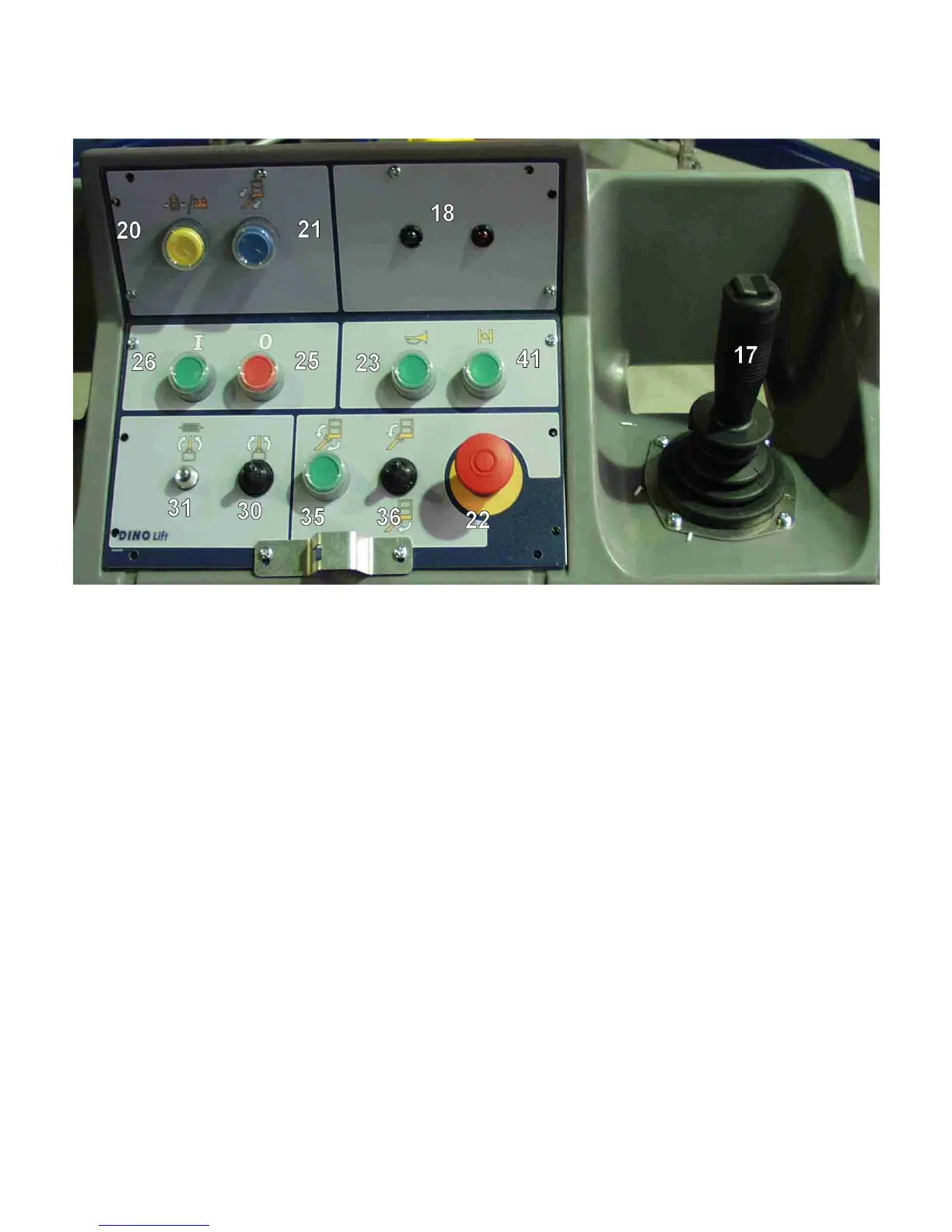

18. Signal lights
- green inside allowed outreach range
- red at the border of allowed outreach range
20. Emergency descent device start button
21. Retracting the telescope
22. Emergency stop
- push to stop
- pull to reset
23. Sound signal
24. Socket outlet 230VAC/ (2 pcs.)
25. Stopping the engine
26. Starting the engine
30. Turning the platform (is used simultaneously with pushbutton 35)
31. Platform swing fuse
35. Levelling of the platform (pushbutton)
36. Lever for levelling of platform (is used simultaneously with pushbutton 35)
41. Choke
