DINO 210XT
93
10. Adjustment of min. current of the control card (the lift in boom-mode, the power unit is
not running)
10.1 The intensity of current increases as the screw is turned clockwise
10.2 Adjust the minimum current to I
min
=330mA
11. Adjustment of max. current for the control card (the lift in boom-mode, the
power unit is not running)
11.1 the max. current is adjusted using the screw 1
11.2 drive the "boom up" movement
11.3 carry out the adjustment during the lifting, the current increases as the screw is
turned clockwise
11.4 adjust the max. current to I
max
=1300mA

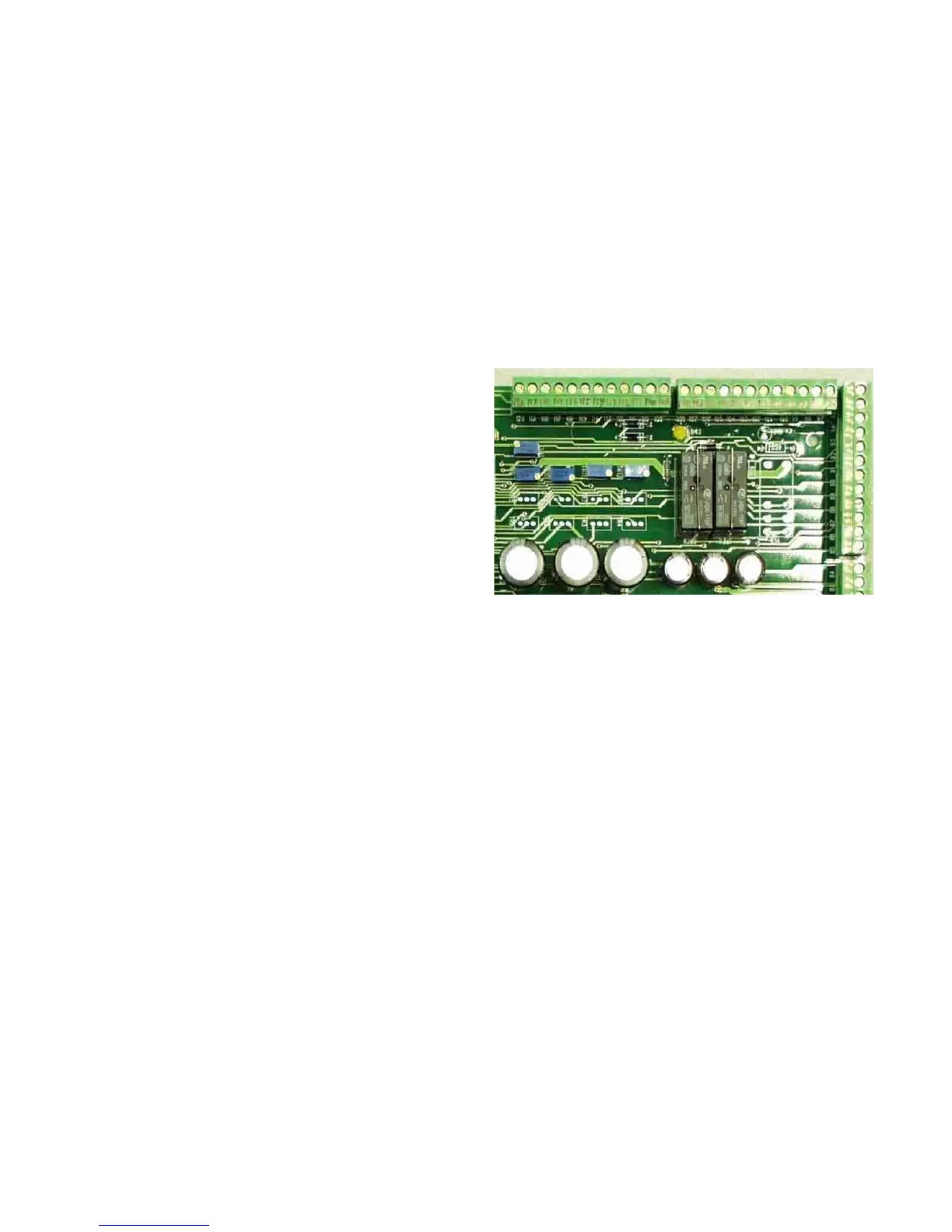

12. The movement speeds are adjusted using the adjustable resistors on the circuit card in the
main control centre. The speed of the following movements can be adjusted:
- TR9 = levelling of the platform
- TR10 = the speed of movements when
controlled from the chassis control panel
(affects the speed of all movements when
controlled from the chassis panel)
- TR11 = lowering of the boom
- TR12 = lowering of the articulated arms
13. Adjustment of the movement speed from
the chassis panel.
Drive the "boom up" movement and
simultaneously adjust the intensity of current using the adjustable resistor TR10 to
I
lower
=1250mA.
14. Adjusting the lowering speed of the boom
14.1 Drive the "boom down" movement and simultaneously adjust the intensity of
current using the adjustable resistor TR11 to I
lower
=1230mA.
14.2 Check the lowering speed of the boom > start the power unit and raise the boom
until the (floor of the) platform is at the height of 2,8 metres.
14.3 Lower the boom to its lowermost position (over a distance of 2 m). The lowering
should take about 12 seconds.
15. Lowering the articulated arms
Drive the "articulated arms down" movement and simultaneously adjust the intensity
of current using the adjustable resistor TR12 to I
lower
=1230mA.
16. Levelling of the platform
16.1 Lift the boom as much as is required to prevent the platform from clashing with
the chassis during the movement.
16.2 Drive the levelling movement of the platform and simultaneously adjust the
intensity of current using the adjustable resistor TR9 to I
platform
=910mA.
16.3 The time required for turning the platform from its upper position to its lower
position should be about 23 seconds.
17. Finally, remove the measuring adapter and re-connect the control card plug to its socket.
