2.7.2 Fluidic Setup

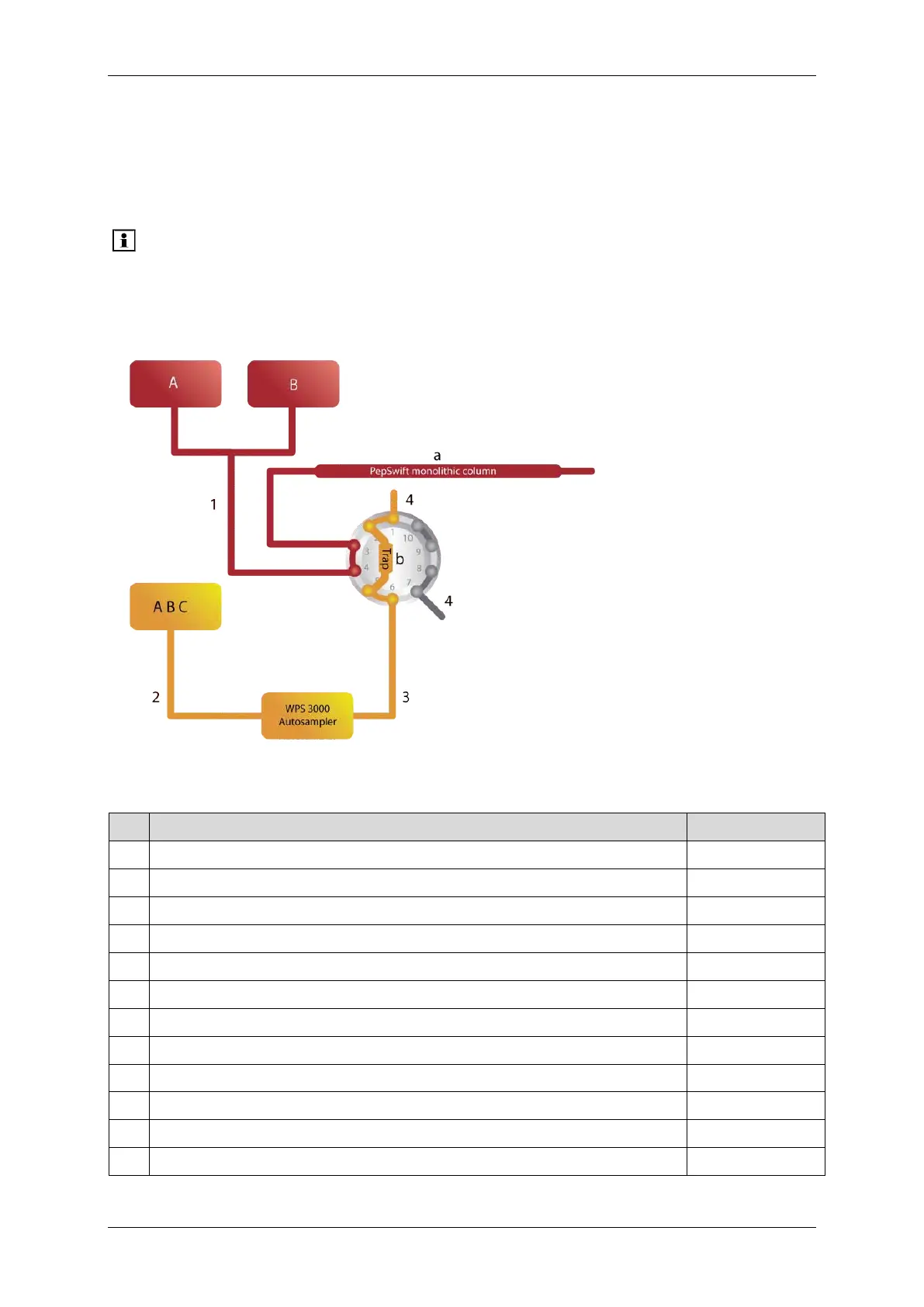

Figure 19 presents the setup using the parts of the Pre-concentration application kit. Columns
are marked with letters, tubing with digits, and the sample loop is installed in the
WPS-3000PL Autosampler.
Tip: The schematic shows a 10-port switching valve, but this application can be
performed on a 6-port valve. Ensure that the relative positions of the connections
are correct, and update the valve switching in the Chromeleon templates if
necessary.
Figure 19: Fluidic connections for a Pre-concentration experiment onto a monolithic column
Table 5: UltiMate 3000 RSLCnano Pre-concentration monolithic LC kit (P/N 6720.0320) contents
# Item Replacement P/N
a
PepSwift Monolithic Capillary Column, 200 µm I.D. x 5 cm (PS-DVB), nanoViper 164557
b
PepSwift Monolithic Trap Column, 200 µm x 5 mm (PS-DVB), set of 2, nanoViper 164558
1
nanoViper capillary FS/PEEK sheathed 1/32" I.D. x L 50 µm x 350 mm 6041.5540
2
nanoViper capillary FS/PEEK sheathed 1/32" I.D. x L 75 µm x 650 mm 6041.5775
3
nanoViper capillary FS/PEEK sheathed 1/32" I.D. x L 75 µm x 550 mm 6041.5760
nanoViper capillary FS/PEEK sheathed 1/32" I.D. x L 50 µm x 750 mm 6041.5580
nanoViper sample loop 20 µL, FS/PEEK sheathed I.D. x L 250 µm x 408 mm 6826.2420
4
PTFE tubing, 500 µm I.D. 100 cm, used as waste tubing 6720.0077
Polypropylene vials for WPS with glass insert, 250 µL, 25 pcs. 6820.0027
Polypropylene caps for WPS vials, 25 pcs. 6820.0028
Cytochrome C digest, 1.6 nmol, Lyophilized 161089
1/16" Universal Fingertight Fitting, one-piece design, extra long thread, 4 pcs. 6720.0015
