UltiMate 3000 RSLCnano – Standard Applications
42
2.11 Automated off-line 2D LC, Cap RP (basic) x nan RP (acidic)
2.11.1 Hardware Layout

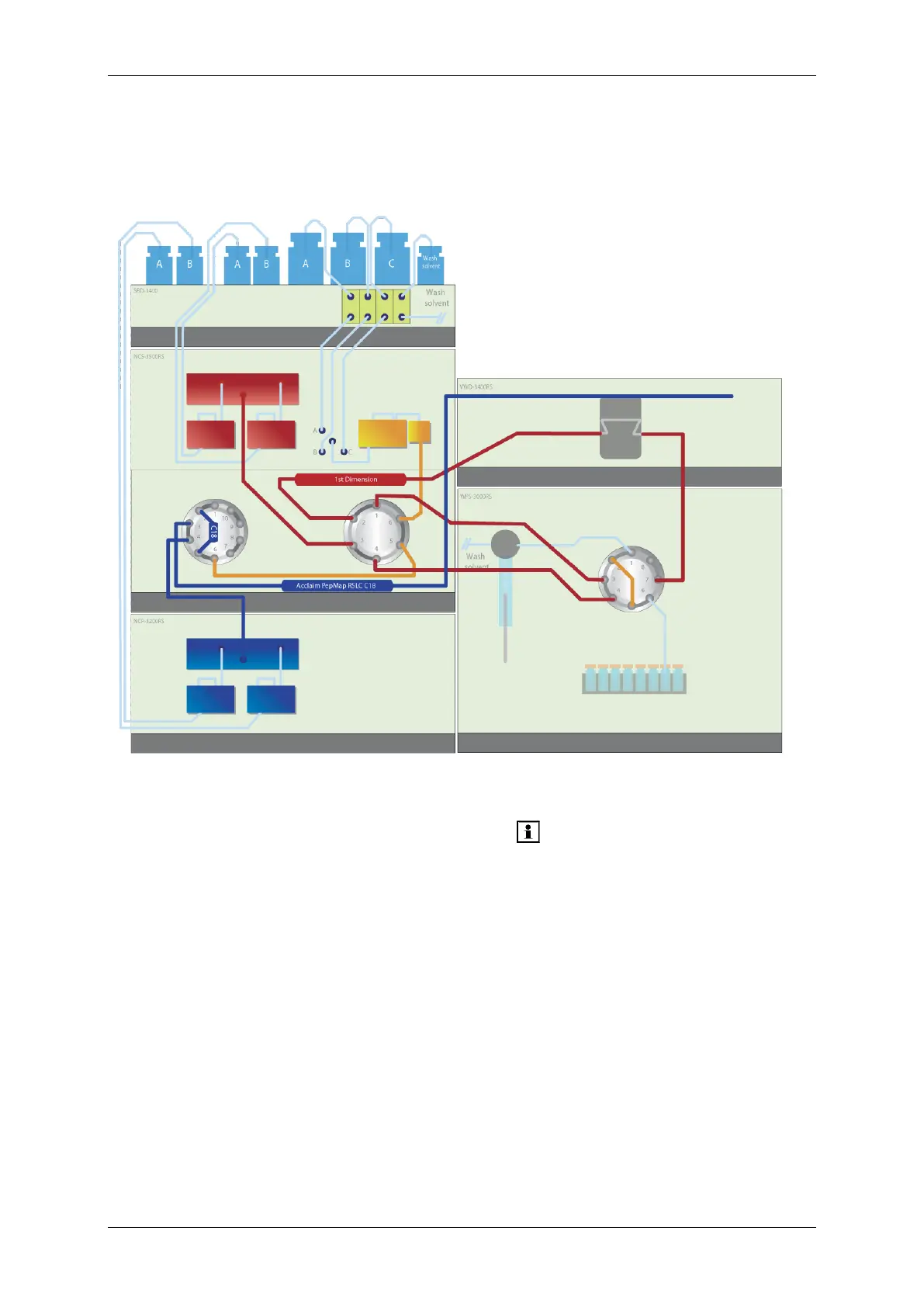

Figure 28: Setup for an Automated Off-line 2D Cap Nan experiment
The recommend setup is presented in
Figure 28 and consists of:
SRD-3400 5035.9245
NCS-3500RS 5041.0010
NCP-3200RS 5041.0030
2x 10-port sw. valve 6041.0001
VWD-3400RS 5074.0010
3 nL flow cell 6074.0270
45 nL flow cell 6074.0280
WPS-3000PL 5820.0010
µFC option 6820.0051
Application kit: 6720.0340
Tip: The µFC option limits
the upper pressure of the
first dimension to
350 bar, due to the
applied 8-port valve.
The NCP-3200RS spare
parts kit has two 130 cm
long solvent inlet tubing
to place the bottles on
top of the system.
