2.2 Installing the UltiMate 3000 RSLCnano System

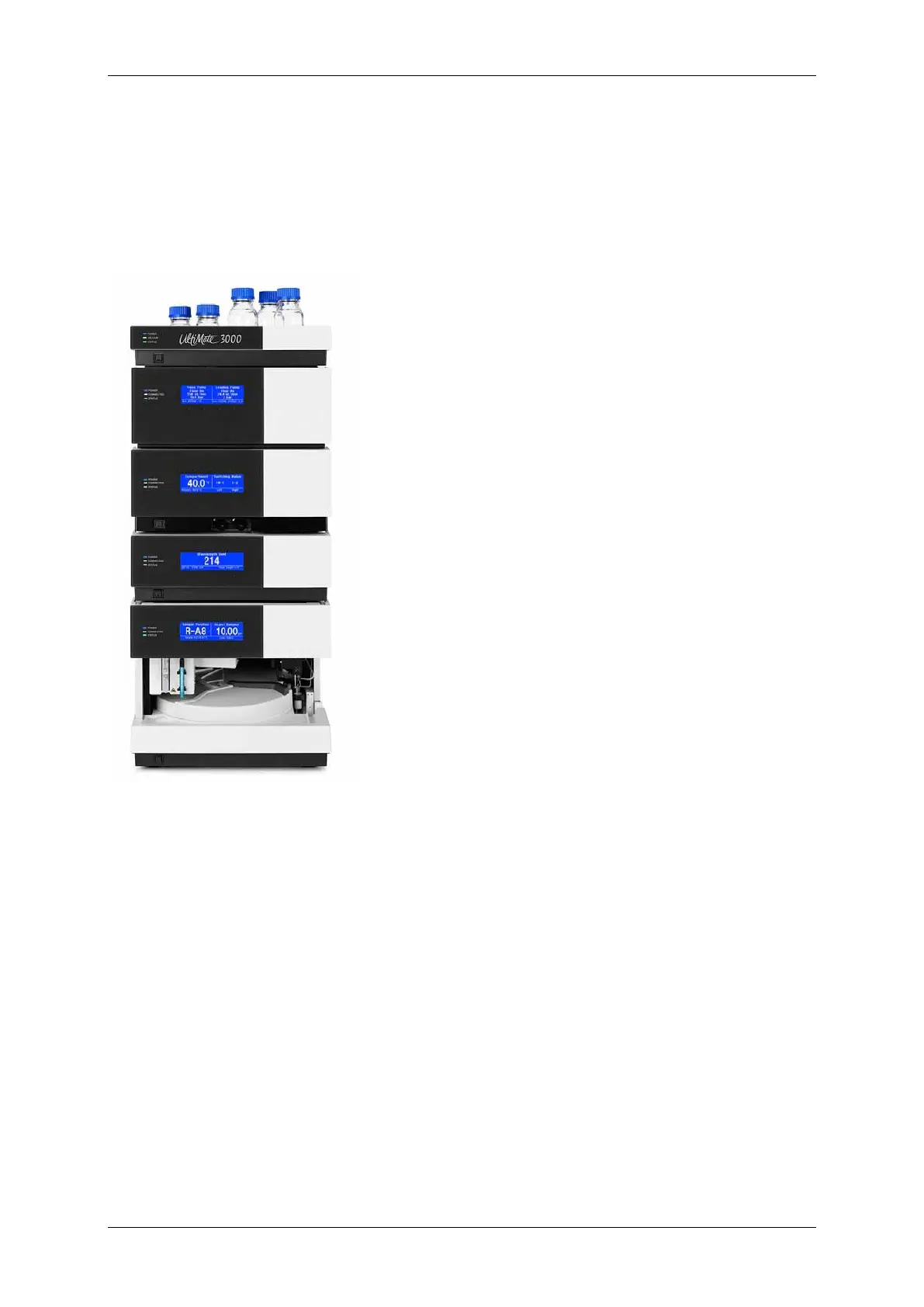

The general UltiMate 3000 RSLCnano system overview is shown in Figure 5. The modular
nature of the Thermo Scientific Dionex UltiMate 3000 platform does allow modifications to
this layout.
Figure 5: RSLCnano system overview
SRD-3400, SRD-3200 with degassing or
SR-3000 without degassing.
NCS-3500RS module featuring
- NC pump, up to 800 bar
- Loading pump, micro Titanium up to 500 bar
- Column compartment with up to two switching valves
Optional:
- NCP-3200RS
- PAEK valve
VWD-3400RS with flow cells for
- nano (3nL),
- capillary (45 nL)
- micro (180 nL) LC
WPS-3000TPL RS
- Temperature controlled autosampler equipped with a
1000 bar switching valve
- Optional:
8-port valve (350 bar) for automated off-line
applications
Figure 6 shows the interior of the NCS-3500RS module. The module consists of two pumps
and an integrated column compartment. The most important elements required for system
setup are indicated in the picture.
Figure 7 shows the interior of the NCP-3200RS module. This module contains only the
NC_Pump, but is identical in capabilities and performance as the NC_Pump in the NCS-
3500RS.
