Page 64
AIM 2 Operation Manual

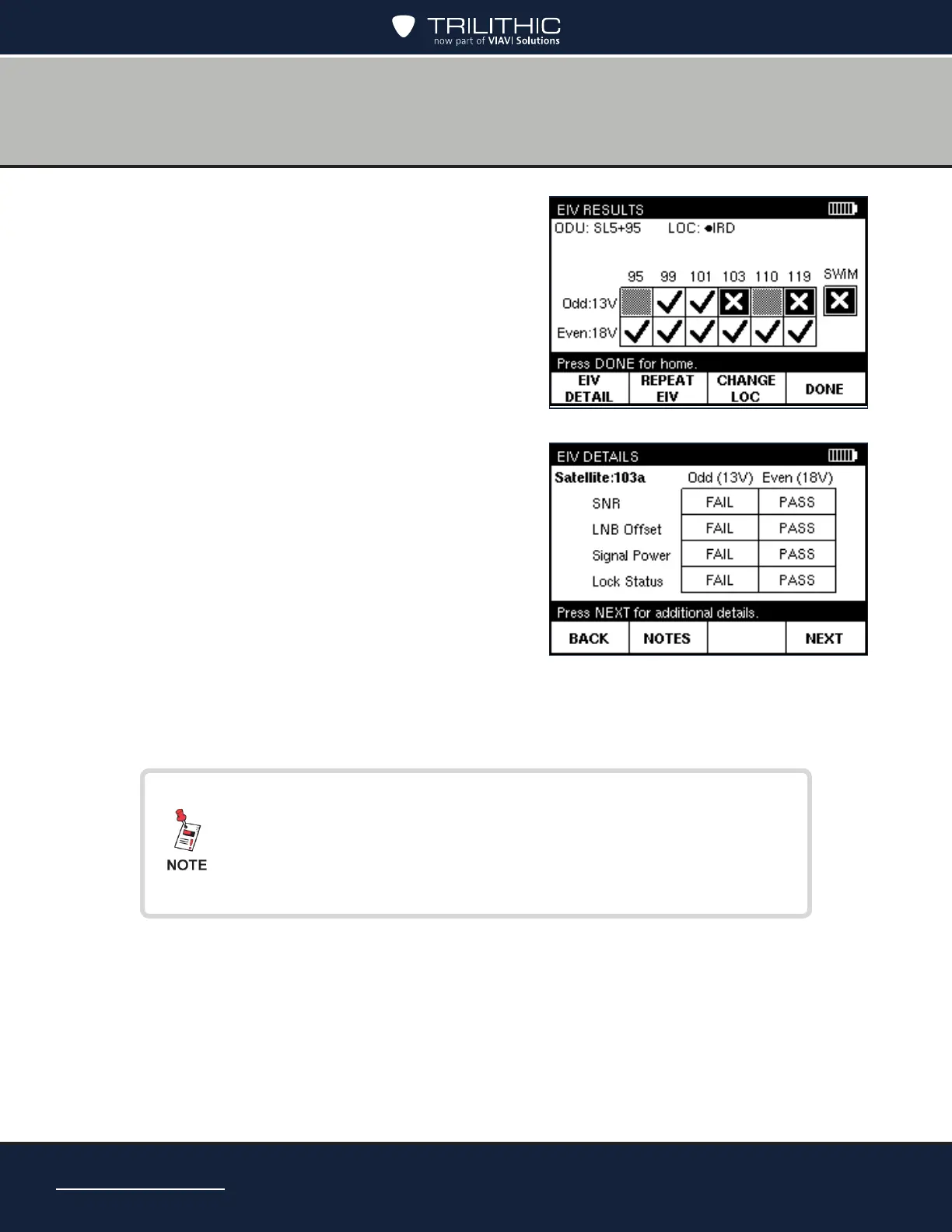

7. On the EIV RESULTS screen, review the
results for all supported orbital slots and SWiM
channels (if applicable). A satisfactory result
is indicated by a checkmark. A problem is
indicated by an X. An inconclusive result is
indicated by a dash.
If a checkmark appears for all supported orbital
slots, the ODU alignment is acceptable.
If an X appears for an orbital slot, perform the
following steps:
• Press REPEAT EIV to conrm the
problem.
• If an X appears again for one or
more orbital slots, you can press EIV
DETAIL to determine which tests failed.
Troubleshoot any failures following the
instructions provided by DIRECTV.
To change the location where you are testing,
press CHANGE LOC.
On the EIV DETAILS screen, you can press NEXT to view the
details for another orbital slot, or press BACK to scroll back
through the details to the EIV RESULTS screen.
You also can press NOTES to add a note about the EIV.
