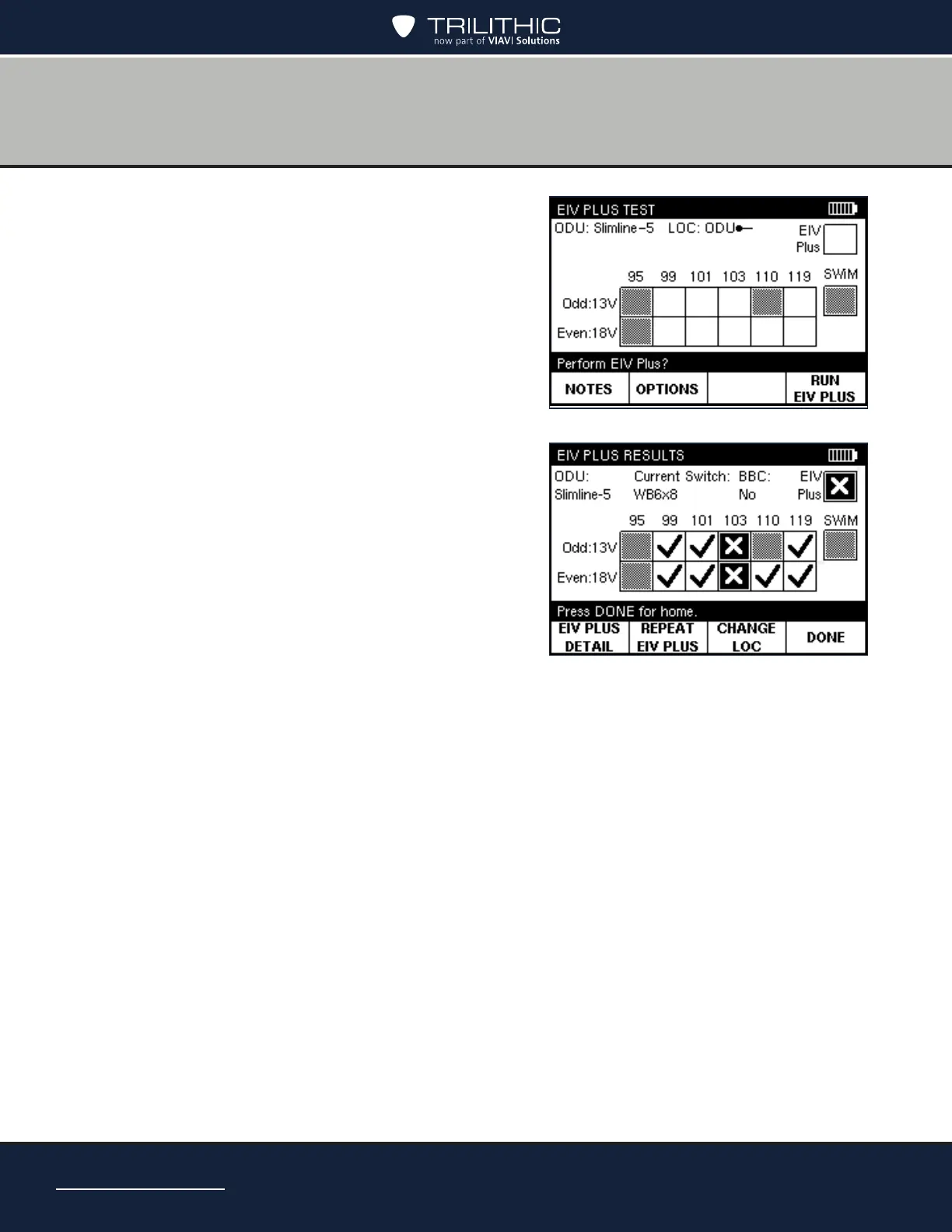

7. On the EIV PLUS TEST screen, you can do
one of the following:
• To select an individual polarity for the
EIV Plus, press OPTIONS. On the EIV
PLUS OPTIONS screen, highlight the
polarity for the EIV Plus.Then press
SELECT to continue.
• To select the channel for an installation
with a DSWiM-13 where the test location
is between the DSWiM and IRD, press
OPTIONS. On the EIV PLUS OPTIONS
screen, press SELECT. Then highlight
the DSWiM channel and press SELECT.
• To add a note about the EIV Plus, such
as details about where the EIV Plus is
being performed, press NOTES. Then
enter the note.
• To run the test, press RUN EIV PLUS
and wait briey for the results.
8. On the EIV PLUS RESULTS screen, review the
results for all supported orbital slots and SWiM channels (if applicable). A satisfactory
result is indicated by a checkmark. A problem is indicated by an X. An inconclusive
result is indicated by a dash.
• If a checkmark appears for all supported orbital slots, the ODU alignment is
acceptable.
• If an X appears for an orbital slot, perform the following steps:
• Press REPEAT EIV PLUS to conrm the problem.
• If X appears again for one or more orbital slots, you can press EIV
PLUS DETAIL to determine which tests failed. Troubleshoot any failures
following the instructions provided by DIRECTV.
