Gimbal

Gimbal Prole

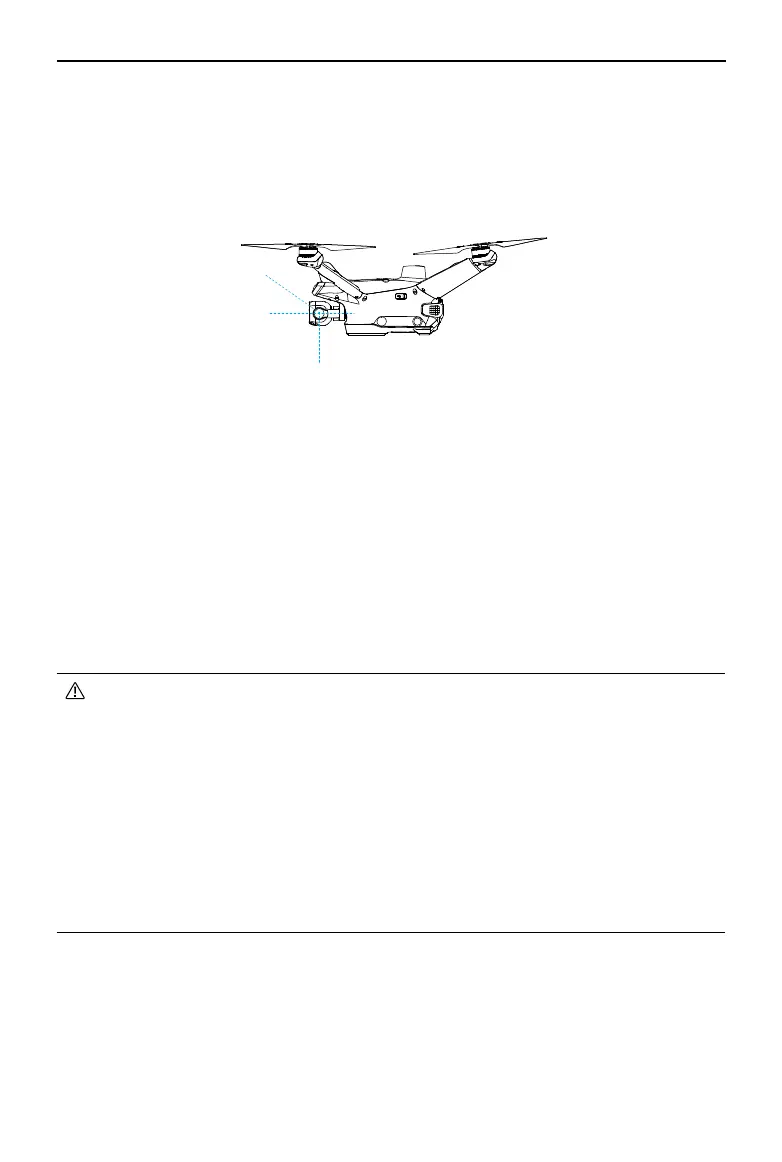

The 3-axis gimbal provides stabilization for the camera, allowing users to capture a clear and

stable picture. The control tilt range is -90° to +35°

0°

35°

-90°

Setting Gimbal Actions

The gimbal angle at each waypoint can be set in DJI FlightHub 2 when editing a ight route.

The gimbal orientation can be adjusted remotely after gaining the gimbal camera control in DJI

FlightHub 2. Go to the DJI FlightHub 2 User Guide and then refer to the Edit Waypoint Routes

section for more information.

Gimbal Mode

The gimbal operates in Follow Mode: The tilt angle of the gimbal remains stable relative to the

horizontal plane, which is suitable for taking stable images. Users can adjust the gimbal tilt.

• Precision elements in the gimbal may be damaged by a collision or impact, which

may cause the gimbal to function abnormally. Make sure to protect the gimbal from

damage.

• DO NOT add any extra payload to the gimbal as this may cause the gimbal to function

abnormally or even lead to permanent motor damage.

• Avoid getting dust or sand in the gimbal, especially in the gimbal motors.

• A gimbal motor may enter protection mode in the following situations:

a. The aircraft is on uneven ground, and the gimbal is obstructed.

b. The gimbal experiences an excessive external force, such as during a collision.

• Flying in heavy fog or clouds may make the gimbal wet, leading to temporary failure.

The gimbal will recover full functionality once it is dry.
