Aircraft

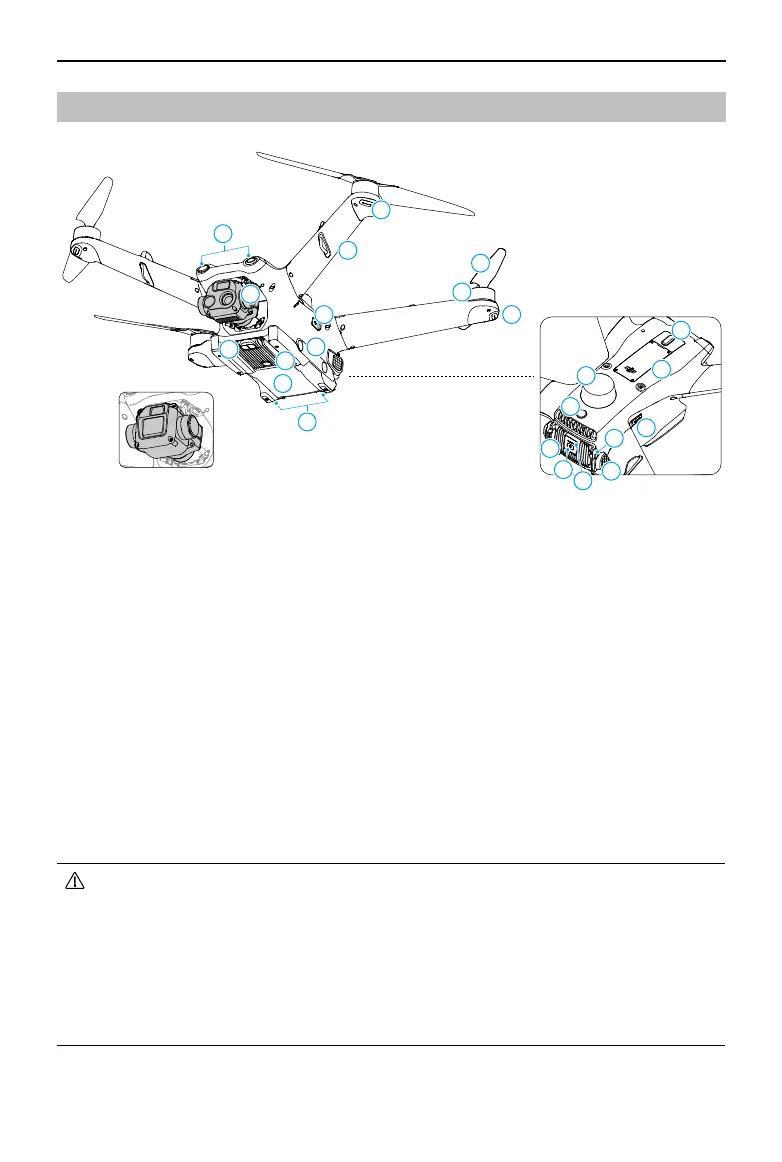

1. Gimbal Camera
[1]
2. Vision System
3. Auxiliary Light
4. Infrared Sensing System
5. Internal Charging Modules
6. Front LEDs
7. Aircraft Status Indicators
8. Motors
9. Propellers
10. Frame Arms (incl. internal antennas)
11. USB-C Assistant Port (E-Port Lite)
12. Intelligent Flight Battery
13. Power Button
14. Battery Level LEDs
15. Battery Buckle
16. Battery Locking Arm
17. microSD Card Slot
18. Beacon
19. GNSS/RTK Antenna
20. E-Port
21. Dongle Compartment
[1] DJI Matrice 3D and DJI Matrice 3TD are equipped with different cameras. Refer to the actual product
purchased.
20
21
19
18
17
15
12
13
14
1
2
3
4
5
6
7
8
10
11
9
2
2
16
Matrice 3D
Matrice 3TD
• Contact DJI or a DJI authorized dealer to replace the components of the product if
damaged. DO NOT disassemble the product without the assistance of a DJI authorized
dealer (except for components allowed to be disassembled by users in this manual),
otherwise it will not be covered under warranty.
• The aircraft has particle dampers installed in the LED covers at the end of the frame
arms to dampen frame arm vibration, ensuring a reliable, extended flight time in
various environments. It is normal for the particle dampers to make a sound when
shaken.
