Model WQC-30 3. Name and Function of Each Part
-
24
-

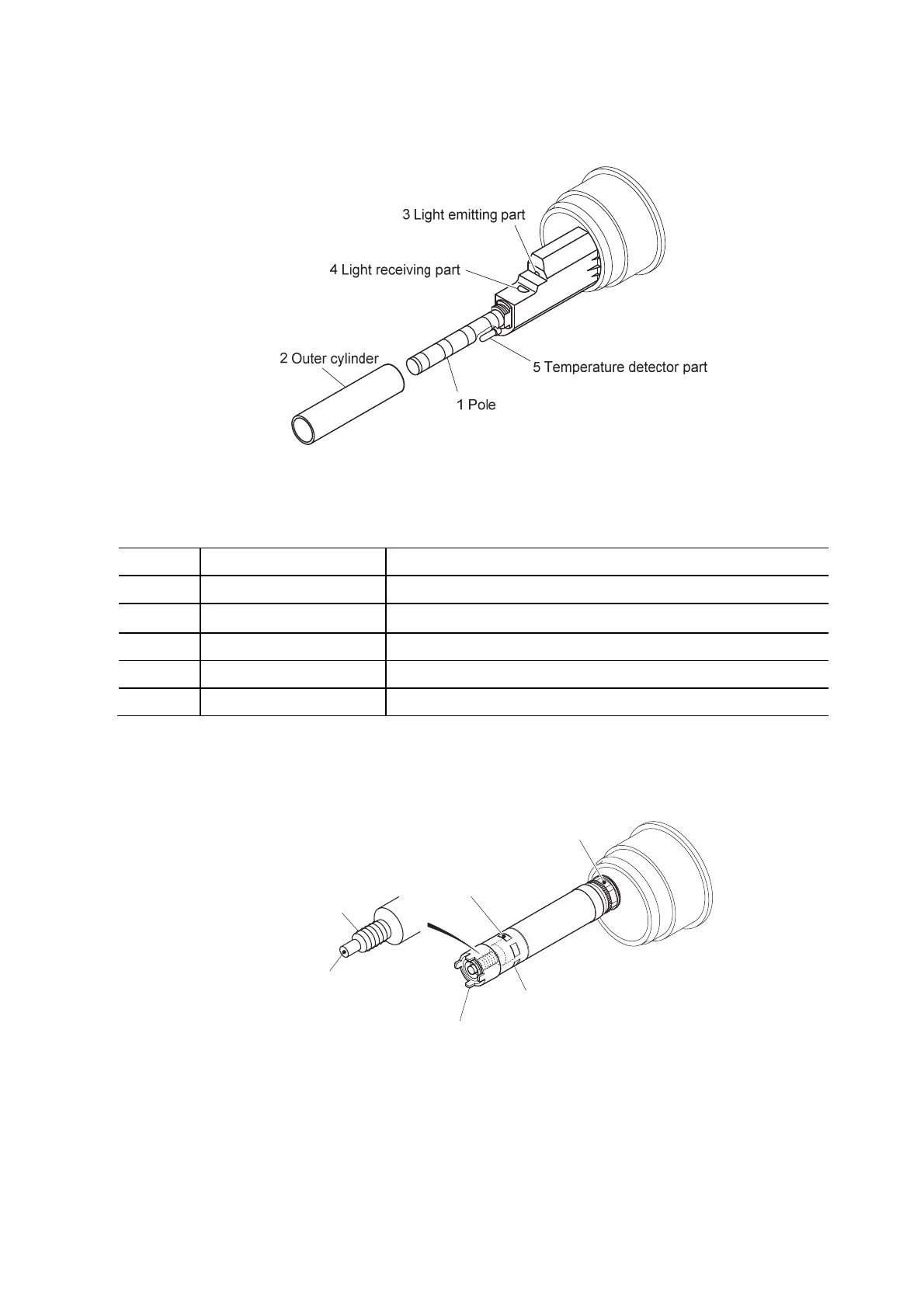

(5) Turbidity sensor, electrical conductivity cell and temperature sensor
Turbidity sensor, electrical conductivity cell and temperature sensor
Part names and description for turbidity sensor, electrical conductivity cell and temperature sensor
Number Name Description
1 Pole
• Electrode for electrical conductivity detection
2 Outer cylinder • Attaches to the electric conductivity cell parts when measuring.
3 Light emitting part • Light emitting part of turbidity sensor
4 Light receiving part • Light receiving part of turbidity sensor
5 Temperature detector part • Detector part of temperature sensor
(6) Dissolved oxygen electrode
(optional)
5 Cathode
6 Anode
1 Diaphragm set
2
Dissolved oxygen electrode
outer cylinder
4 Electrode fixing nut
3 Spanner point
Dissolved oxygen electrode
