Model WQC-30 3. Name and Function of Each Part
-
22
-
(3) Sensor module (Model WMS-30)
10 Dummy cap (without
dissolved oxygen electrode)
3 Protective
cylinder
7 Turbidity sensor
Electrode part
6 Electrical
conductivity cell
1 Plug
4 Cable fixing ring
2 Hook
11 Reinforcing band
9 Dissolved oxygen electrode
(optional)
8 Temperature sensor
5 pH electrode

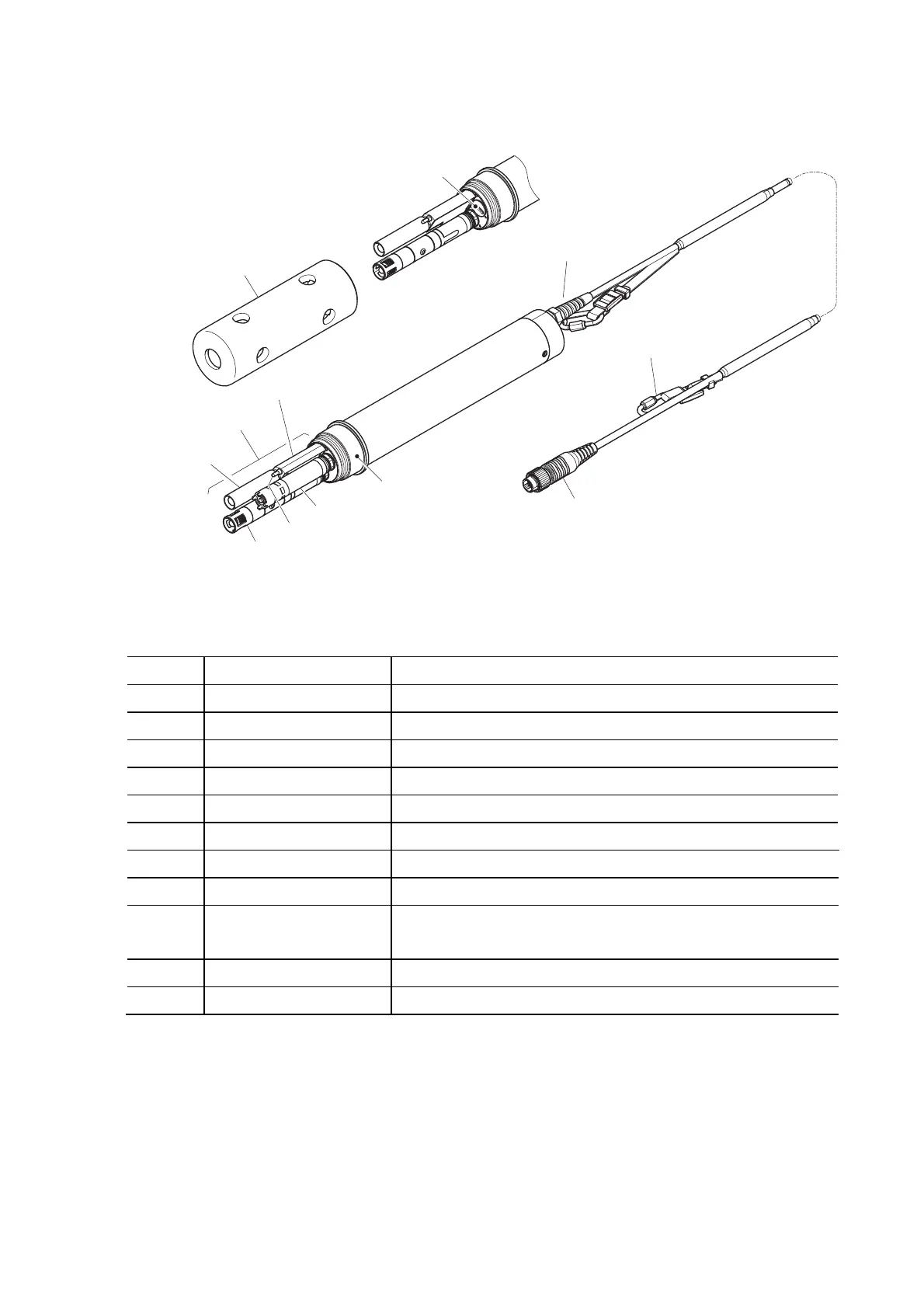

Sensor module (Model WMS-30)
Part names and descriptions for sensor module (Model WMS-30
)
Number Name Description
1 Plug • Plug for connecting the sensor module to the instrument main body
2 Hook • Metal fitting for fixing cable and sensor module
3 Protective cylinder • Cylinder for protecting electrodes, cells
4 Cable fixing ring • Metal fitting for fixing cables to hook or instrument unit
5 pH electrode • Electrode for pH measurements
6 Electrical conductivity cell • Cell used for electrical conductivity measurements
7 Turbidity sensor • Sensor for turbidity measurements
8 Temperature sensor • Temperature detector part
9 Dissolved oxygen electrode
(optional)
• Electrode for dissolved oxygen measurements
10 Dummy cap • Waterproof cap for when dissolved oxygen electrode is not in use
11 Reinforcing band • Rubber part for securing protective cylinder
To Next Page
