XR150/XR350/XR550 User Guide 9Introduction
Trouble tone: A steady tone indicating a trouble condition on your
system. Press a Select key to silence.
DMP Wireless
Your system may have DMP wireless
devices including key fob(s). There
are three types of DMP wireless key
fobs available:
4-Button Model 1145-4-B Key Fob
2-Button Model 1145-2-B Key Fob
1-Button Model 1145-1-B Key Fob

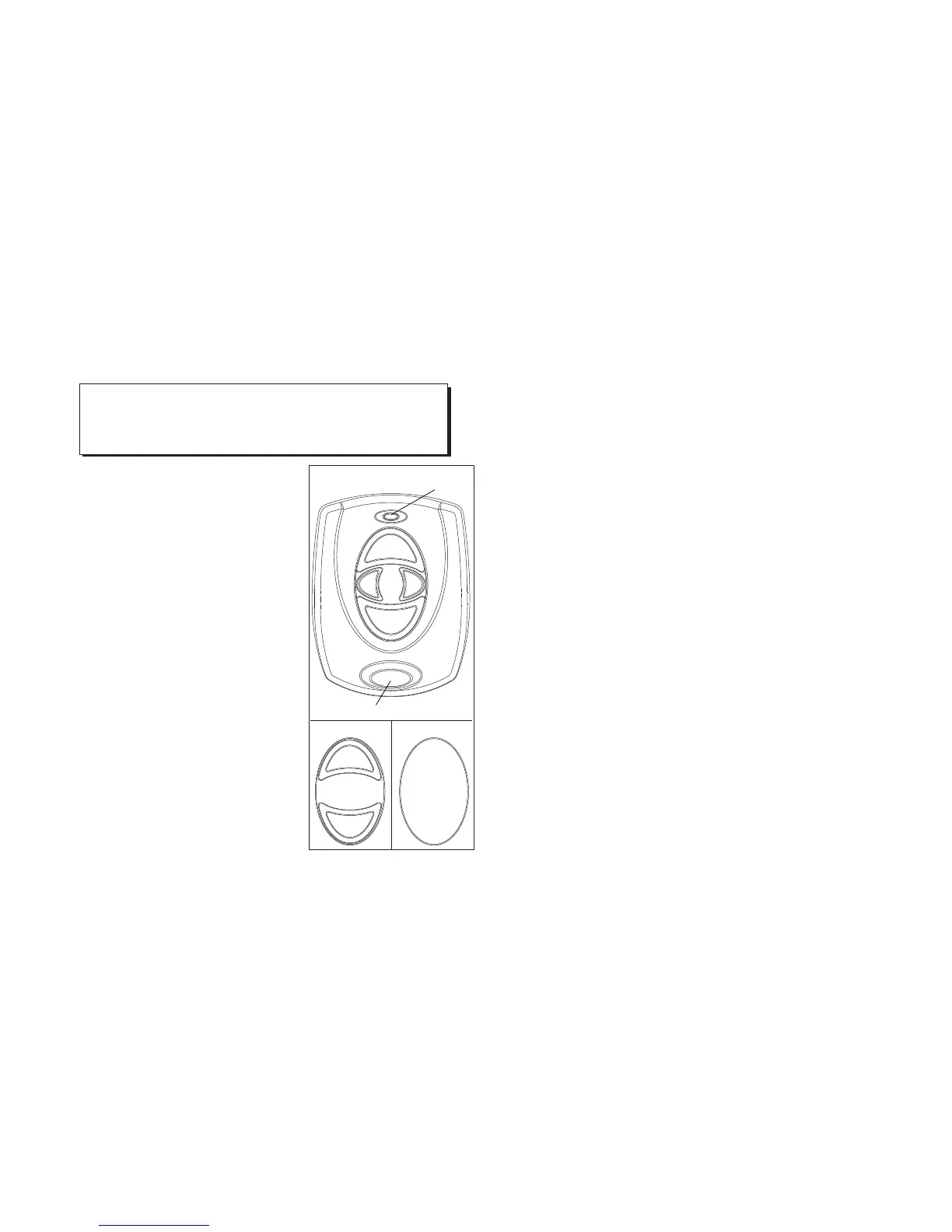

The drawing shows the button layout
for all three models. Each button
on the key fob is programmed to
performaspecicaction.Thebutton
names are listed below.
TOP = the Key Fob Top button
BTM = the Key Fob Bottom button
LFT = the Key Fob Left button
RGT = the Key Fob Right button
The button programming list for the
key fob(s) connected to your system is
located in the System Setup section of
this guide. Refer to Appendix D for LED
Status operation information. Specic
function labels can be added to each
button to indicate button operation.
What to do when the trouble tone sounds
You can silence the trouble tone by pressing any key.
This only silences the keypad and does not correct the
condition that originally caused the trouble.
For best operation, allow the LED to light and turn off before
pressing another button. The key fob may not complete sending
the signal for the button press if another button is pressed too
soon.
If there is no LED light, the battery for your key fob may need
replacing, you could be out of range from the receiver, or the
button is not programmed (programmed unused).
Special Wireless Displays
Your system may use wireless transmitters to send alarm and
trouble information from the protection devices to the panel.
Wireless systems have a few unique keypad displays.
BACK DOOR - LOBAT - (Low Battery) The battery in a wireless
transmitter is low. (BACK DOOR is used as an example only.)
BACK DOOR - MISNG - (Missing) The panel is not receiving the
wireless transmitter periodic test report.
WIRELESS - TRBL - (Trouble) Some part of your wireless system is
operating improperly. Call the service department for assistance.
WIRELESS RECEIVER JAMMED - ALARM - Your system may be
programmed for wireless interference detection and, if displayed,
your wireless receiver has detected a jamming signal while the
system is armed.
WIRELESS RECEIVER JAMMED - TRBL - (Trouble) Your system
may be programmed for wireless interference detection and, if
displayed, your wireless receiver has detected a jamming signal
while the system is disarmed.
Connect Keyring or Lanyard Here
LED
2-Button Layout 1-Button Layout
4-Button Layout
TOP
TOP
BTM
LFT
RGT
TOP
BTM
Key Fob Examples and
Button Names
