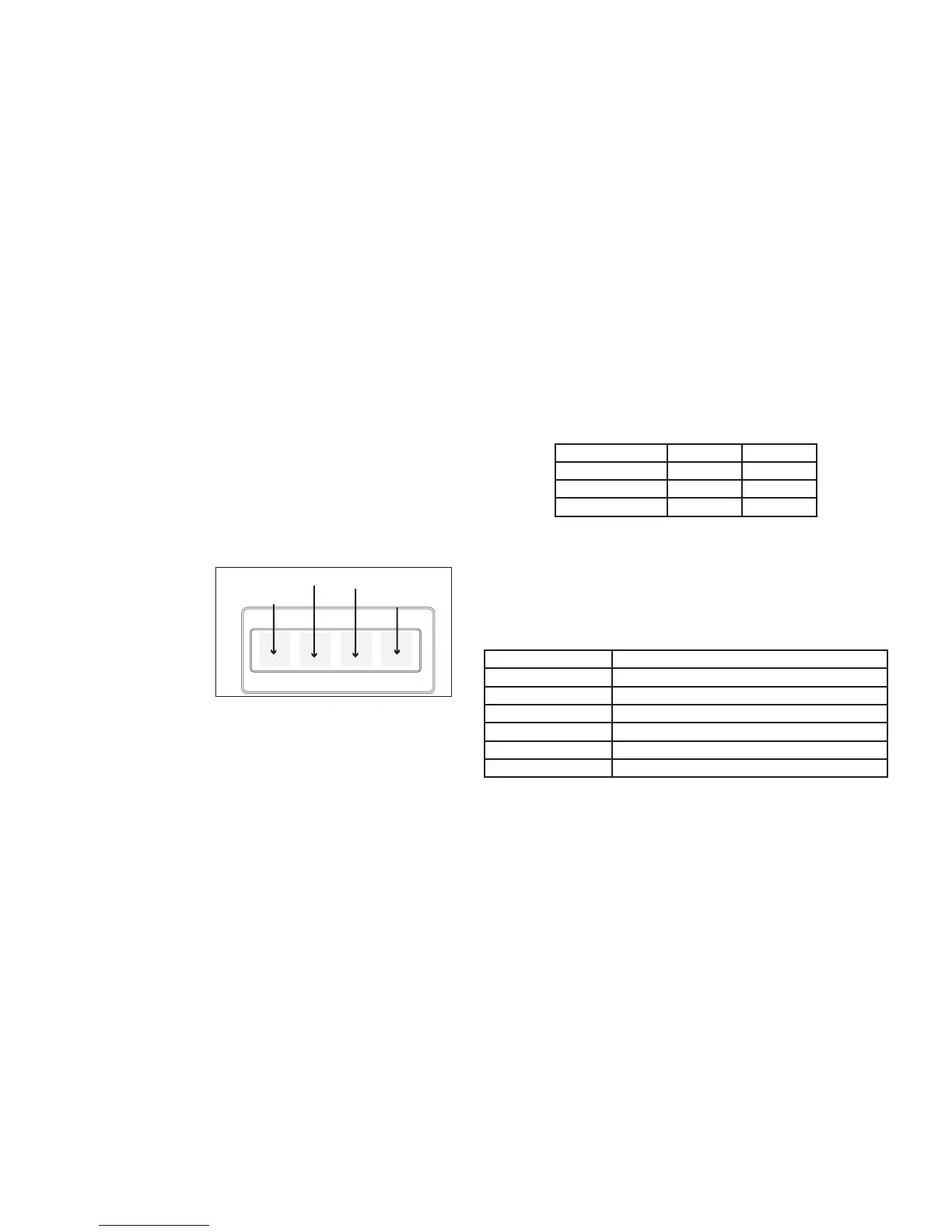

4 XR150/XR350/XR550 User Guide Introduction
Power/Armed LED
Thinline™ and Aqualite™ Keypads:
The Power LED indicates the panel Power status. It is recommended
you contact the service department when the Power LED is off or
blinks.
LED Operation AC Battery
ON (Steady) OK OK
OFF Trouble N/A
BLINKS OK Trouble
The Armed LED is ON steady anytime any burglary protection area
is armed and is OFF when ALL areas are disarmed.
Clear Touch™ and Graphic Touchsreen
Keypads:
The LED indicates the Power and Armed status of the panel.
Depending on the operation, the LED displays in Red or Blue as
listed in the table.
Color and Activity LED Operation
Blue Steady Panel Disarmed, AC Power OK, Battery OK
Blue Blinking Panel Disarmed, AC Power OK, Battery Fault
No Light Panel Disarmed, AC Power Fault, Battery OK
Red Steady Panel Armed, AC Power OK, Battery OK
Red/Blue Alternate Panel Armed, AC Power OK, Battery Fault
Red Blinking Panel Armed, AC Power Fault, Battery OK
The Select keys
Thinline™, Aqualite™ and Wireless Keypads:
There are four keys under the display called the Select keys. These
keys are one of the features that make your system so easy to
operate. They allow you to make selections by pressing the Select
key under a choice shown in the display.
Note: For the purposes of this guide, when instructed to press the
rst Select key, press the far left Select key; the second
Select key is the second from the left; third Select key is
secondfromtheright;andthefourthSelectkeyisthefar
right key.
Clear Touch™ and
Graphic Touchscreen
Keypads:
There are four Select
Areas in the display. These
Select Areas are one of the
features that make your
system so easy to operate.
They allow you to make
selections by touching the
area to choose the item in
the display.
Note: For the purposes of this guide when using Clear Touch™ or
Graphic Touchscreen Keypads, when instructed to press the
rstSelectkey,touchSelectArea1;thesecondSelectkey
touch SelectArea 2; third Select key touch SelectArea 3;
and the fourth Select key touch Select Area 4.
32-Character Display
Select Area 1
Select Area 2
Select Area 3
Select Area 4
Clear Touch/Graphic Touchscreen
Select Areas
