XTL/XTLC Programming Guide Digital Monitoring Products
3
INTRODUCTION
1.6 Keypad
Connect up to four DMP 9060 and 9063 Wireless LCD Keypads to the XTL/XTLC panel. The operation is
shown and described in the following sections.
1.7 Special Keys
The following special keys are common to all DMP keypads.
COMMAND (CMD) Key
Pressing the COMMAND key allows you to go forward through the programming menu and through each
step of a programming sec tion. As you go through the programming, the keypad display shows any current
programming already stored in the panel memory. If no change is required for a prompt, press the
COMMAND key to advance to the next step.
The COMMAND key is also used to enter information into the panel’s memory such as phone numbers or
zone names. Press the COMMAND key after entering information.
Back Arrow (<—) Key
Use the Back Arrow key to back up one step while programming. The Back Arrow key is also used when
an error is made while entering in formation. Press the Back Arrow key once to erase the last character
entered.
Select Keys
The top row of keys are called the Select keys on the 9000 Series Wireless Keypad.
Each time you need to press a Select key on 9000 Series keypad, the keypad displays the function or
options above one of the keys. Displaying choices above individual Select keys allows them to be used for
many different applications. For example, you can enter AM or PM when programming the automatic test
time or answer YES or NO for a system option.
During programming, the Select keys also allow you to change infor mation currently in panel memory by
pressing the appropriate Select key under or on the display. You then enter the new information using the
keypad data entry digit keys. The Select keys are also used for choosing a section from the pro gramming
menu. When the programming section name you want displays, press any Select key.
When there are more than four re sponse options avail able, press the COMMAND key to display the next
one to four options. Pressing the Back Arrow key allows you to review the previous four choices.
Note: When instructed to press the rst Select key, press the far left Select key; the second Select key
is the second from the left; third Select key is second from the right; and the fourth Select key is the far
right key. See Figure 2.
1.8 Entering Alpha Characters
Some options during programming require you to enter alpha
characters. To enter an alpha character, press or touch the
key that has that letter written below it. The keypad displays
the number digit of the key. Next, press the Select key that
corresponds to the loca tion of the letter under the key.
Pressing a different Select key changes the letter. When an-
other digit key is pressed, the last letter displayed is retained
and the process starts over.
32-Character Display
Data Entry Digit keys
COMMAND Key
Back Arrow Key
Select Keys
1 2 3 4
9 0 CMD
5 6 7 8
SMITH HOME
FRI 2:51 AM
Backlit Logo
and Proximity
Antenna

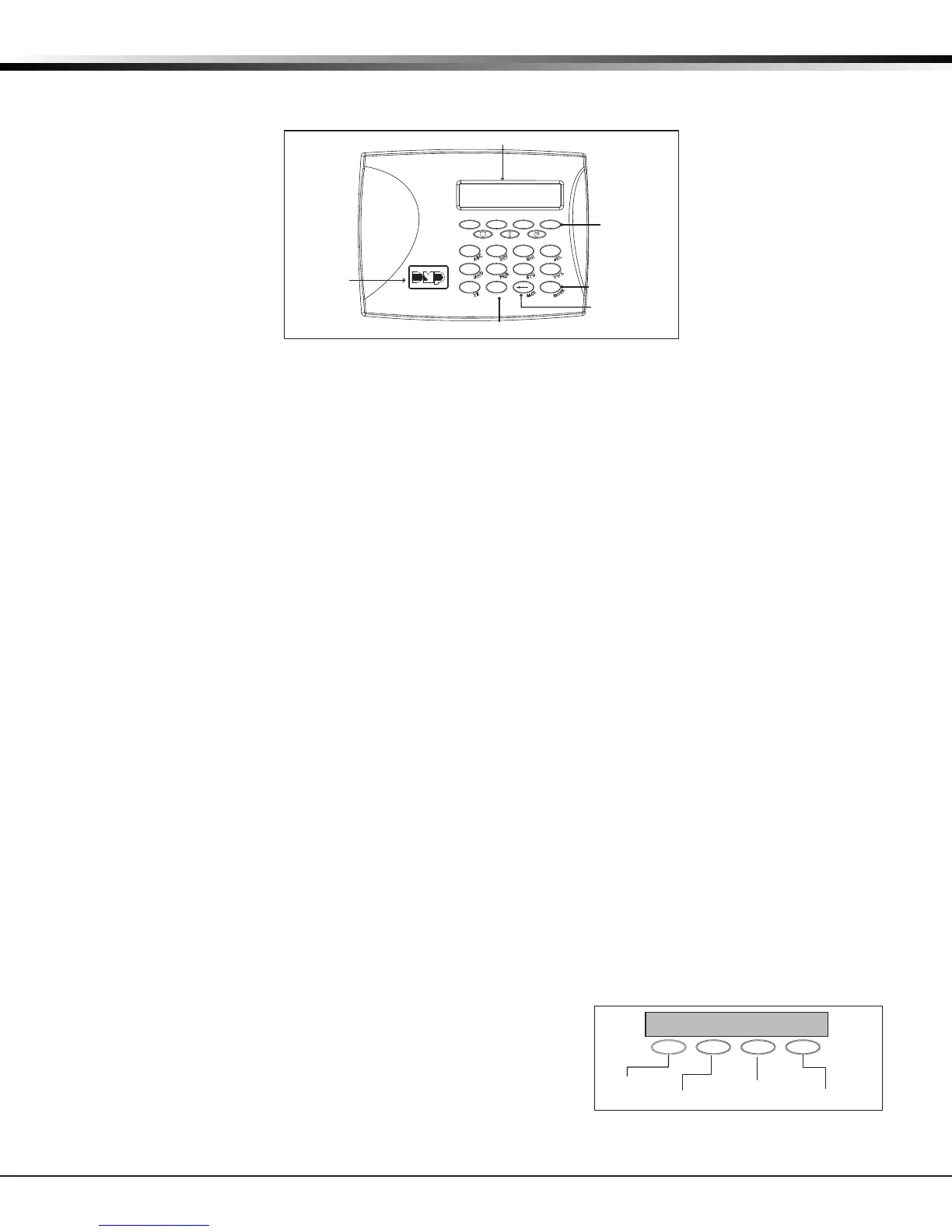

Figure 1: 9000 Series Wireless Keypad
First Letter
Second Letter
Third Letter
Special Character
(CBA
Figure 2: 9060/9063 Select Keys
