2. F6300 Front Panel
Located on the instrument front panel (Figure 2.1) are:
• Outputs for six 150 VA current sources
• Communication ports
• Low level input connection
• On/Off switch and AC power connection
• Sync port (for future use)
Control of all test functions is accomplished from a computer.

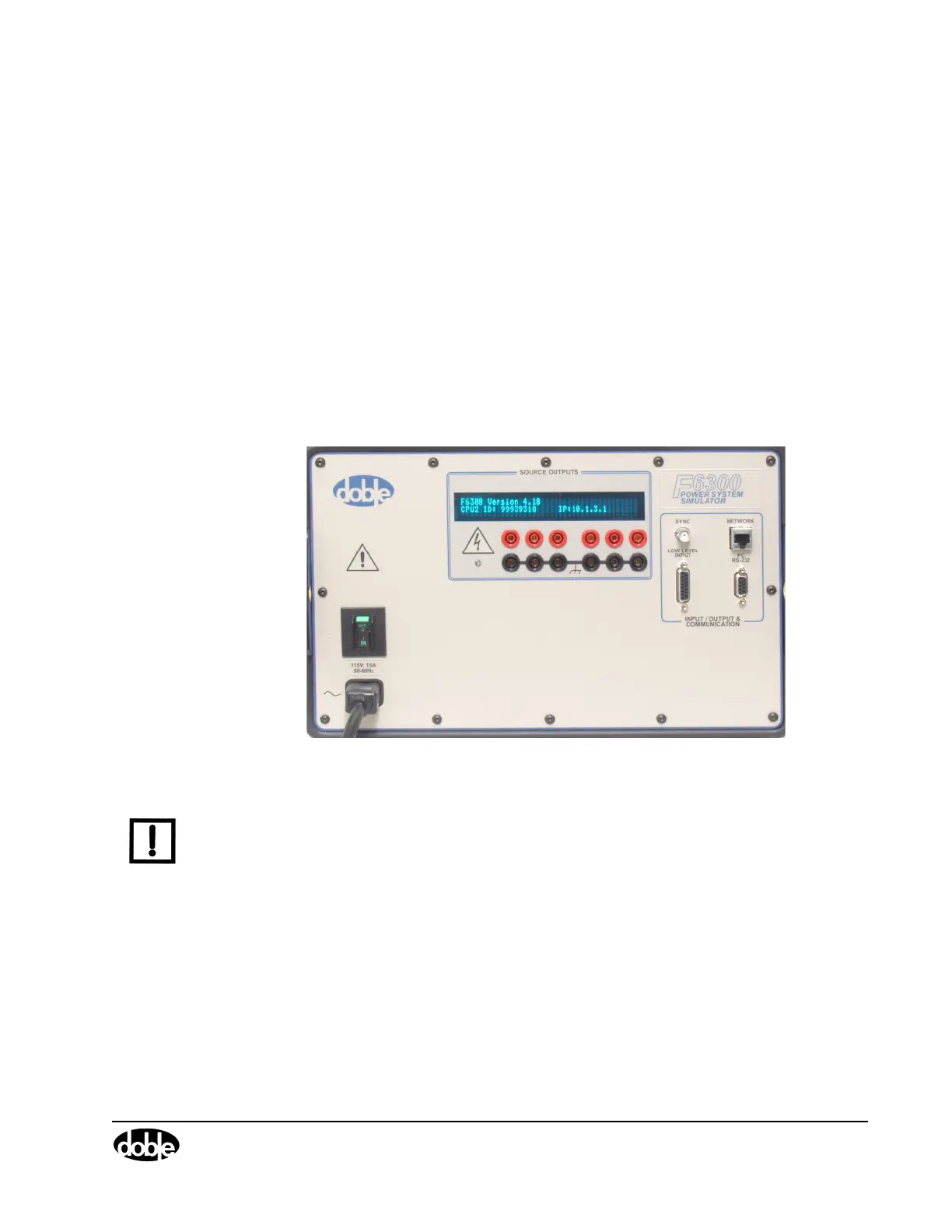

Figure 2.1 Front Panel
NOTE Figure 2.1 shows an instrument that contains the CPU2 CPU board. The CPU2 F6300 contains
a RJ45 CAT5 network connector and the CPU1 F6300 contains a 10 Base 2 network connector.
Source Outputs
The Source Outputs section of the relay F6300 front panel contains outputs for AC/DC current
sources.
