F6300 Power System Simulator User Guide
72A-2337-01 Rev. B 11/05 D-5
Phase Shift Testing
To perform the Phase Shift test on a 150 VA High Current source at 50 or 60 Hz:
1. Configure the F6300 for six currents using the Pre-set Configurations on the F6300
Configuration display in ProTesT.
2. Set all six ranges to 7.5 A and all amplitudes to 5 A.
3. Set all six phase angles to 0°.
4. Connect source I1 to the reference input of the phase meter.
5. Connect source I1 to the signal input of the phase meter.
6. Turn both sources ON.
7. Verify that the phase angle is within ± 0.25°.
8. Turn OFF the signal source.
9. Repeat steps 5 through 8 for sources I3, IR, IS, and IT as signal sources.

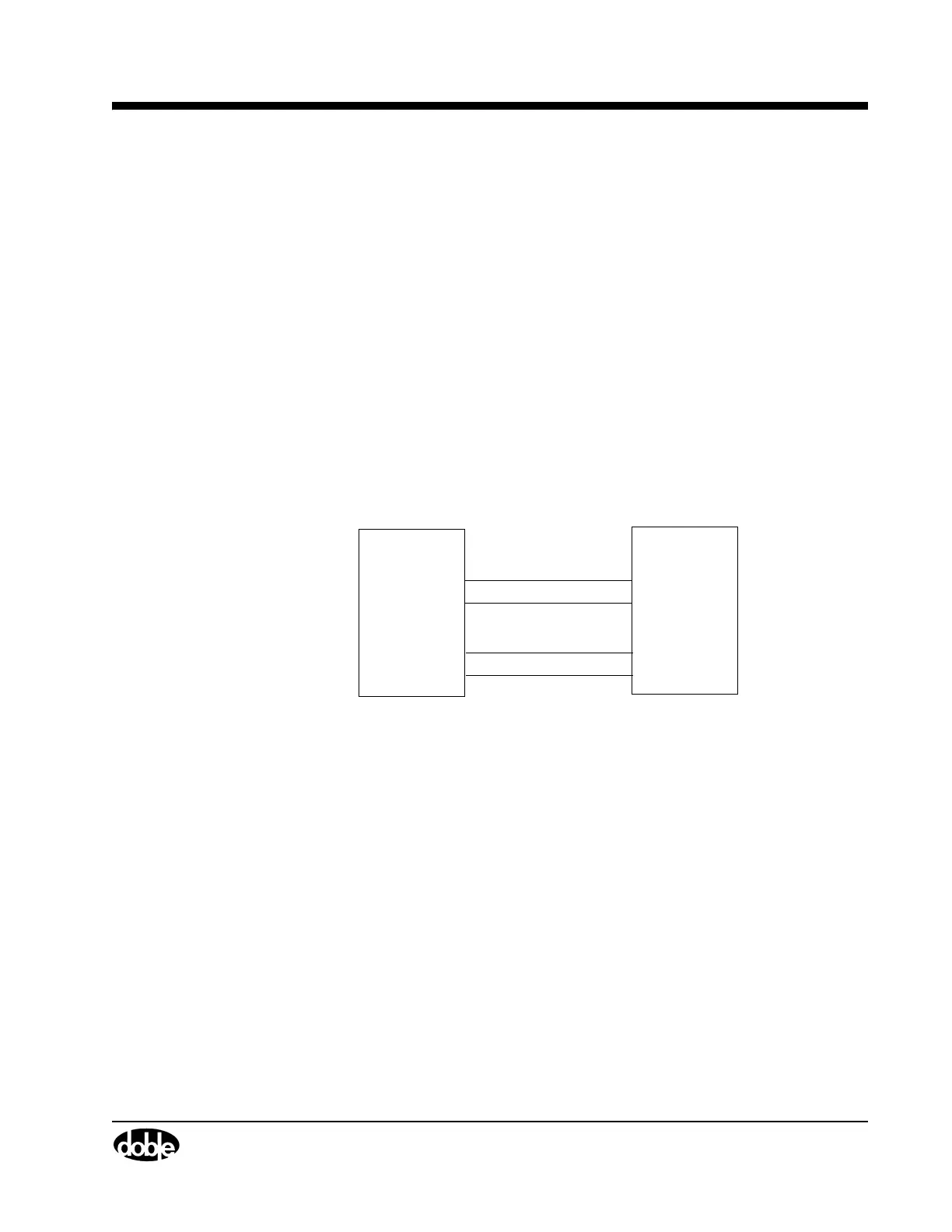

Figure D.3 shows a typical setup for phase testing six Current Sources. The phase meter shown is
an Arbiter model 931 A.
F6300
Instrument
I1
I2
Phasemeter
Reference
Signal
Figure D.3 Typical Setup Phase Testing Six Current Sources
