72A-2337-01 Rev. B 11/05 B-1
Appendix B. Configuring Windows for
Ethernet Communications
Configuring the Control PC
To configure Windows 98/2000/NT/XP for communication with the F6300 on a private network:
1. Right-click the Network icon on the desktop and select Properties for all supported Windows
systems and the Network window appears (
Figure B.1).

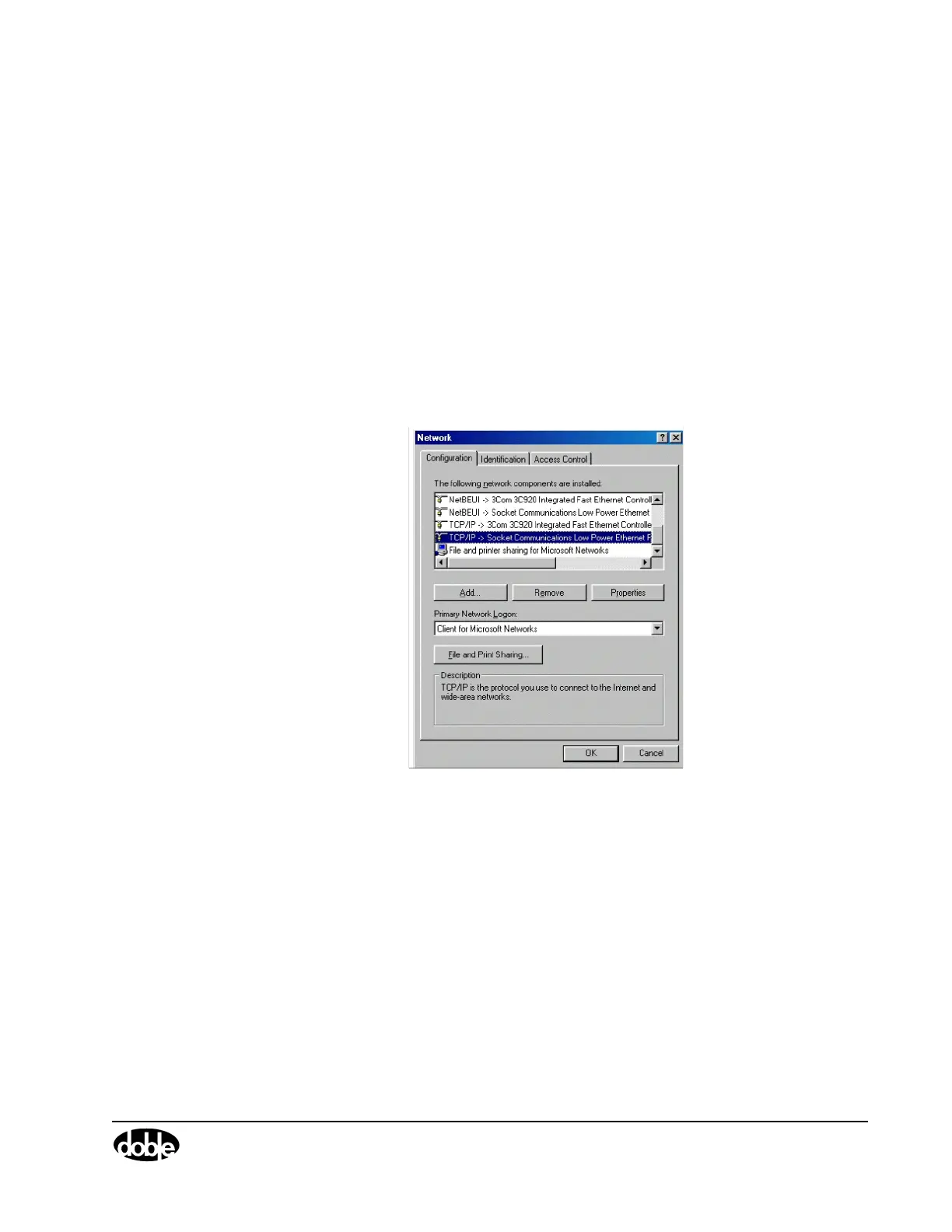

Figure B.1 Network
2. Scroll down the list of network components in the Configuration tab and select the
component that corresponds to the Ethernet card in the control PC.
3. Click Properties underneath the list of network components. The TCP/IP dialog box opens
(
Figure B.2).
