1. Introducing the F6300
The 6300 High Power Current Module (Figure 1.1), used in conjunction with the F6150 Power
System Simulator, provides you with realistic power system simulation for protection schemes.
The F6300 has two groups of three current sources, six in total. Each source is rated at 150 VA of
continuous power or 225 VA of power for 1.5 seconds. Also, each group can be configured as
one source at 450 VA of continuous power or 675 VA of power for 1.5 seconds. The F6300
provides:
• Six 150 VA current sources
or
• Two 450 VA current sources

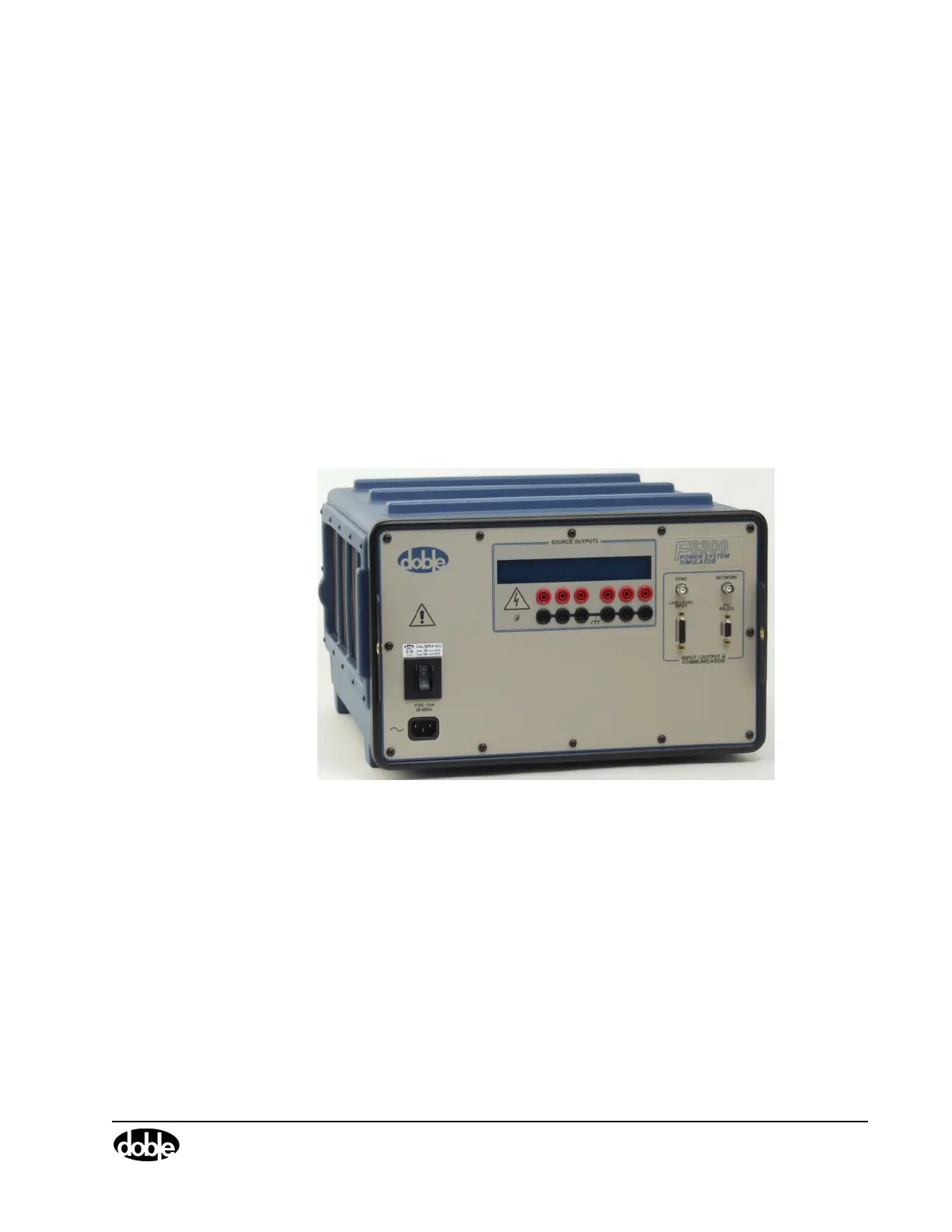

Figure 1.1 F6300
Configuration of the sources is internal and independently controlled by a computer to meet
diverse requirements for various relay tests. By configuring the current sources in series or in
parallel, the F6300 yields more power for testing high burden relays or protection schemes.
