F6300 Power System Simulator User Guide
72A-2337-01 Rev. B 11/05 4-9
High Voltage Power Supply Circuit Board
F6300 instruments has a power supply board (04S-0794-01) that has an integrated Variable
Output Battery Simulator. This board is located in slot 11 (
Figure 4.6).

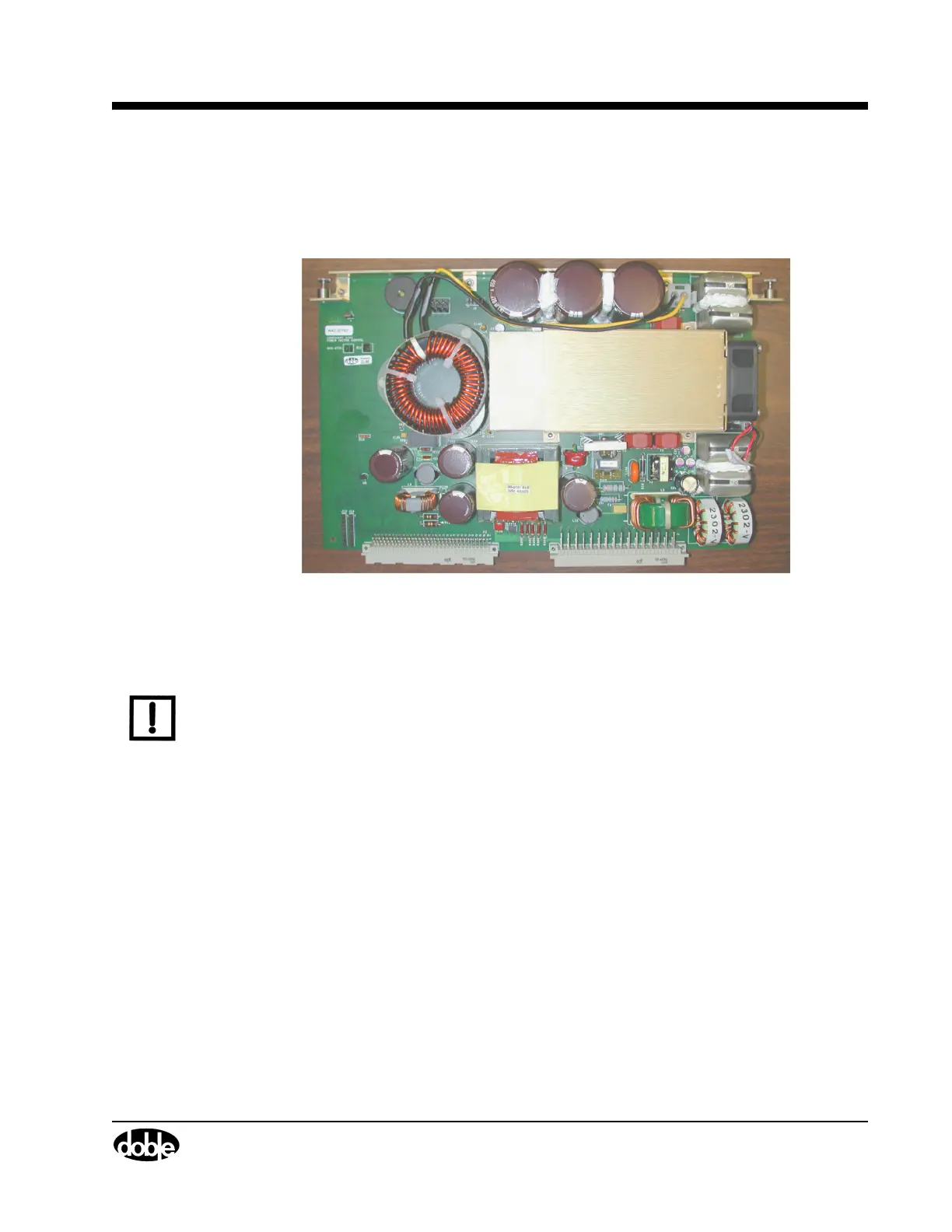

Figure 4.7 High Voltage Power Supply Circuit Board
If the board is diagnosed to be defective, just remove it in the same manner as the other circuit
boards.
NOTE This unit supplies the + 350 VDC to amplifiers and the variable output battery simulator power.
Fuses The 3 A fuse is located on the power supply board at F1.
