Configuring the Control PC
B-2 72A-2337-01 Rev. B 11/05

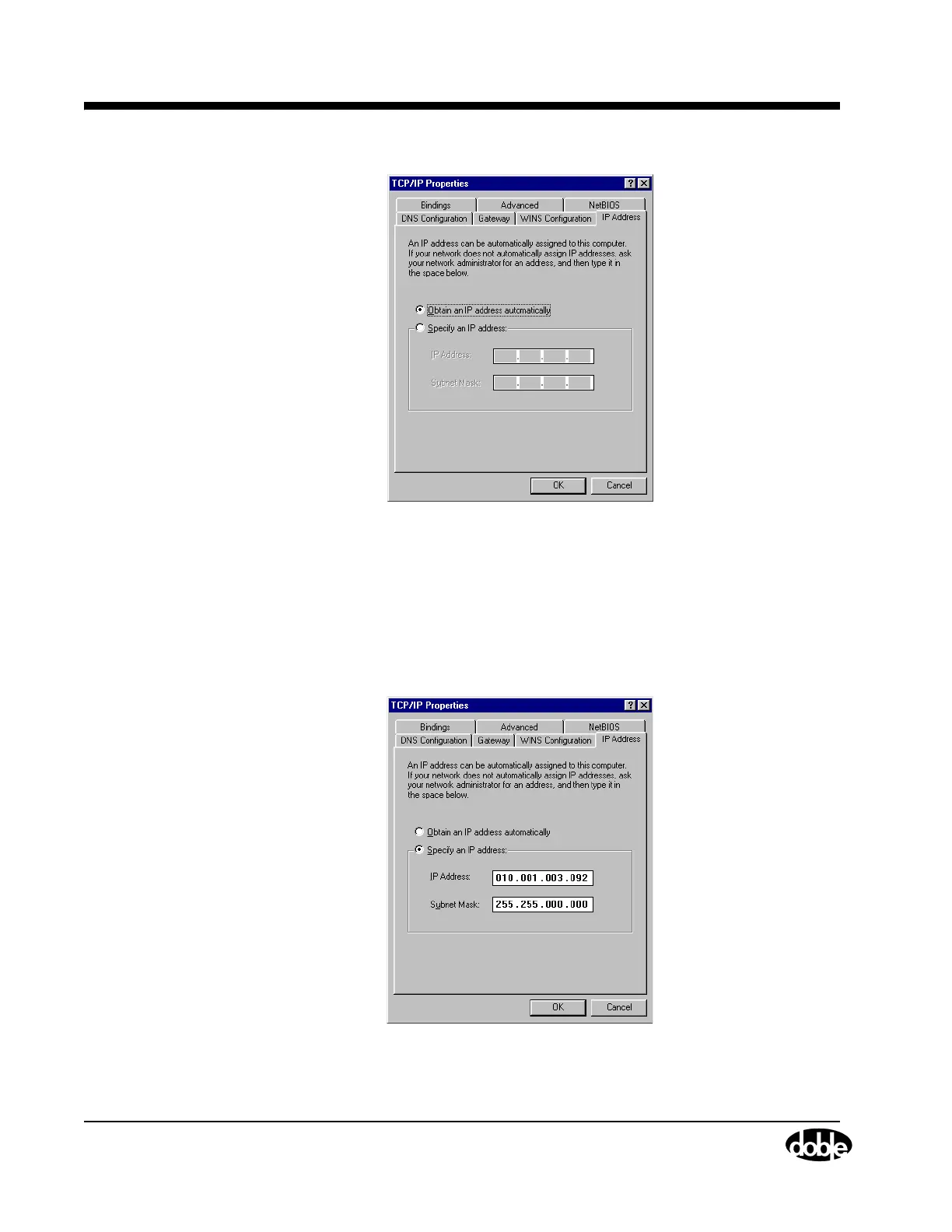

Figure B.2 TCP/IP Properties
4. Select the IP Address tab in the TCP/IP Properties dialog box.
5. Select the radio button for Specify an IP address.The IP Address and Subnet Mask fields
become available.
6. Enter an IP address in the IP Address field, close to, but different from the IP address that is
displayed on the F6150 after it is turned on.
7. Enter the subnet mask in the Subnet Mask field (Figure B.3).
Figure B.3 TCP/IP Properties
8. Reboot the computer to effect these changes if required.
