CPU2 F6150
CPU2 F6300
(401-0244)
10BaseT/10Base2 HUB
DB9 - DB9 Modem Serial (401-0167)
Cable to/from the PC Serial Port or USB-
Serial Adapter and the CPU2 F6150
PC RS 232 connector.
CAT5 or better Ethernet cables
(
401-0243 ) to/from the NETWORK
connector on the CPU2 F6150
and the HUB and the NETWORK
connector on the CPU2 F6300
and the HUB.
Serial Communication to F6000 Instruments
2-12 72A-2337-01 Rev. B 11/05

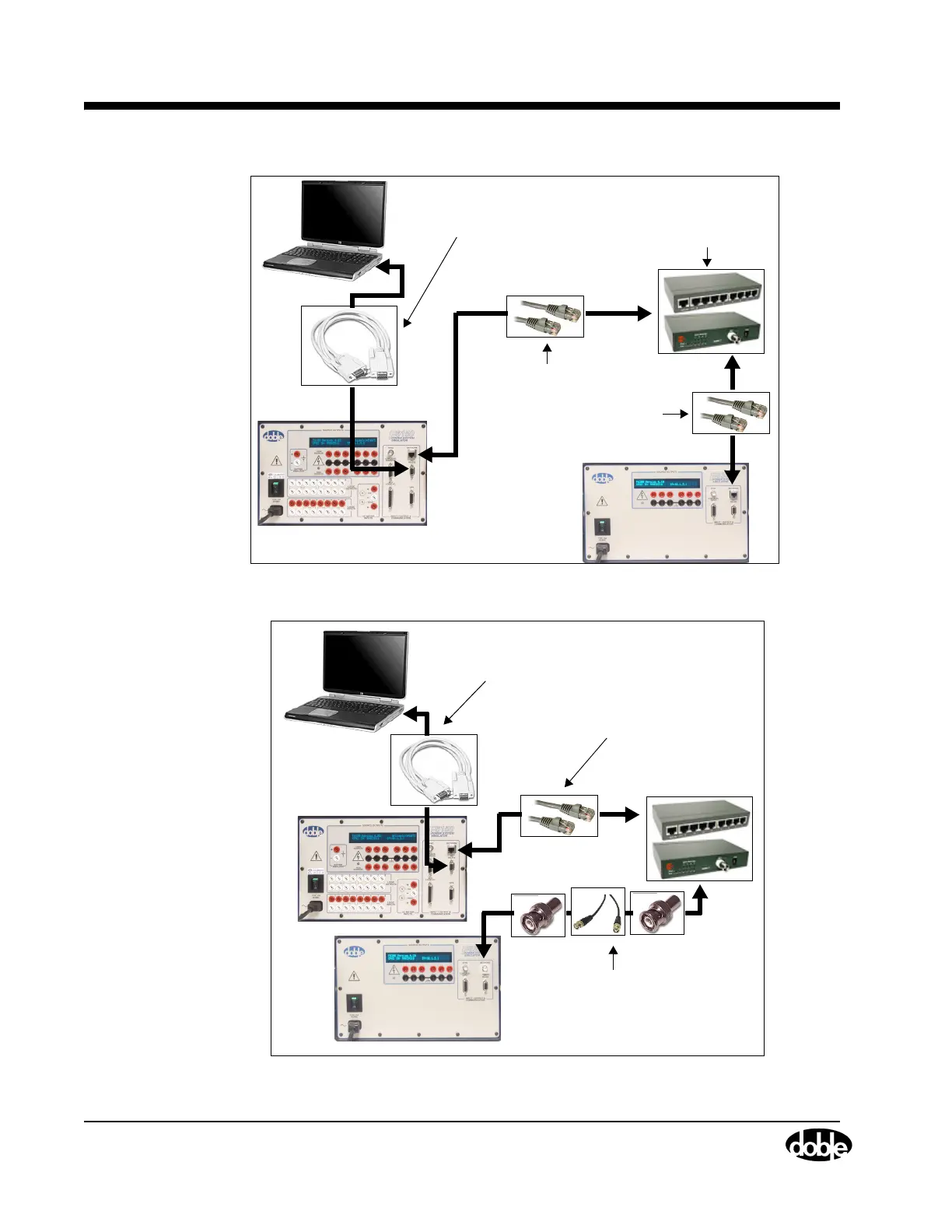

Figure 2.14 Computer to CPU2 F6150/CPU2 F6300 with Hub/Switch
10BaseT/10Base2 HUB
for 10/100 Switch
CPU2 F6150
CPU1 F6300
CAT5 or better Ethernet cables
(
401-0243 ) to/from the NETWORK
connector on the CPU2 F6150
and the HUB.
BNC-BNC RG58 50Ω Coaxial cable
(181-0118) with 50Ω terminators
(401-0157) on both ends of the cable
to/from the HUB and the CPU1 6300
NETWORK connector.
(401-0244)
DB9 - DB9 Modem Serial (401-0167)
Cable to/from the PC Serial Port or USB-
Serial Adapter and the CPU2 F6150
PC RS 232 connector.
Figure 2.15 Computer to CPU2 F6150/CPU1 F6300
