CT100 inverter Detailed instructions of function parameters
112
.

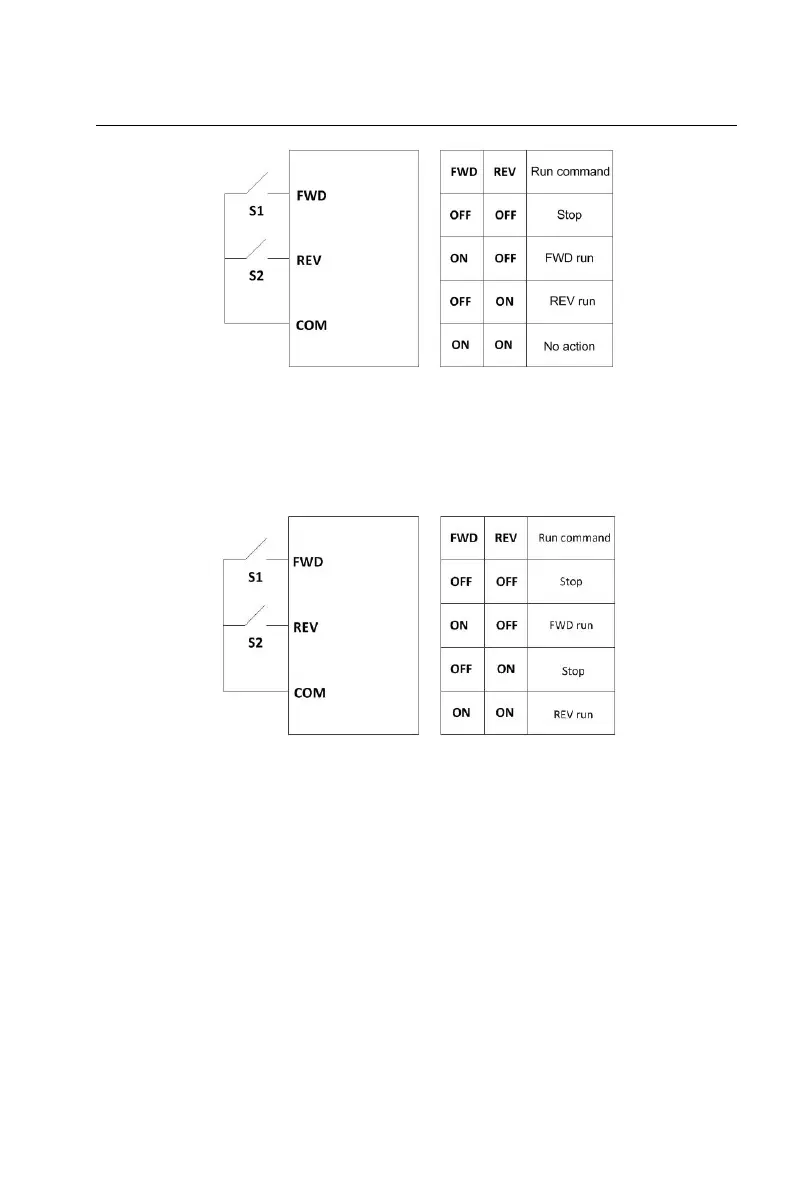

Figure 6-7 Two-wire control
1: two-wire control mode 2
Enabling is separated from direction. START/STOP command is determined by
FWD terminal. Direction is determined by REV terminal.
.
Figure 6-8 two-wire control 2
2: three-wire control mode 1
This mode defines the three-wire running terminal (THREE) as the enabling
terminal. The running command will be generated by FWD and the direction will
be controlled by REV. When THREE switches off, the system will stop.
