D439E Service Manual 5. Service Tool
306
Starting the Record Mode
1. In the selection box of <Figure 1>, select the Record Mode using the stylus pen or
buttons and press button or , then <Figure 2> screen will be shown.

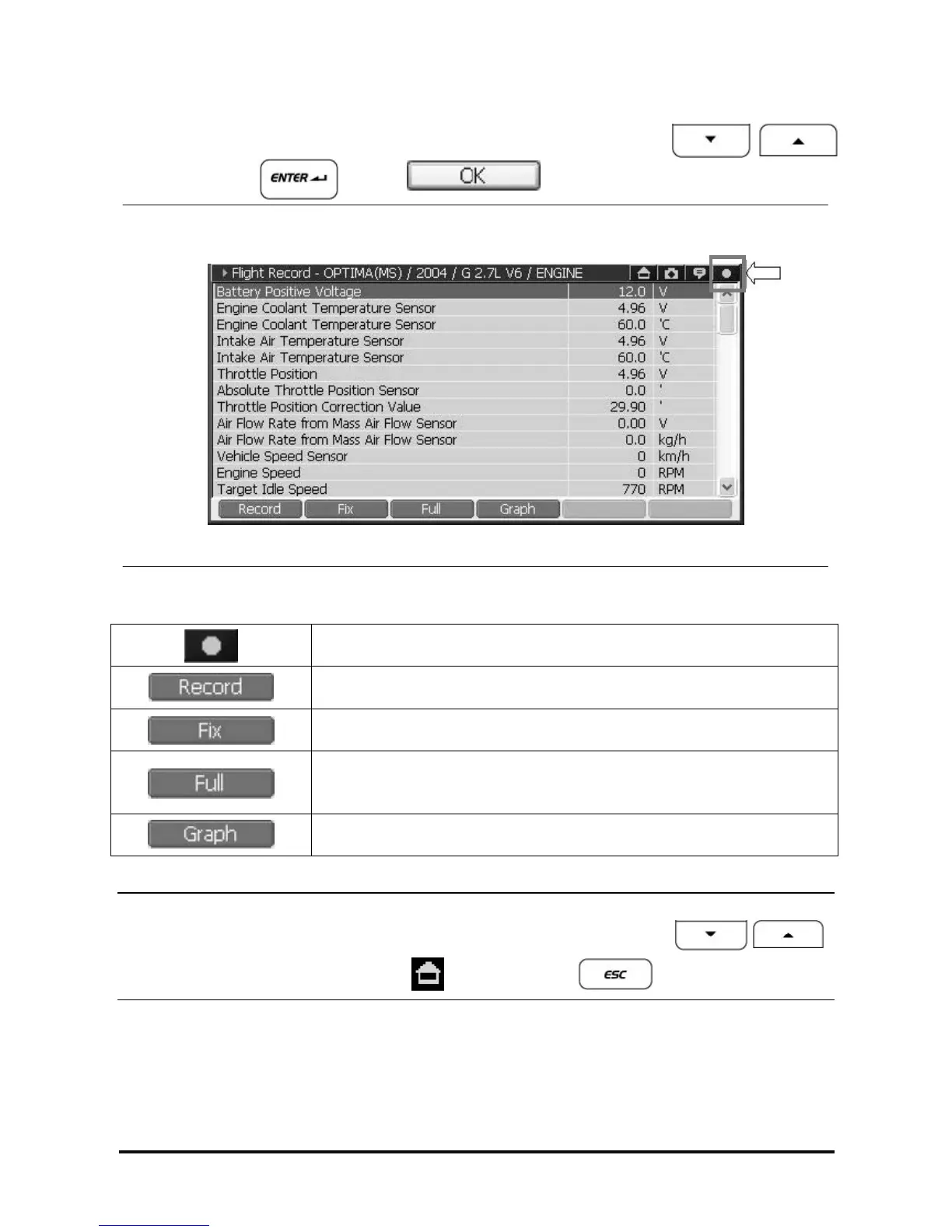

<Figure 2: Flight Record Main Screen>
Recording check lamp. During recording data, it turns on in red.
(Normal: black, Record: red)
Starts recording selected item.
Selects the item for recording.
Separating the service data screen into two(left & right), 26 data are shown in
the screen at maximum.
* In Full mode, Recording is not supported.
Selected item can be shown in graph.
NOTICE
• When item is not shown, move the right scroll bar using the stylus pen, or pressing
buttons to find.
• If you want to return to main screen, select on top right side or button.
