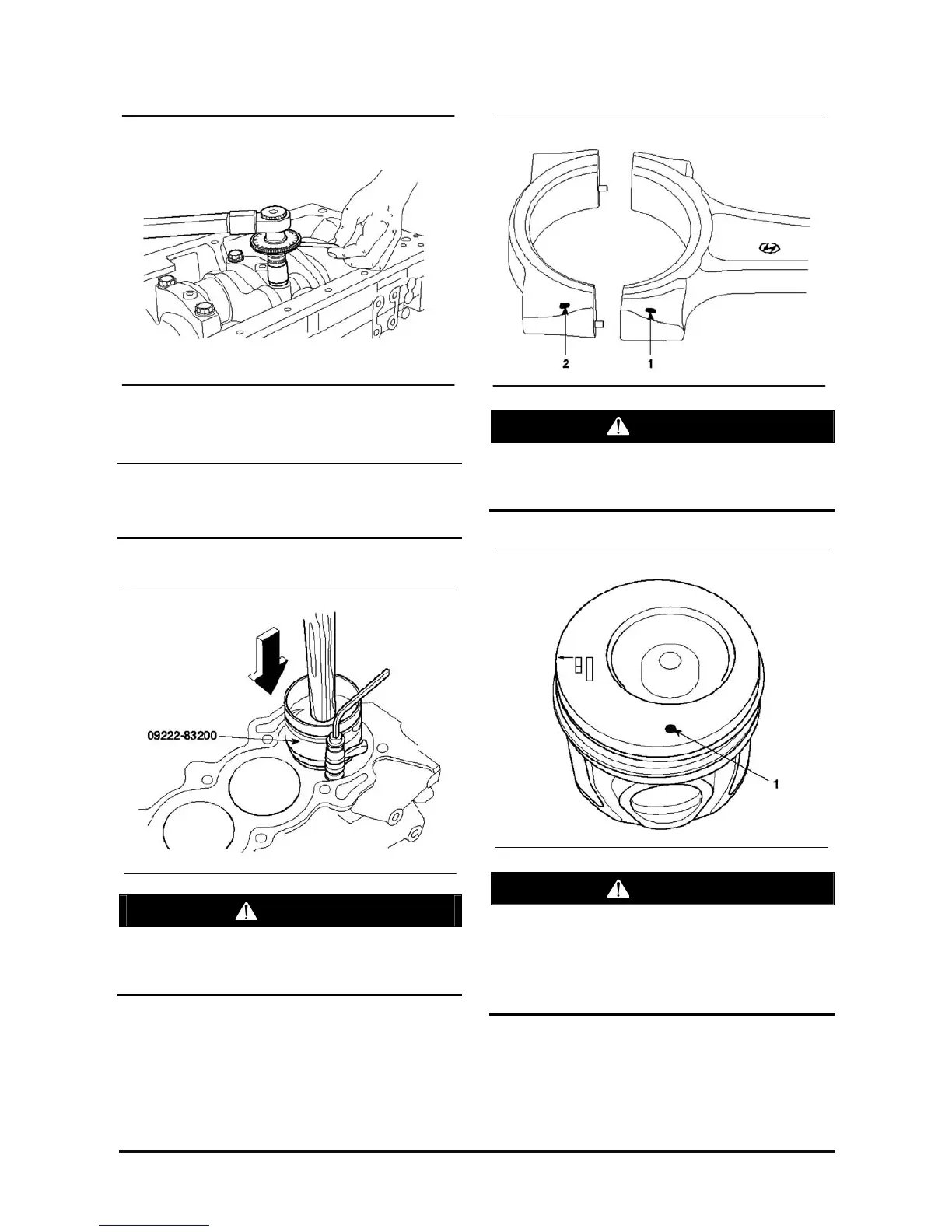

c. Install the main bearing cap with the specified
torque.
Tightening torque : 49.0 Nm + 90°
(5.0kgf.m + 90°, 36.4 Ib-ft + 90°)
5. Install piston and connecting rod assembly.
CAUTION
Install piston and connecting rod to the
crankshaft pin journal using the special tool
(09222-83200).
CAUTION
When installing connecting rod cap, align mark
(1) on connecting rod big end cap with mark (2)
on connecting rod cap.
CAUTION
When installing piston, assemble it so that front
mark (1) of the piston face to the front side.
Assemble so that the arrow mark (→) of piston
head faces to the center of cylinder head bolt
hole.
