19
3. Machine Anchoring Operation

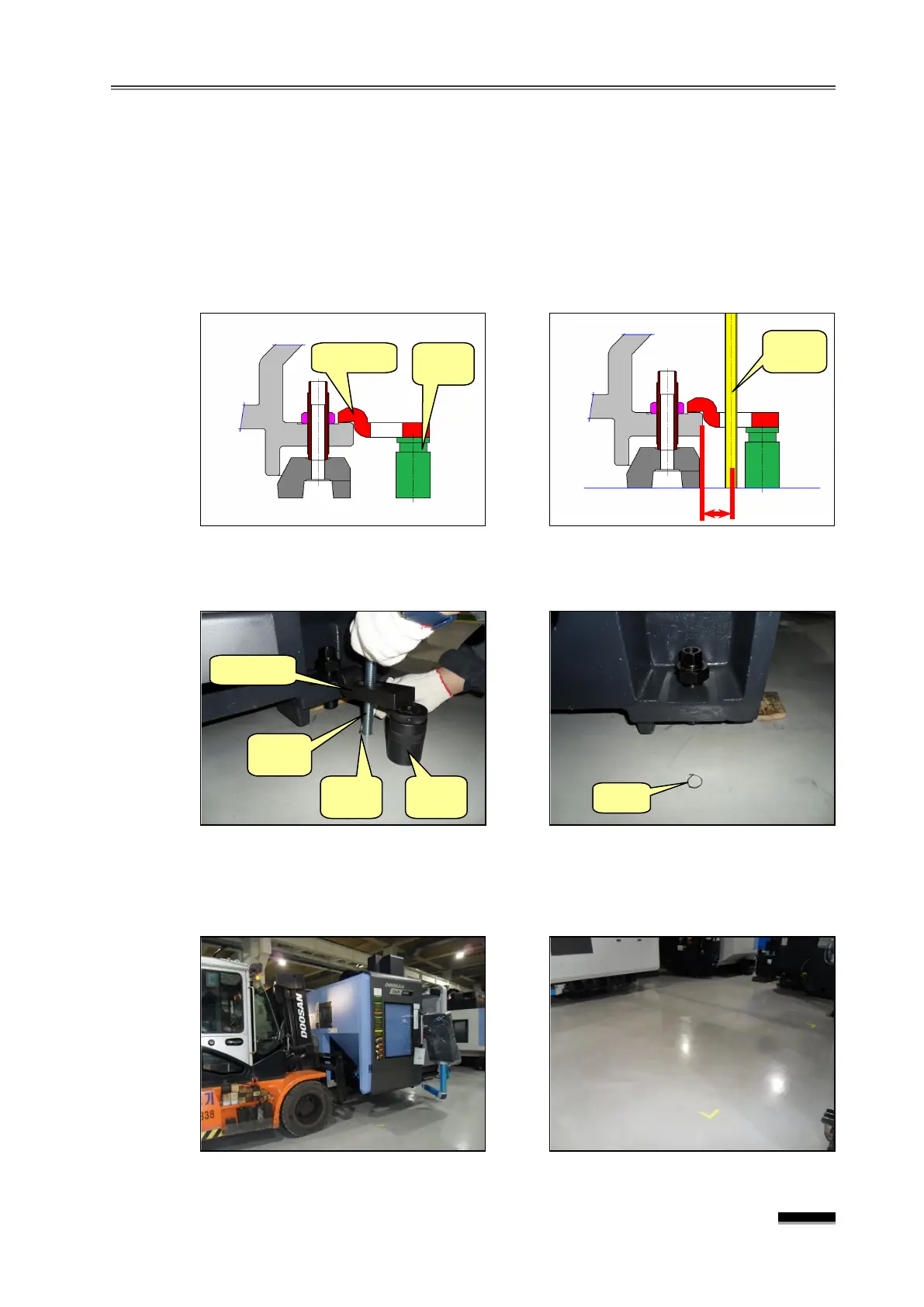

2) Anchor position marking
① Install a screw jack in front of the 4 leveling bolts (out of the 6 leveling bolts on the
bed), put the Z-clamp on it against the bed, adjust the Z-clamp so that it is parallel to
the ground surface by adjusting the height of the jack screw, and insert the
into the groove of the Z-clamp and place it in the upright position when it touches the
ground.
▪ Erect the clamp bolt at a point 50mm away from the end of the machine.
② While the clamp bolt remains in the upright position, use a marker to mark a circle on
the areas where it touches the ground surface. (4 areas)
Moving the machine
After marking the anchor position, move the machine away so that it does
drilling to be performed on the marked position.
To Next Page
