Doosan DVF5000 - DCP-i Compensation

84
7. Adjustment of reference points of respective axes and manual TCP adjustment

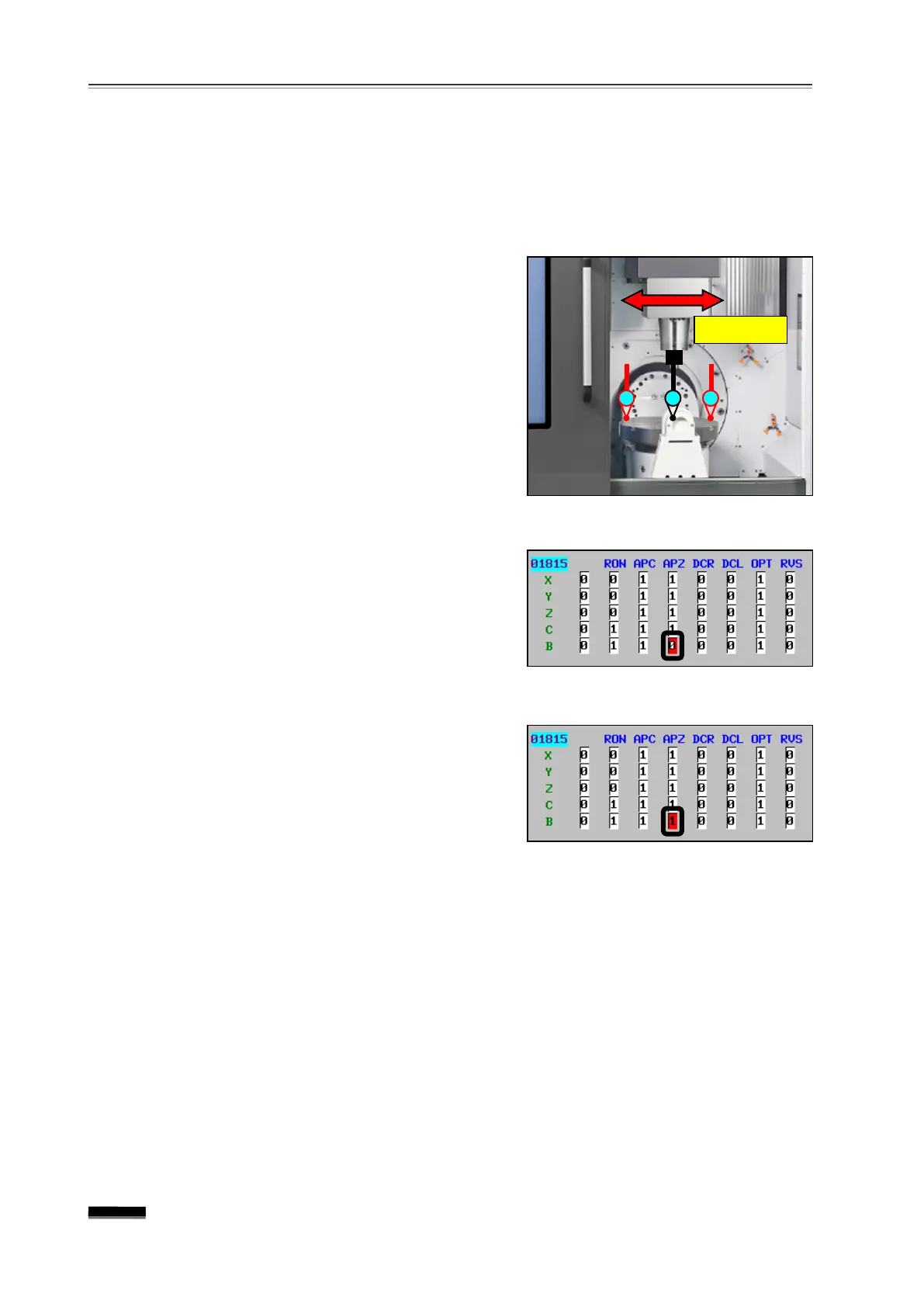

7.3 B-axis reference point resetting (B-axis Stroke : B-30° ∼ B110°)
The axis B is subject to the absolute zero
-
point setting method, so the zero point should be
reset by the parameter setting.
1) B
-axis horizontal adjustment
(2) Measure the table top in the X-
axis direction
after setting up an indicator on the spindle and
adjust the B-axis in the Handle Mode until both
ends become
“0. ”
2) Change
the Parameter #1815 B row b4(APZ)
from
“1 ”  to “0 ”.
☞
“P/S Alarm 000 Must Turn Off Power”
and “P/S Alarm 300 nAxis Need ZRN” will
be triggered.
3)
Once again, change the Parameter #1815 B
row b4(APZ) from
“0”  to “1” and then
turn
NC Power “Off ” and “ On”.
☞ When the alarm is canceled, the B-axis
position on the screen changes to "B0.000".
X direction
