4. Machine Power-up
4. Machine Power-up
4.1 Oil Cooler Connection
Place the oil cooler to its or
iginally intended position which was removed from the machine
unit at the time of shipping and separately transported, and connect various hoses and
wires that were removed for the shipping.

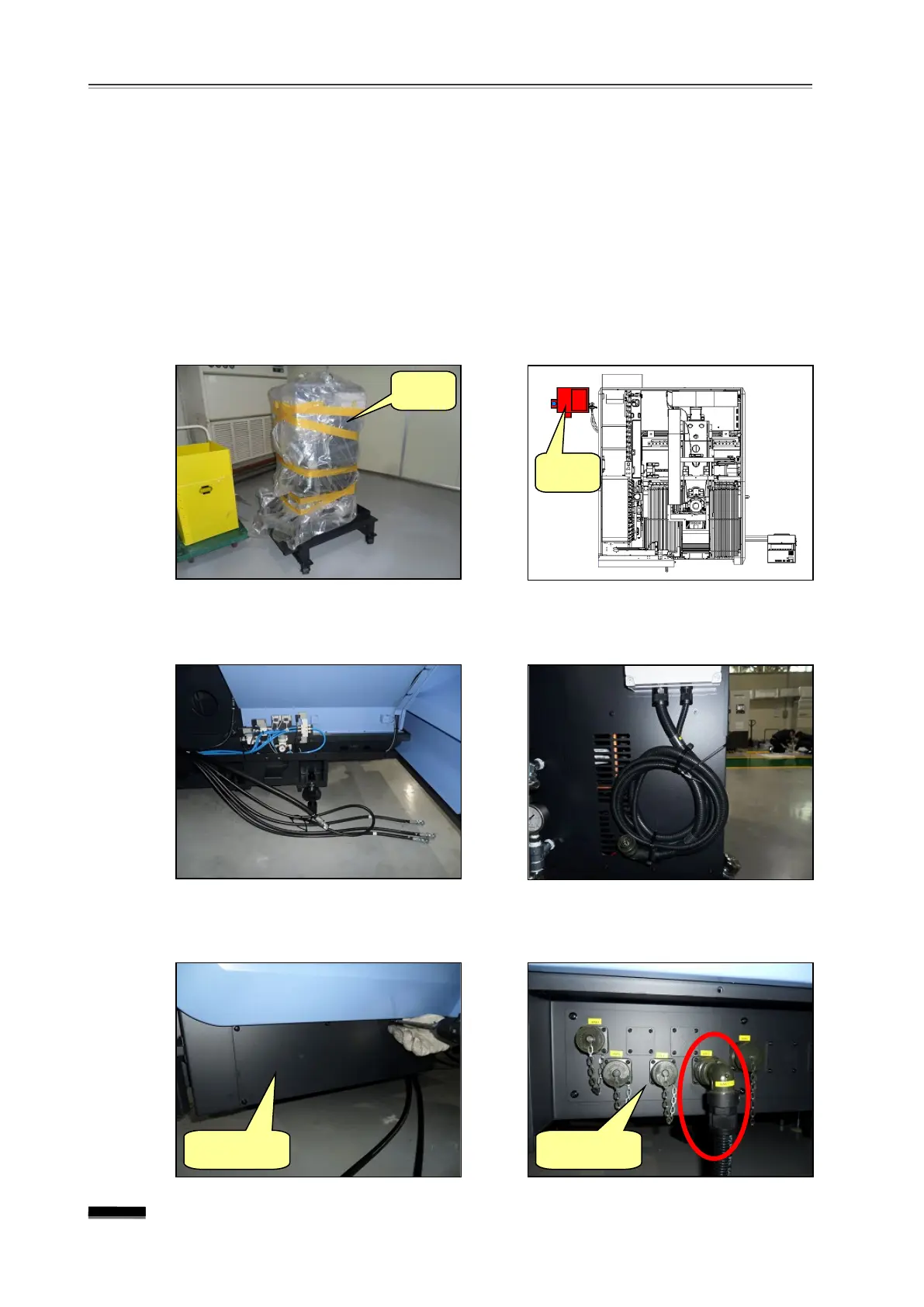

1) Placing the Oil Cooler to its original position
① Remove the protective vinyl cover attached to and bound around the Oil Cooler for
shipping, and move it to its original position behind the machine.
② Untie all the hoses tied to the machine unit to be connected to the TSC Coolant Tank
(Extra Tank) etc., and then untie the cable tied to the oil cooler.
③ Open the cover on the lower part behind the machine and insert the connector plug
WM0710, connected from the oil cooler, to
–XM71 from among the inner connect sockets.
To Next Page
