4.4.1 With drill jig / door side 1
NOTICE
The integrated mortise lock may be damaged or destroyed.
To avoid damage, remove the lock from the mortise before drilling.
ü Existing fitting is removed
ü Mortise lock is installed

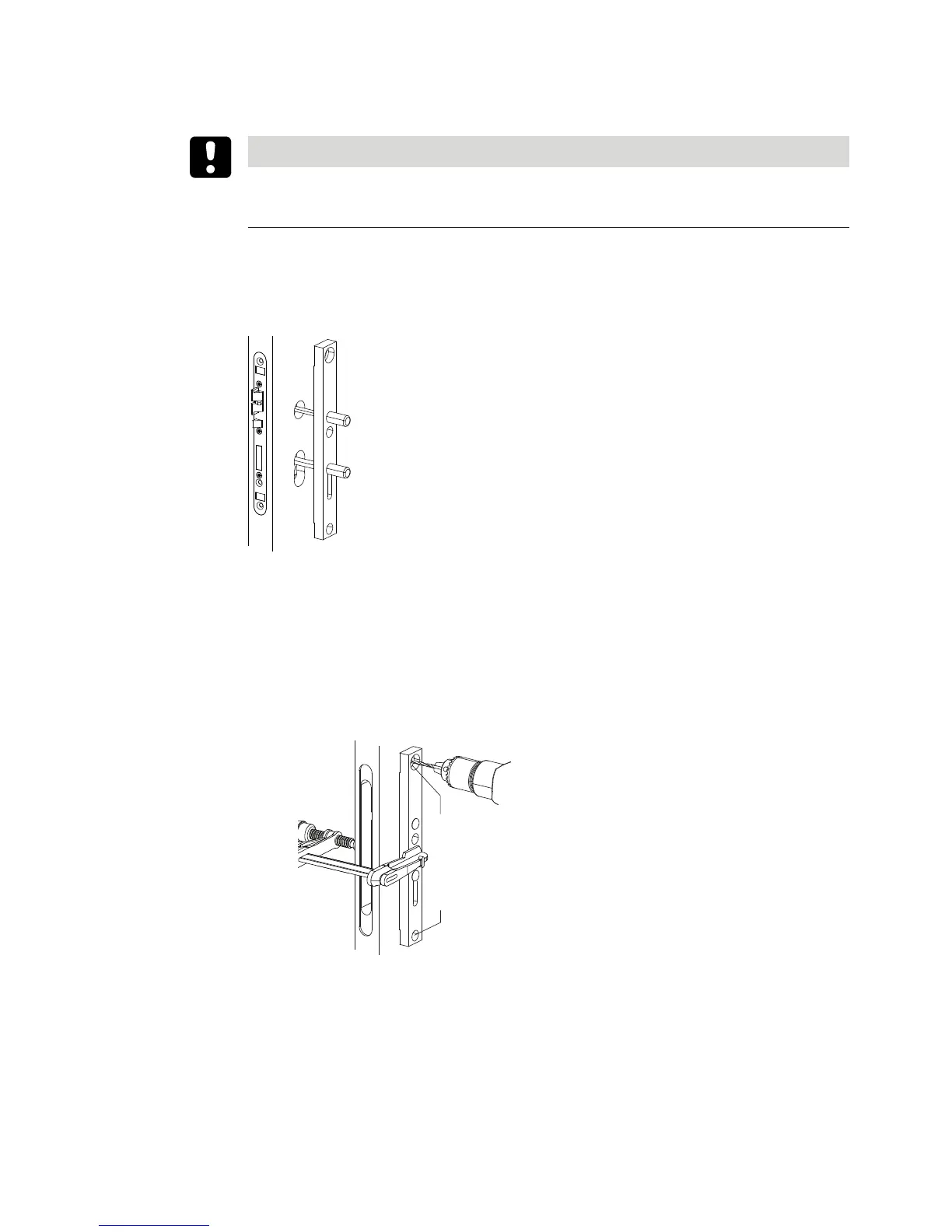

1. Position the drill jig with guide pin for cylinder (without mount) on the door from the out-
side.
2. Insert the pin for the spindle through the lock hub.
3. Fasten the drill jig to the door with a C-clamp.
ð The drill jig is connected securely to the door leaf.
4. Remove the guide pin for the cylinder and the pin for the spindle.
5. Remove the mortise lock.
6. Note: Do not drill through the door.
Drill the fastening hole Ø13mm up to the lock mortise.
ø9 mm
ø13 mm
7. Drill the fastening hole Ø9mm up to the lock mortise.
8. Remove the drill jig and C-clamp.
9. Clean the lock mortise.
10. Insert the mortise lock.
