4.5.3 Positioning the cylinder support

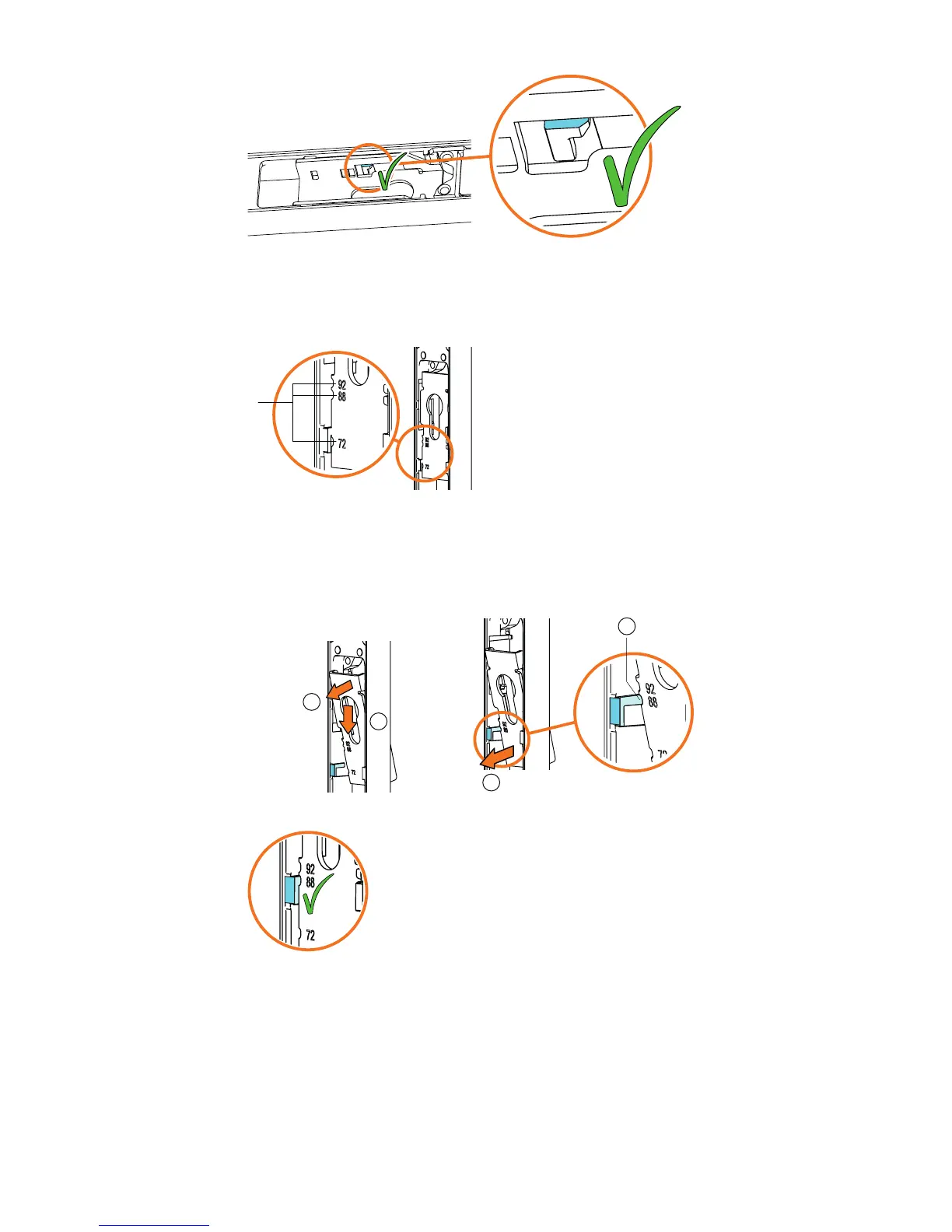

The cylinder support can be used for various hole spacings. The desired hole spacing is set with
the aid of the engraved hole spacing figures (1).
1
Procedure
• With one hand, hold the internal fitting and the cylinder support and rotate them so that
the marked hole spacings are visible.
• Lift the cylinder support slightly (1.), move it (2.) and insert it into the lug (blue) at the de-
sired position (3.).
2.
1.
3.
3.
Example for a hole spacing of 88 mm:
4.5.4 Fitting the cover
• Make sure that the cover of the antenna is not scratched by the subsequent actions.
• Align the cover (1.).
