Dormakaba c-lever pro - Dismantling; Disassembling the Internal Fitting

InstallationTechnical Manual
41HAC Standard fixing - 02/2018 dormakaba c-lever pro
4.14 Dismantling
4.14.1 Disassembling the internal fitting
NOTICE
Damage to the union nut
When loosening the union nut, make sure it does not touch the threaded pin.

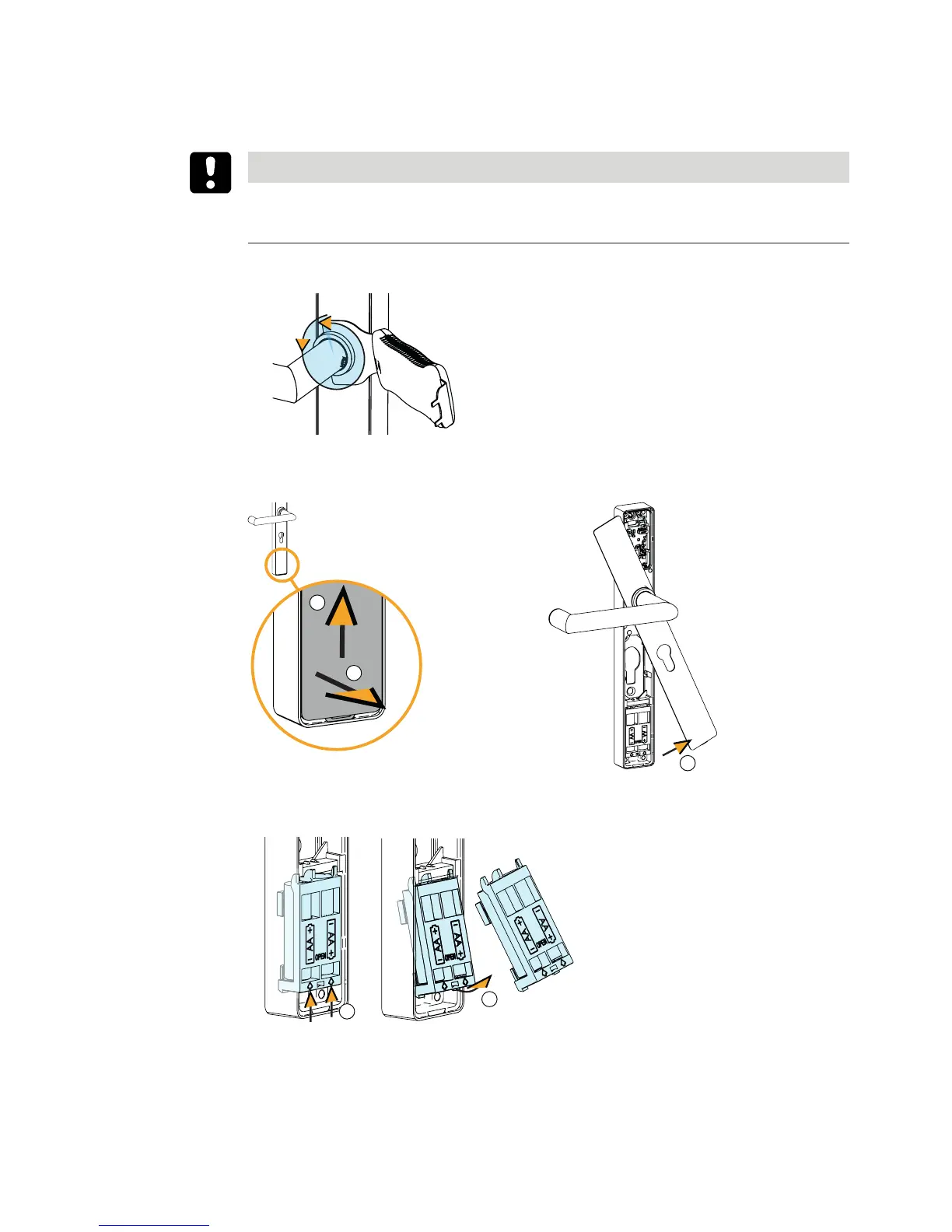

• Using the multitool, loosen the union nut from the internal fitting (>360°).
>360°
• With locking cylinder: If necessary, loosen the forend locking stud.
• Push the cover out of the groove (1), pull it forwards slightly (2) and turn (3).
1.
2.
3.
• Push the battery holder in the direction shown (1.) and at the same time swivel it for-
wards (2.).
1.
2.
• Unplug the antenna cable.
