43HAC Standard fixing - 02/2018 dormakaba c-lever pro

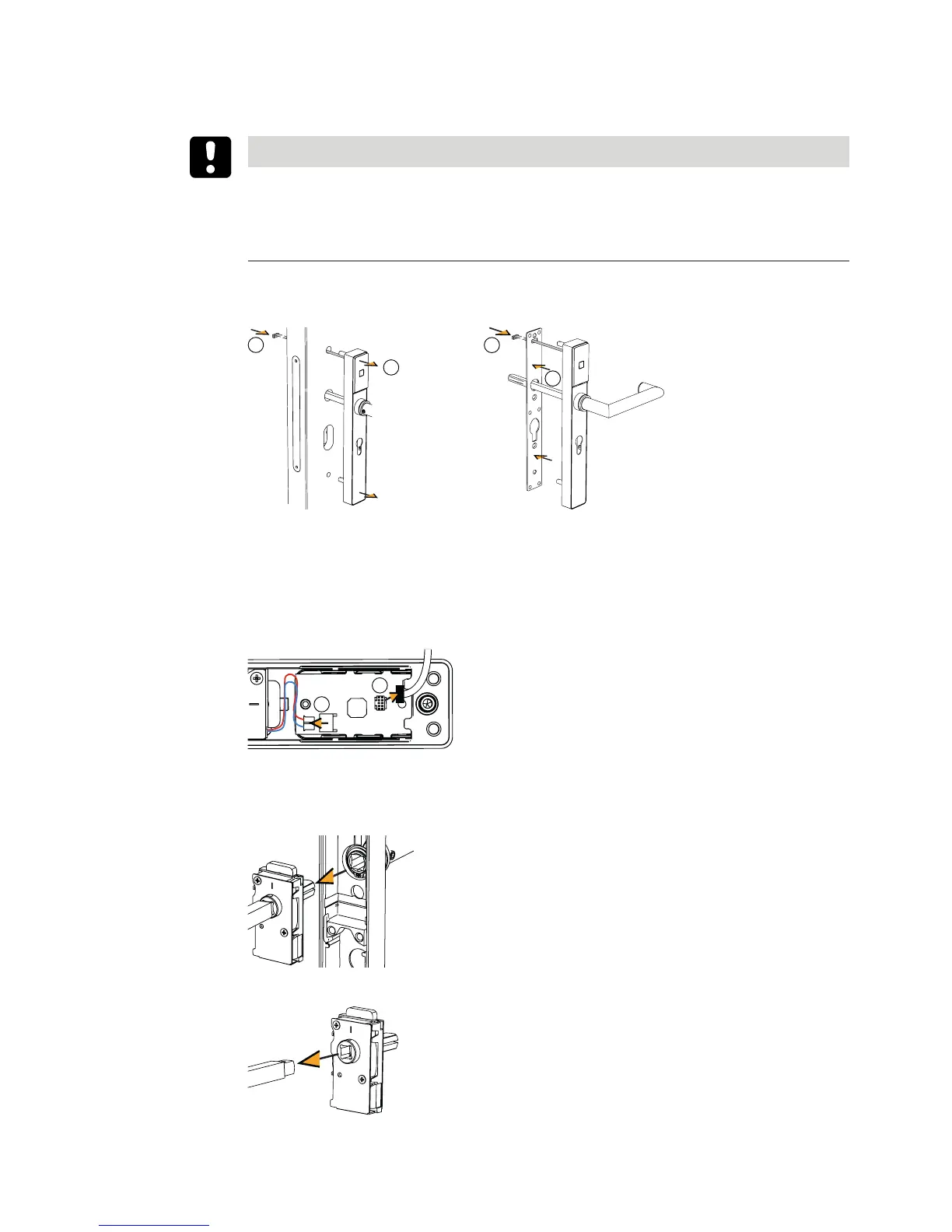

4.14.2 Disassembling the external fitting
NOTICE
There is a risk of crushing or shearing injuries from cables as a result of improper installation
or routing.
Ensure that the cables are routed in such a way that there is no risk of crushing or shearing in-
juries.
• Remove the external fitting from the door (1) and at the same time guide the antenna
cable through the fixing hole in the door (2).
2.
1.
4.
3.
• Remove the backplate (3).
• Pull the antenna cable out of the backplate (4).
Remove coupling
• Pull the coupling unit plug out of the white socket (1).
1.
2.
• Remove the antenna cable from the black socket (2).
• Loosen the threaded pin in the outside lever handle.
• Remove the coupling unit from the external fitting.
• Loosen the threaded pin and remove the spindle.
