Dormakaba c-lever pro User Manual

InstallationTechnical Manual
23HAC Standard fixing - 02/2018 dormakaba c-lever pro

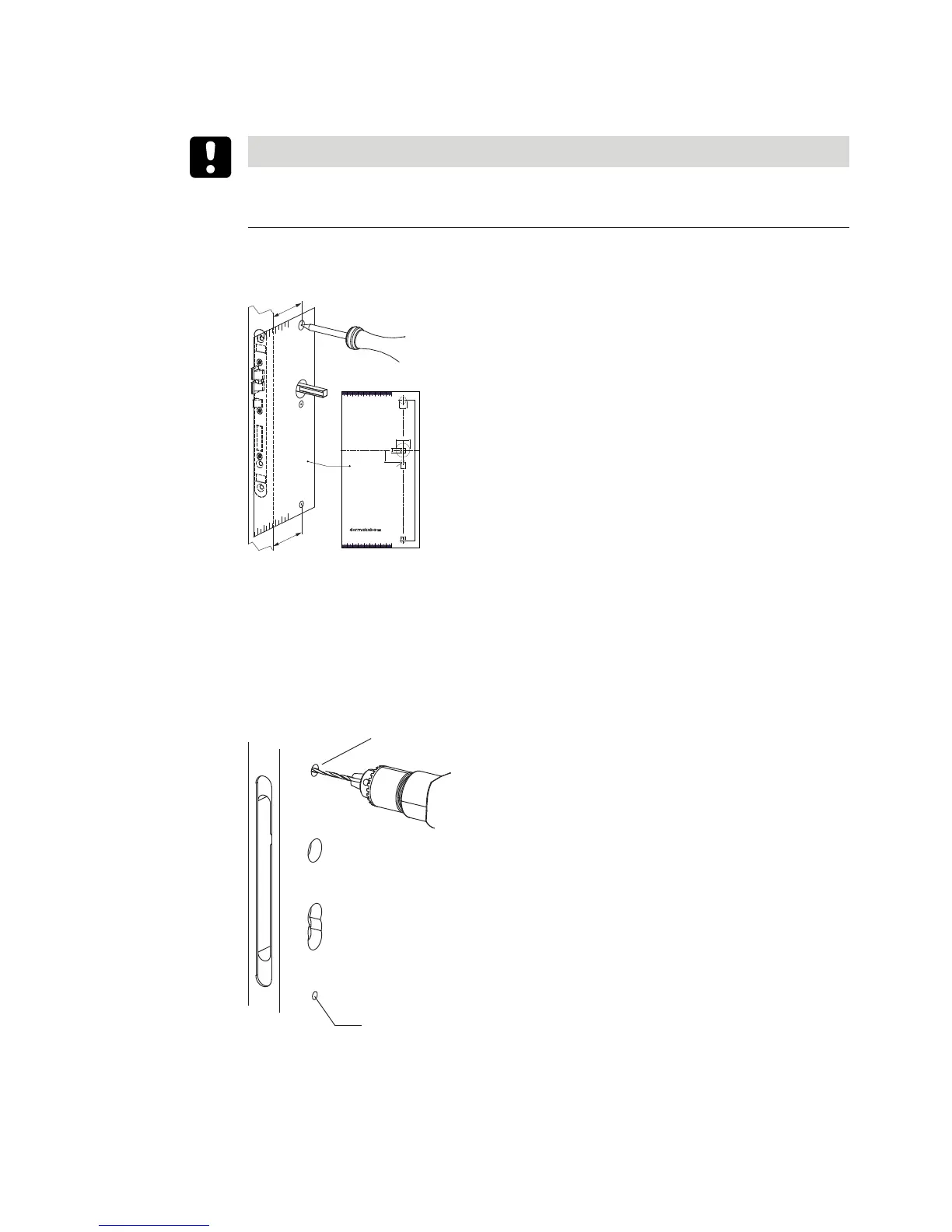

4.4.3 With drilling template / door side 1
NOTICE
The integrated mortise lock may be damaged or destroyed.
To avoid damage, remove the lock from the mortise before drilling.
ü Existing fitting removed
ü Mortise lock installed
A = B
A
B
Handle axis
c-lever pro
c-lever
Option ES1
21,5
162 89,5
8
ø25
[mm]
ø9
ø9
ø13
Bohrschablone c-lever pro, Version HAC 11.2016 1220020104
100 90 80 70 60 50 40 30 20
100 90 80 70 60 50 40 30 20
1. Place the spindle through the lock hub.
2. Position the drilling template over the spindle and align it parallel to the forend.
3. Mark the drill holes.
ð Drill holes for the fastening holes are marked on the door leaf.
4. Remove the mortise lock.
5. Note: Do not drill through the door.
Drill the fastening hole Ø13mm up to the lock mortise.
ø13 mm
ø9 mm
6. Drill the fastening hole Ø9mm up to the lock mortise.
7. Clean the lock mortise.
8. Insert the mortise lock.
