Installation Technical Manual
26 HAC Standard fixing - 02/2018dormakaba c-lever pro
4.5.2 Inserting the cylinder support
• Place the external fitting on a base.

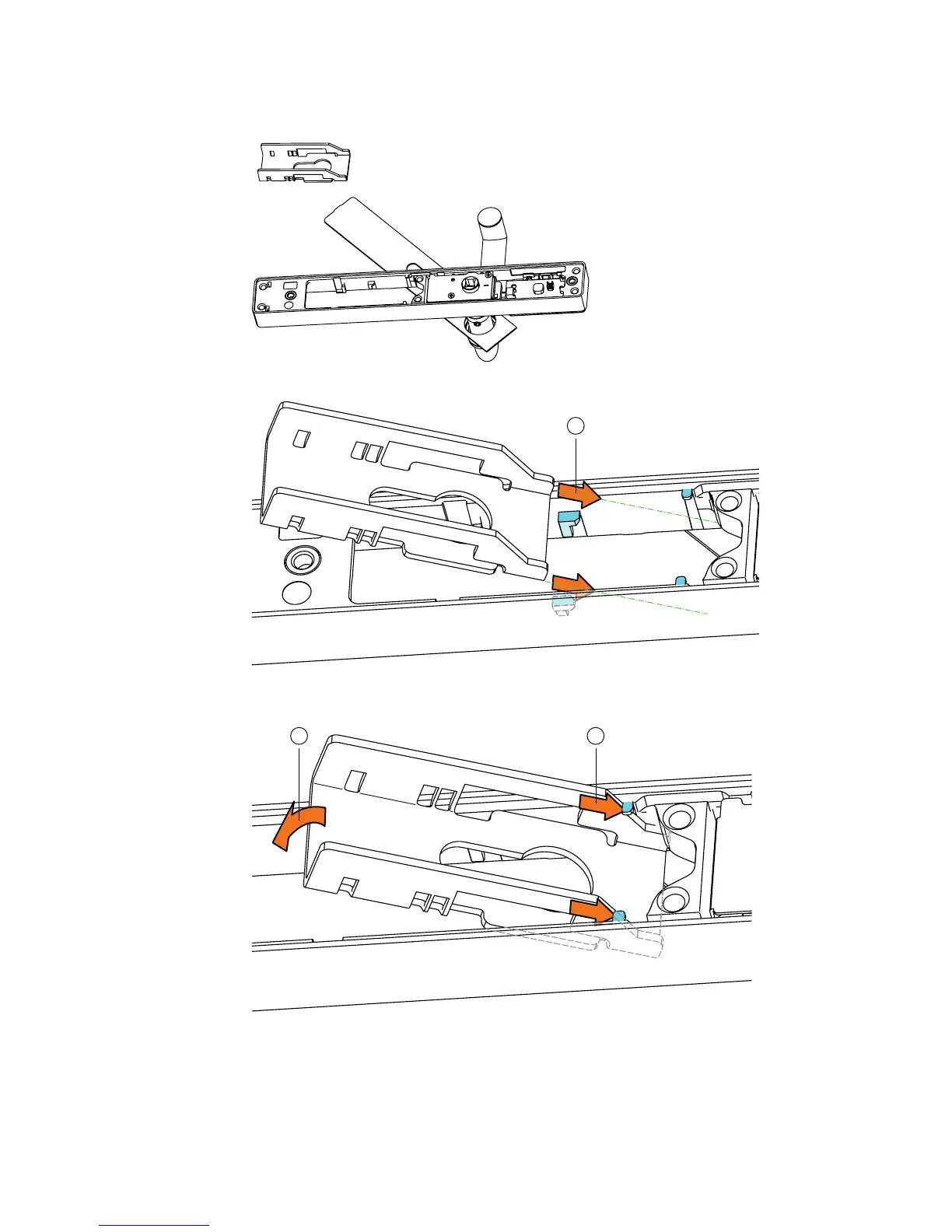

• Position the cylinder support in the frame as shown (1. - 2.).
1.
2.3.
• Swivel the cylinder support into the frame (3.).
