InstallationTechnical Manual
29HAC Standard fixing - 02/2018 dormakaba c-lever pro

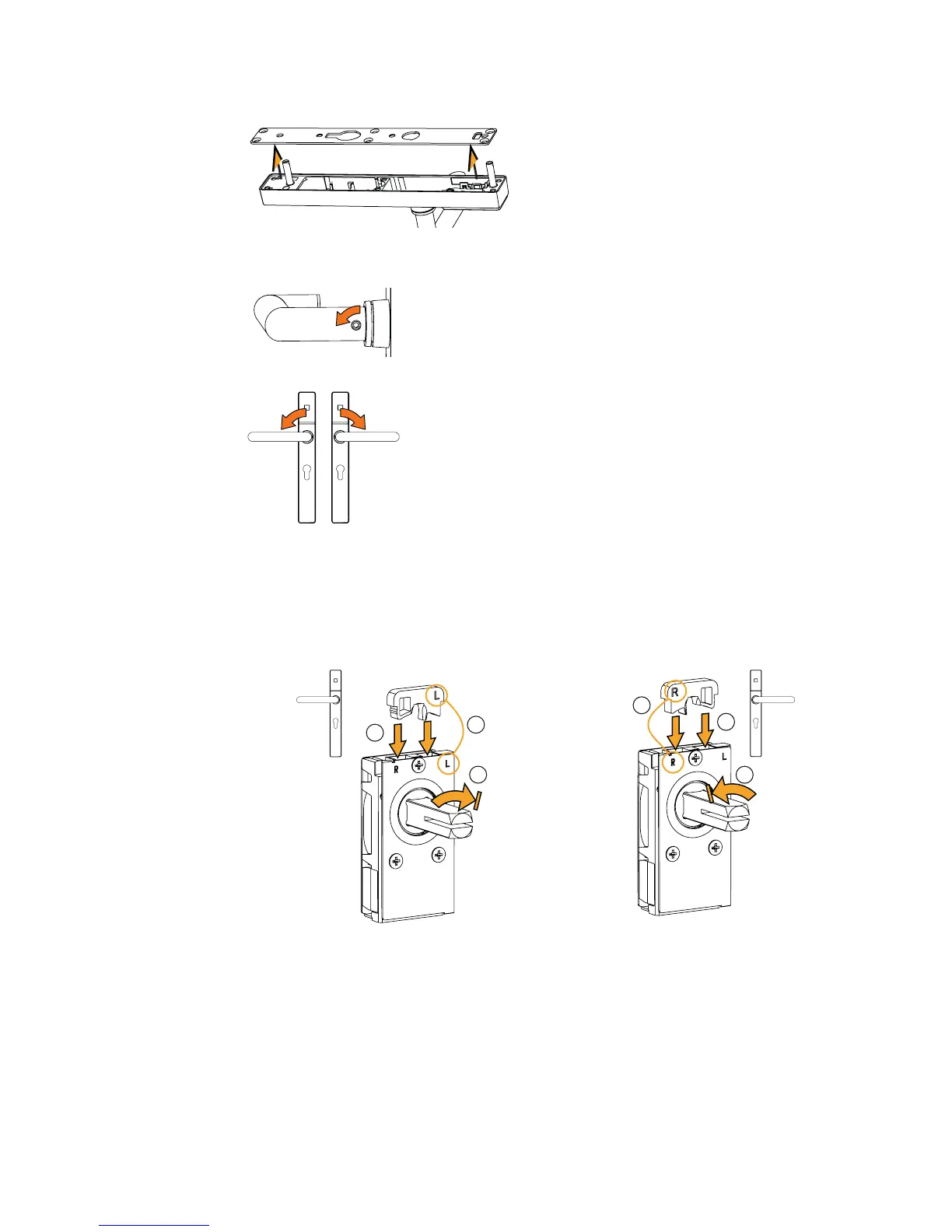

4.6 Preparing the external fitting
1. Remove the backplate.
2. Loosen the pin screw on the lever handle.
3. Align the lever handle.
4.7 Insert direction pin and spindle
Variant ‘Outside lever handle turns left’ Variant ‘Outside lever handle turns
right’
1.
2.
3.
1.
2.
3.
1. Align the direction pin as per the figure. 1. Align the direction pin as per the figure.
2. Turn the spindle to the right as far as it
will go and hold in this position.
2. Turn the spindle to the left as far as it
will go and hold in this position.
3. Insert the direction pin. 3. Insert the direction pin.
4. Align the spindle according to the lever
handle direction and insert it into the
coupling unit.
4. Align the spindle according to the lever
handle direction and insert it into the
coupling unit.
