InstallationTechnical Manual
37HAC Standard fixing - 02/2018 dormakaba c-lever pro

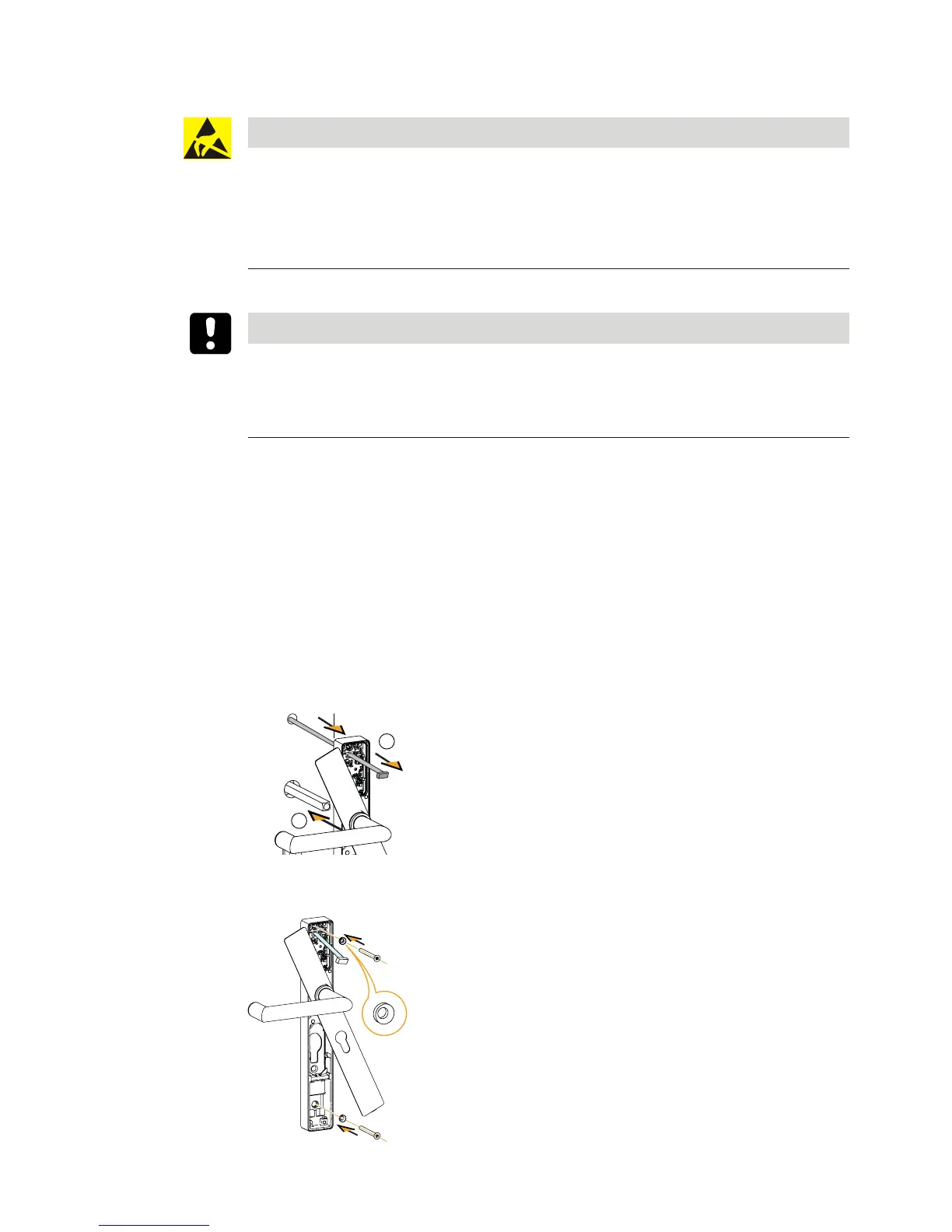

4.12 Installing the internal fitting
NOTICE
Danger of damage to electronic components from electrostatic discharge.
If electronic printed circuit boards and components are handled incorrectly, damage may oc-
cur which leads to their complete breakdown or sporadic faults.
When installing and repairing the product, the general ESD protective measures are to be
observed.
NOTICE
There is a risk of crushing or shearing injuries from cables as a result of improper installation
or routing.
Ensure that the cables are routed in such a way that there is no risk of crushing or shearing in-
juries.
4.12.1 c-lever standard variant
Prerequisites
The drill holes are present
The external fitting has been placed on the door
The antenna cable has been guided to the inside of the door
The mortise lock is installed
With locking cylinder: The locking cylinder is inserted into the mortise lock and the forend
locking stud is screwed in but has not yet been fully tightened.
Procedure
Guide the antenna cable through the internal fitting (1).
1.
2.
Place the internal fitting onto the spindle (and the locking cylinder) (2).
Place the special washers onto the screws.
Align the external fitting and screw it in place (maximum torque: 2.5±0.5 Nm).
