• Insert the antenna cable.

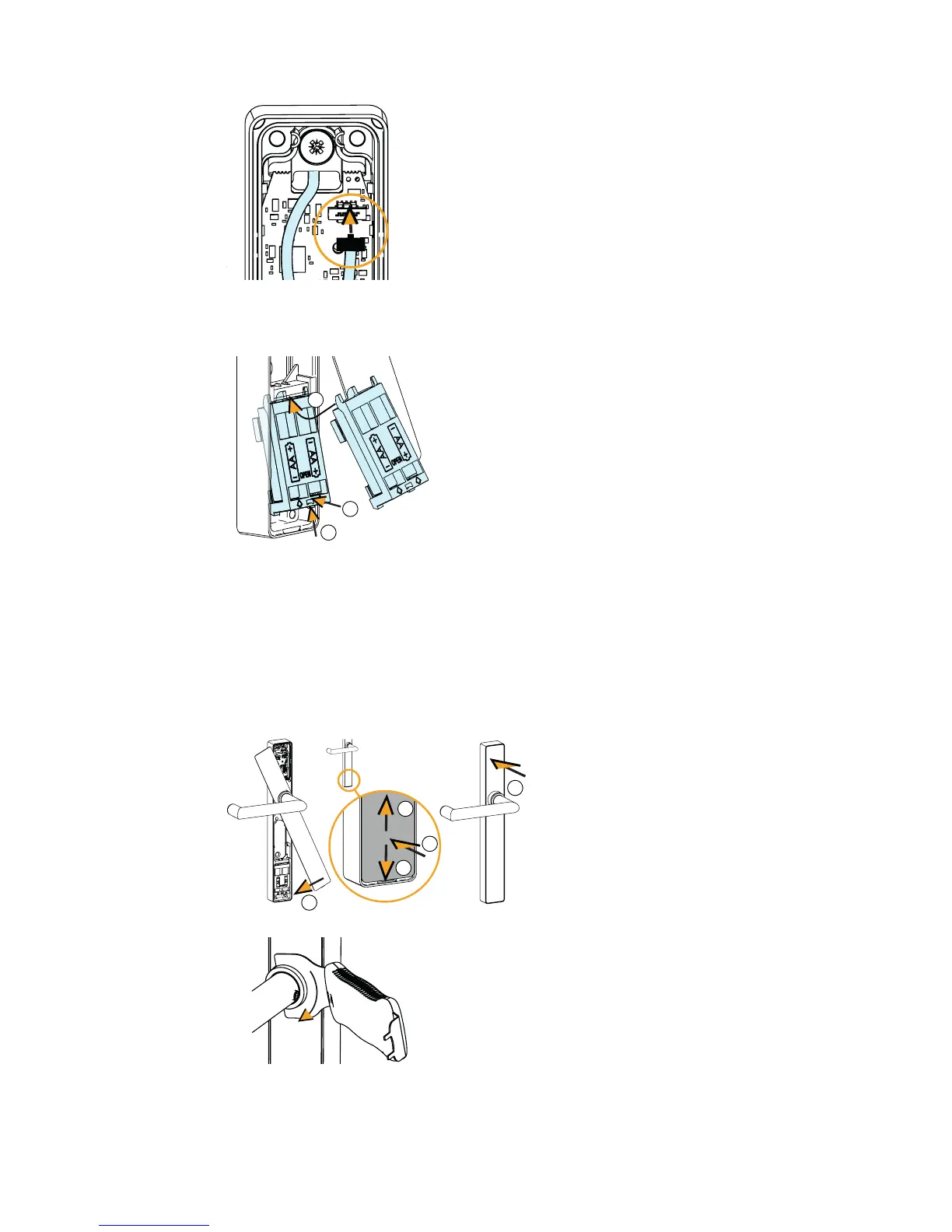

Inserting the battery holder
• Insert the battery holder (1), push it towards the lever handle (2) and at the same time
swivel it into the frame (3).
1.
2.
3.
• If present: Remove the contact protection film.
Installing the cover
• Align the cover (1).
• Move the cover in the sequence shown (2–3) and insert it into the groove (4).
-> The cover protrudes on the side opposite the groove.
• Press the protruding cover against the frame (5) and hold down.
1.
2.
3.
4.
5.
• Tighten the union nut using the multitool.
• Let go of the cover.
• Tighten the threaded pin on the lever handle. Option TouchGo: Maximum torque: 1.0 Nm
• Tighten the forend locking stud.
• Carry out a function check; see Operation [}6].
