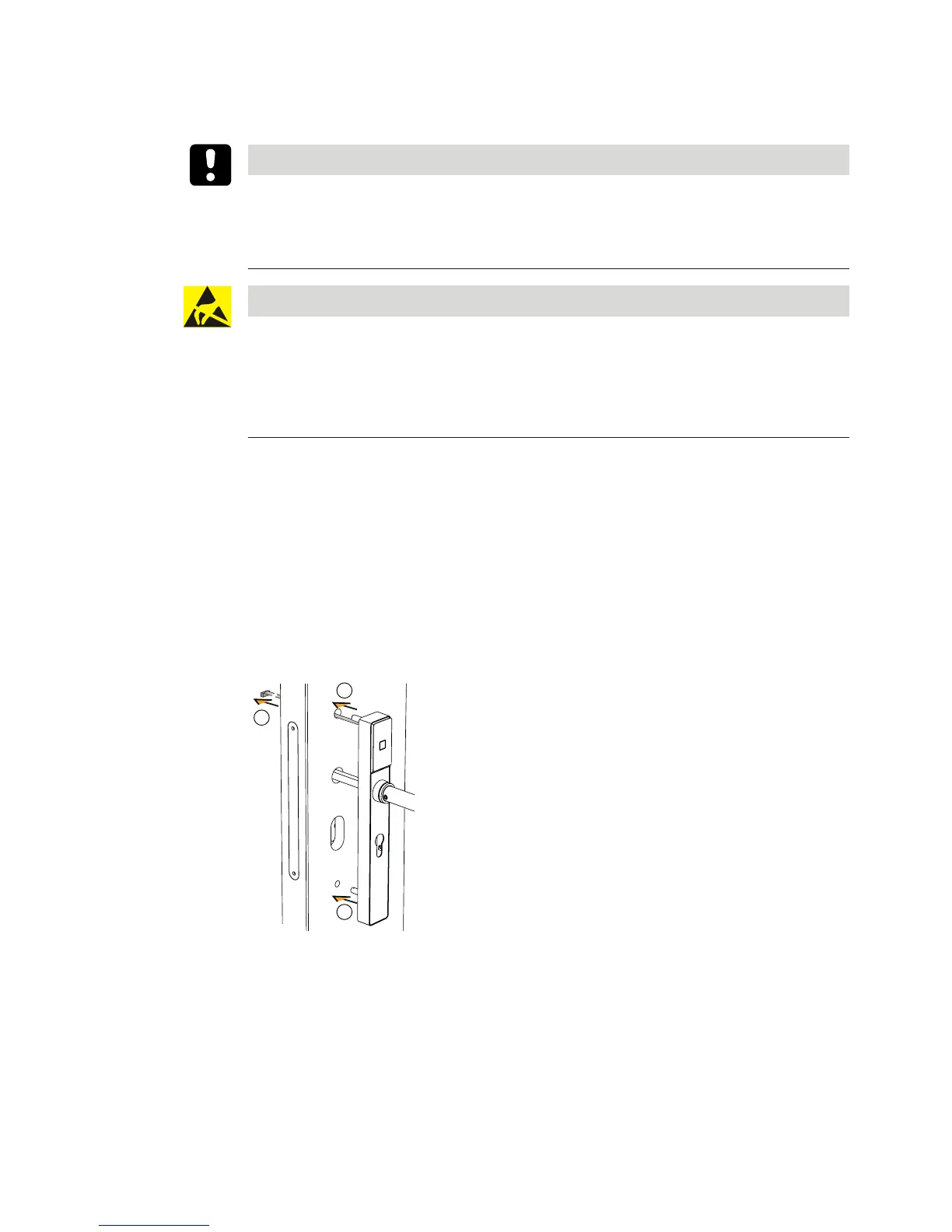

33HAC Standard fixing - 02/2018 dormakaba c-lever pro
4.9 Installing the external fitting
NOTICE
There is a risk of crushing or shearing injuries from cables as a result of improper installation
or routing.
Ensure that the cables are routed in such a way that there is no risk of crushing or shearing in-
juries.
NOTICE
Danger of damage to electronic components from electrostatic discharge.
If electronic printed circuit boards and components are handled incorrectly, damage may oc-
cur which leads to their complete breakdown or sporadic faults.
• When installing and repairing the product, the general ESD protective measures are to be
observed.
4.9.1 Standard fixing
HAC version (lever handle above the cylinder)
Requirements
• The existing fitting is removed
• The drill holes are present
• The mortise lock is installed
• If present, the locking cylinder is inserted into the mortise lock and the forend locking stud
is screwed in, but has not yet been fully tightened
Procedure
1.
2.
2.
• Guide the antenna cable through the fixing hole in the door (1.).
• Place the external fitting on the outside of the door (2.).
-> The external fitting is inserted into the door but not yet secured.
